This is the switch for controlling MPG dry run. The MPG dry run will be activated by pressing this key, and it will be turned
off by pressing this key again.
After the system enters its cycle start status, the program can be controlled by the hand wheel to execute its operation,
and program coordinates as well as servo axis will change accordingly. The clockwise hand wheel program will be
executed forward, and faster hand wheel rotation will lead to faster feeding; however, the hand wheel's maximum
rotational speed will not exceed the value in the program's feed command. The program will be stopped when the hand
wheel is stopped.

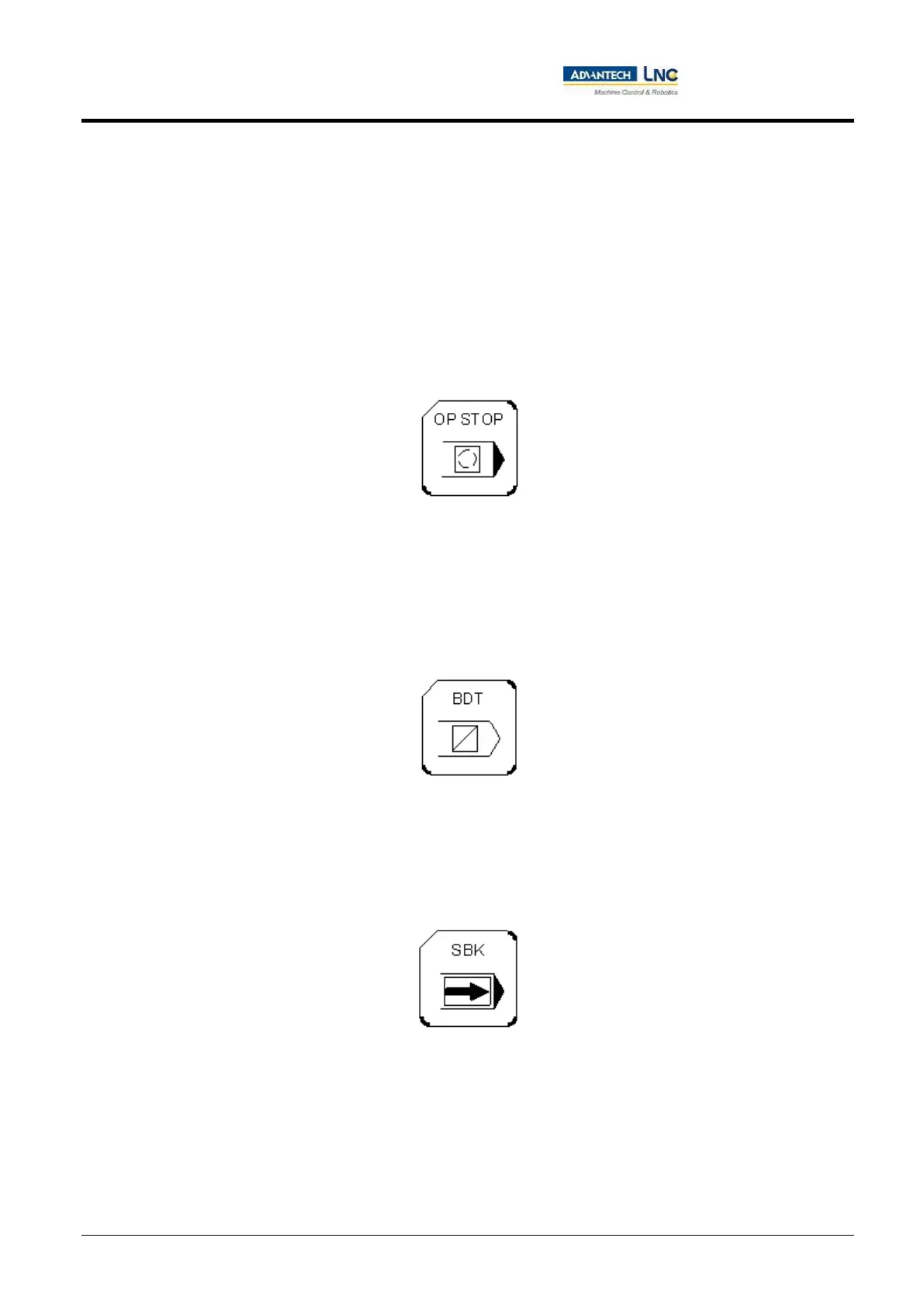

2. OP STOP (optional pause)
This is the switch for controlling optional pause. Optional pause will be activated by pressing this key, and it will be
stopped by pressing it again.
Every time program execution has reached M01, it will be paused, and users must press the program start 〔CYCLE START〕
key in order to resume program execution.
3. BDT (optional skip)
This is the switch for controlling optional skip. Optional skip will be activated by pressing this key, and it will be stopped by
pressing it again.
Program blocks start with the symbol " / " will be skipped during execution.
4. SBK (single block execution)
This is the switch for controlling single block execution. Single block execution will be started by pressing this key, and it
will be terminated by pressing this key again.
When the single block execution switch is ON, program operation will be based on executing single blocks without
continuous action, and the operation of each block must be executed by pressing the program start 〔CYCLE START〕 key.
