GPIB OPERATION

3-2-47

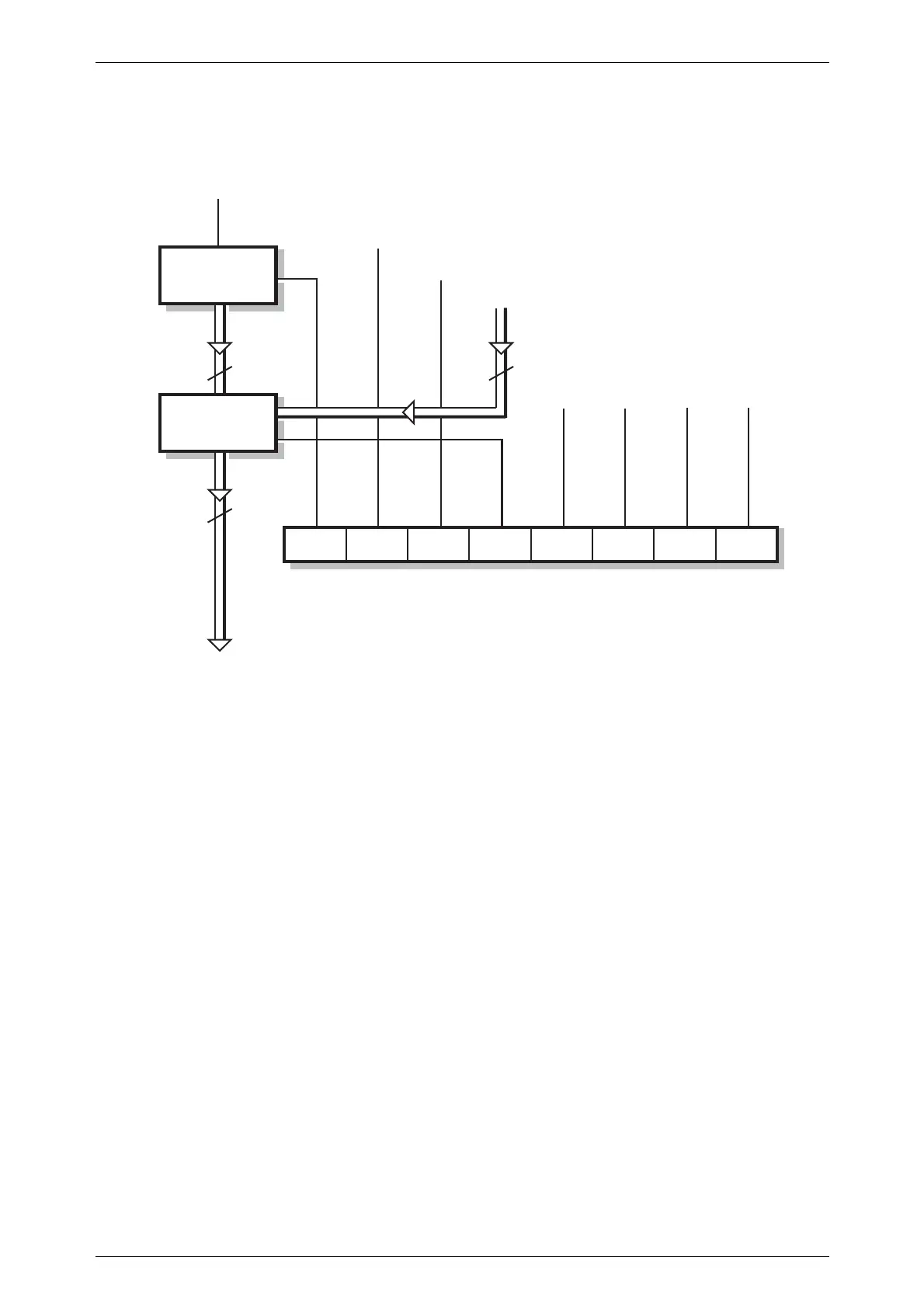

QUEUE FLAG DETAILS

The <mav> status bit is set when one or more bytes are available to be read from the

Output Queue.

The <erb> status bit is set when one or more errors are present in the Error Queue. The

ERROR? query will place a nr1 response message in the Output Queue representing the Error at

the head of the queue, if the queue is empty then this message will be 0.

C0075

ddd dddd d

375 1264 0

Status Byte Register

➤

Error

Queue

Output

Queue

Device Dependant Errors

Status Byte & Enable Register non-zero

From Standard Event Registers

Response Message

Input from all

Error Conditions

Response

ERROR?

Data from Output Queue

<erb>

<mss> <mav> <hsb> <ssb><csb> -

<esb>
