Aeroflex 2030 Series User Manual

OPERATION
3-1-37
Sweep control
Starting the sweep
From the sweep parameters menu, press [Start Sweep]. The single sweep status line
display changes from WAITING FOR TRIGGER to SWEEPING and a solid bar increments to
show the sweep progression, see Fig. 3-1-25.

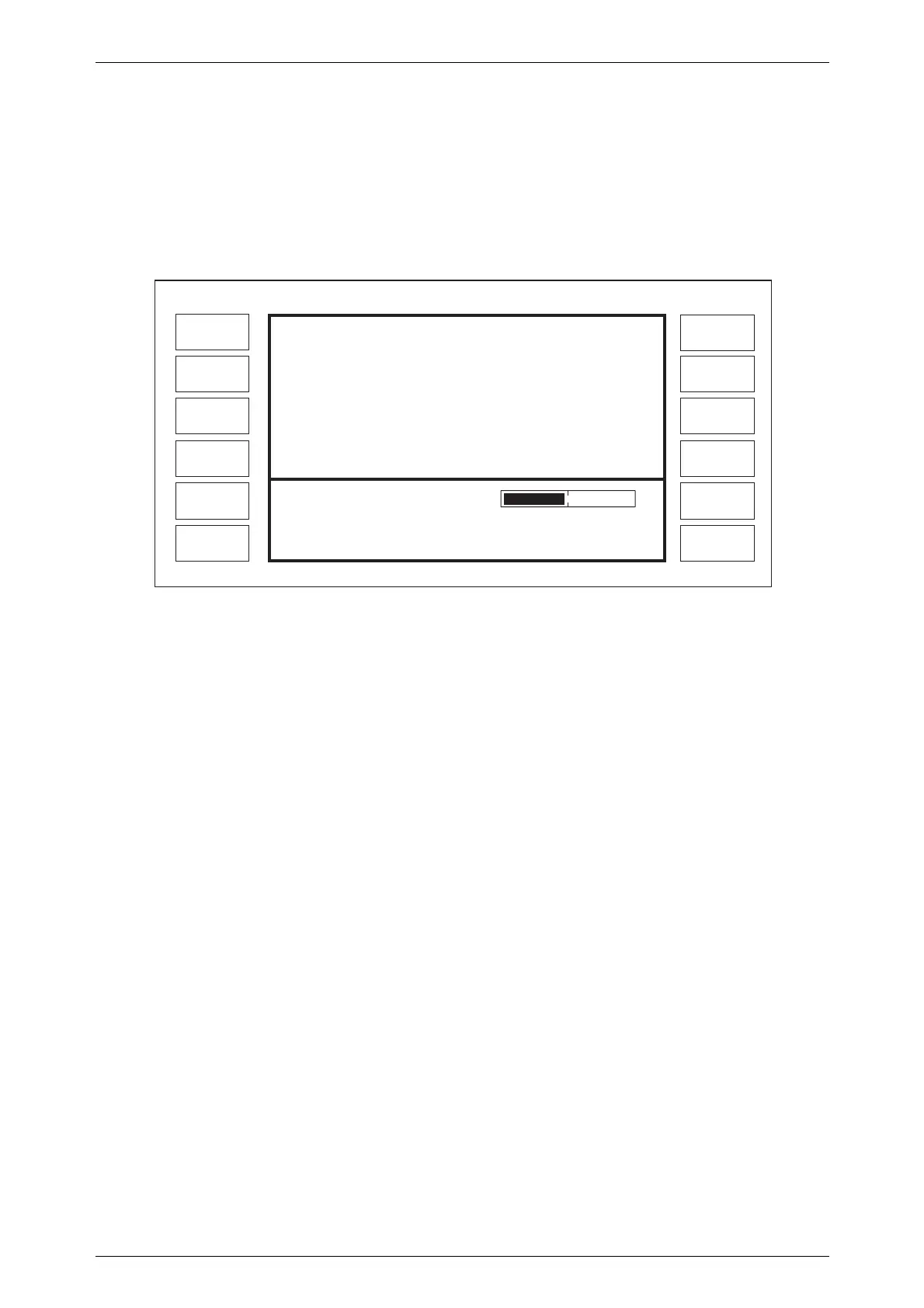

Fig. 3-1-25 Sweep in progress
Note...
When the sweep is in progress, all the hard keys are disabled and [Stop Sweep] and
[Abort Sweep] soft keys are active.
Stopping the sweep
Press [Stop Sweep]. The sweep stops and the menu presents the opportunity to press:
[Reset Sweep] to change the sweep parameters, or
[Continue Sweep] to continue the sweep, or
[Transfer] to transfer the current value of the swept parameter as the last keyed in value
in the [SIG GEN] or [LF]([LF Gen]) mode, see Figs. 3-1-26 and 3-1-27. When the sweep is in
the paused state, the [⇑] and[ ⇓] keys can be used to step the parameter up or down. The sweep
can then be continued by pressing [Continue Sweep].
LOCAL
Stop
Sweep
Abort
Sweep
Level Start:
Level Stop:
Sweep Status: SWEEPING
Sweep Mode: INTERNAL SINGLE
Sweep Type: RF LEVEL
Number of:
Steps
Step Time:
dBm
dBm
ms
-144.0
+13.0
1000 -----
50
C1900
