ACCEPTANCE TESTING
5-1-A-2
MODULATION OSCILLATORS
The following tests are for a 2030, 2031 or 2032 with the 2nd modulation oscillator fitted.
SPECIFICATION
Frequency range: 0.1 Hz to 500 kHz
Accuracy: Equal to the frequency standard accuracy
Resolution: 0.1 Hz
Distortion: Less than 0.1% THD at frequencies up to 20 kHz sine wave mode
TEST EQUIPMENT
Description Minimum specification Example
Frequency counter 10 Hz to 500 kHz ETP 535B or
IFR 2440
Audio analyzer Capable of measuring down to 0.03%
THD from 100 Hz to 20 kHz
HP 8903B
Rhode & Schwarz
UPA 3
TEST PROCEDURES
Modulation oscillator frequencies

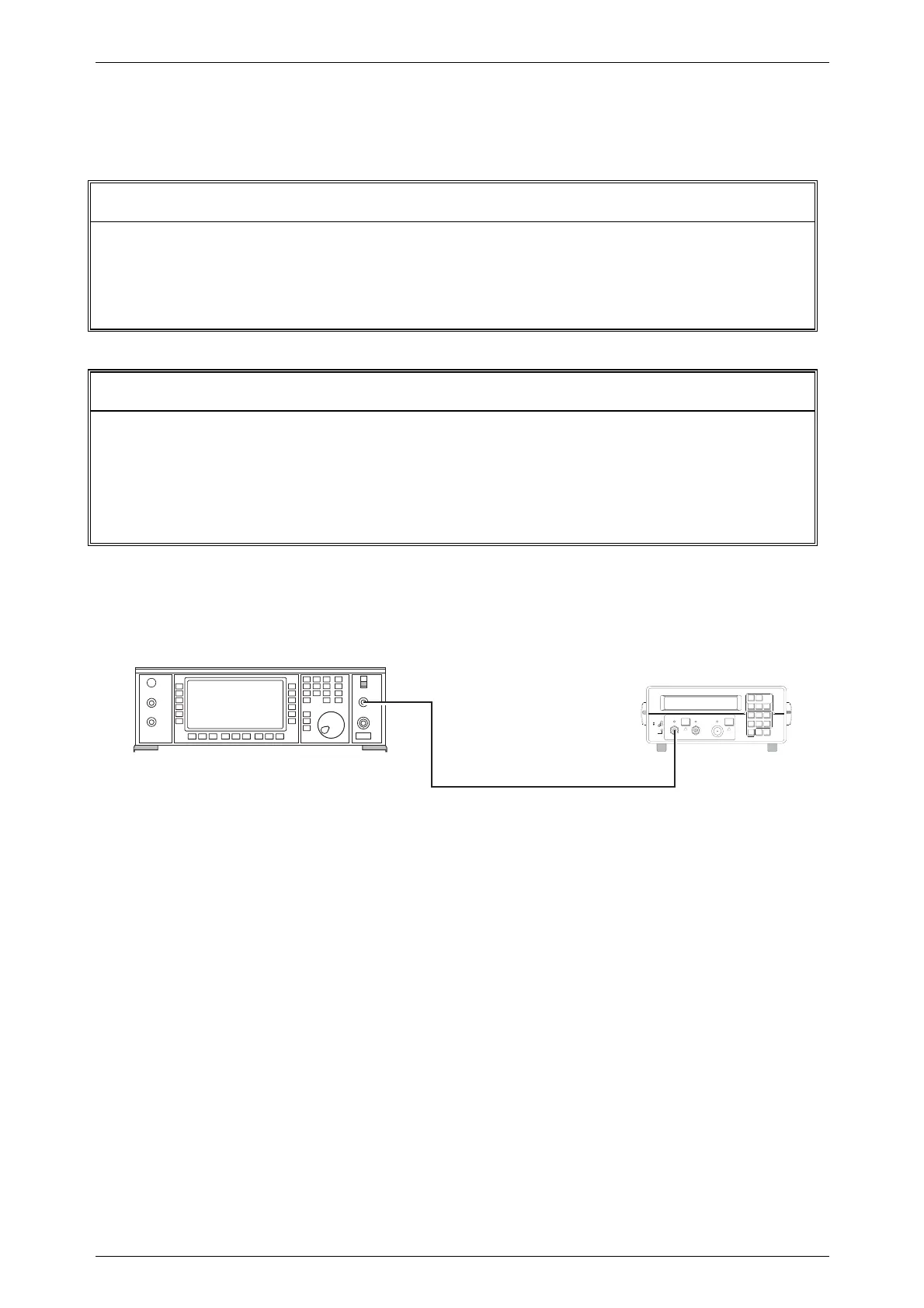

Fig. 5-1-A-1 Modulation oscillator frequencies test set-up
(1) Connect the test equipment as shown in Fig. 5-1-A-1.
(2) To enable both the modulation oscillators on the UUT, it will be necessary to
carry out the following procedure:
Press the following sequence of keys:
[UTIL] [Mod'n Mode] [Comp] [SIG GEN] [Source Freq:]
The frequencies of the first modulation oscillator may now be entered.
C0218
LF
OUTPUT
UUT
➤
2440
Counter
A INPUT
! !
To Next Page
