ACCEPTANCE TESTING

5-1-10

Modulation oscillator distortion

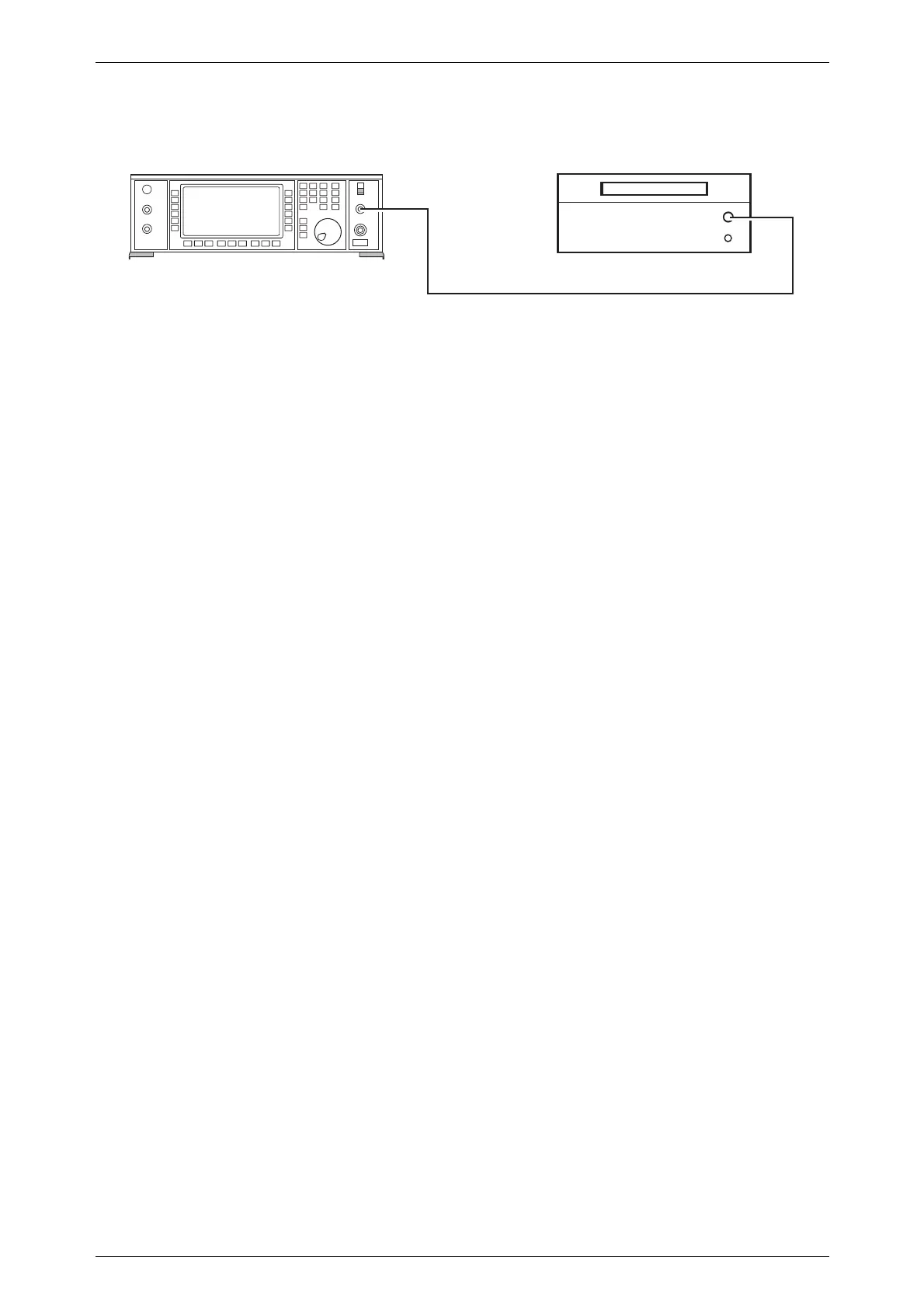

Fig. 5-1-5 Modulation oscillator distortion test set-up

(1) Connect the test equipment as shown in Fig. 5-1-5.

(2) Set the UUT to [Source Freq: F4] 100 Hz.

(3) Check that the distortion measured on the audio analyzer at the frequencies

indicated in Table 5-1-6 is less than 0.1%.

Table 5-1-6 Distortion frequency settings

Modulation oscillator frequencies

100 Hz 10 kHz

1 kHz 20 kHz

C0219

OUTPUT

UUT Audio Analyzer

INPUT

➤
