OPERATION
3-1-6
REAR PANEL
The following facilities are available on the rear panel, see Fig. 3-1-2.

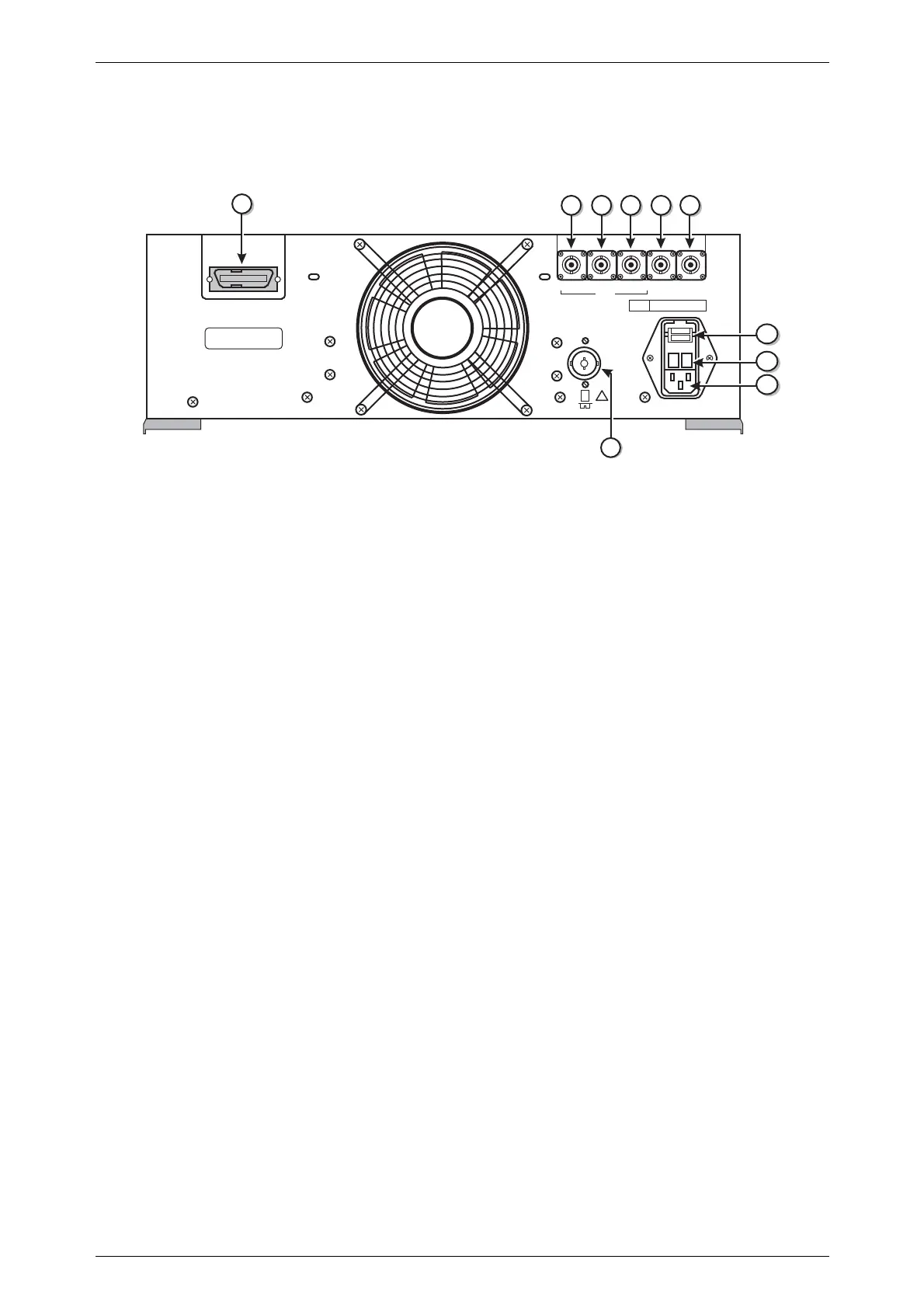

Fig. 3-1-2 2031 rear panel
(1) GPIB 24 pin socket accepts standard IEEE connector to allow remote
control of the instrument.
(2) SWEEP MARKER
BNC socket supplies sweep marker.
(3) SWEEP RAMP
BNC socket provides a ramp output at 0 to 10 V peak to peak.
(4) SWEEP TRIGGER
BNC socket provides access for a trigger input.
(5) WIDE BAND
FM IN
BNC socket accepts a wide bandwidth FM signal into 50 Ω with
a typical bandwidth of 10 MHz.
(6) FREQ STD
IN/OUT
BNC socket for standard frequencies at 1, 5 or 10 MHz with a
nominal 2 V pk-pk level into 50 Ω.
(7) VOLTAGE
SELECTOR
Removable cover reveals barrel which can be rotated to select the
required voltage range.
(8) FUSES
AC fuses rated at TT1.6AL250V for the 100 to 120 V range and
TT1AL250V for the 220 to 240 V range.
(9) AC SUPPLY
INPUT
3 pin plug integral with voltage selector and fuse holders. Mates
with supply lead socket.
(10) BATTERY
HOLDER
Houses battery for real time clock.
C5712
10
3562
1
4
îî
220Vac
240Vac
~
~
9
8
7
+
_
FUSE
RATING
100/120V~ TT1.6AL250V
220/240V~ TT1AL250V
MARKER RAMP
SWEEP
TRIGGER WIDE BAND
FM IN
FREQ STD
IN/OUT
POWER SUPPLY
100/120/220/240V~
50-400Hz
180VA MAX
GPIB
SH1 AH1 SR1 RL1 DC1 DT1
T6 L4 E2 C0 PP0
------------
------------
!
