OPTION 009 PULSE GENERATOR
Annex-D-8

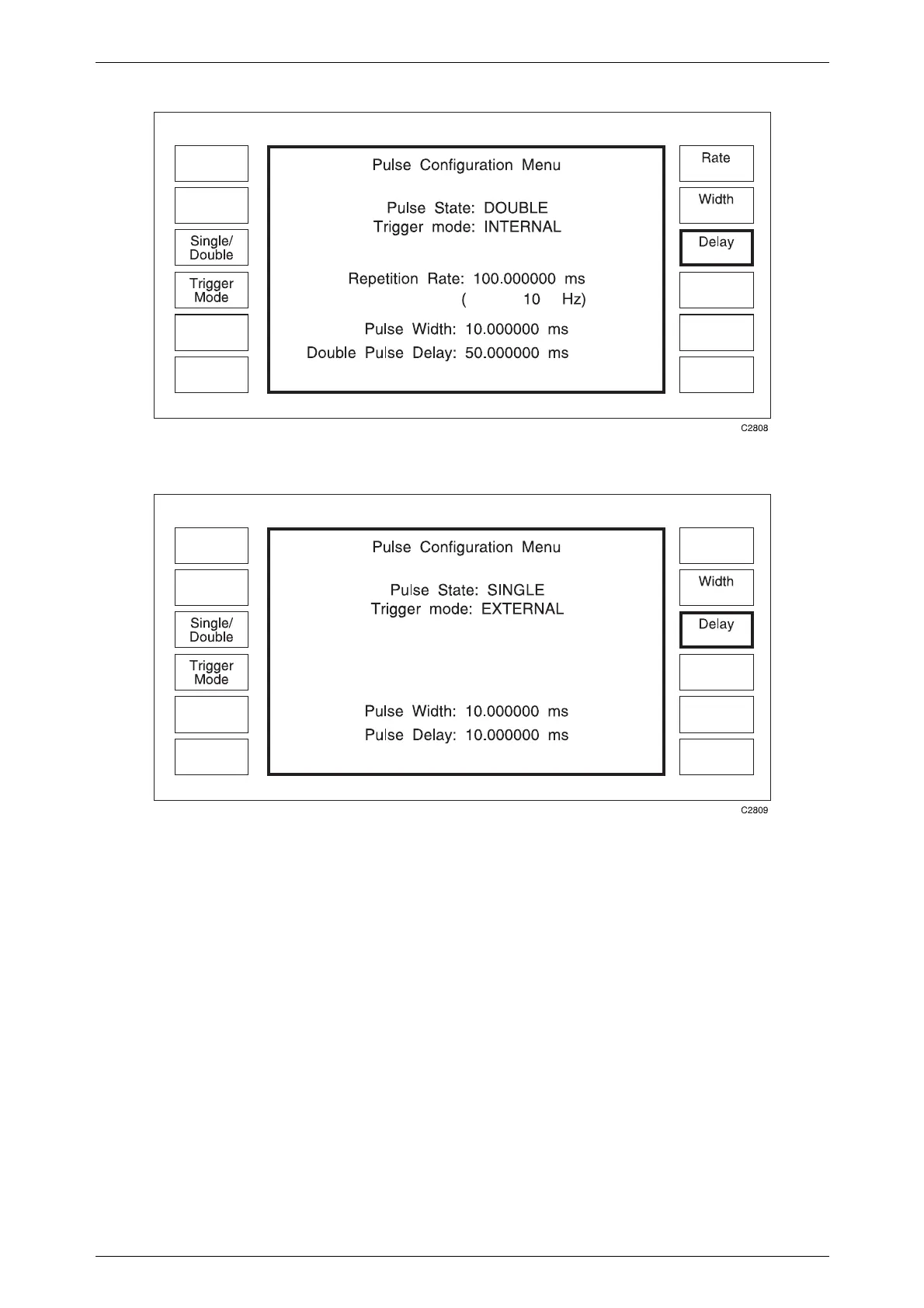

Fig. D-11 Pulse configuration menu - double pulse
Fig. D-12 Pulse configuration menu - external trigger
There are a number of conditions under which it is not possible to generate a valid
waveform. For example, if the repetition rate is less than the sum of the pulse delay and pulse
width or the double pulse delay is less than the pulse width. Under such conditions ERROR 14:
Pulse Profile Not Valid is displayed and the VIDEO output disabled until a valid profile is
entered.
