GPS
GPS INFORMATION - GENERAL TAB

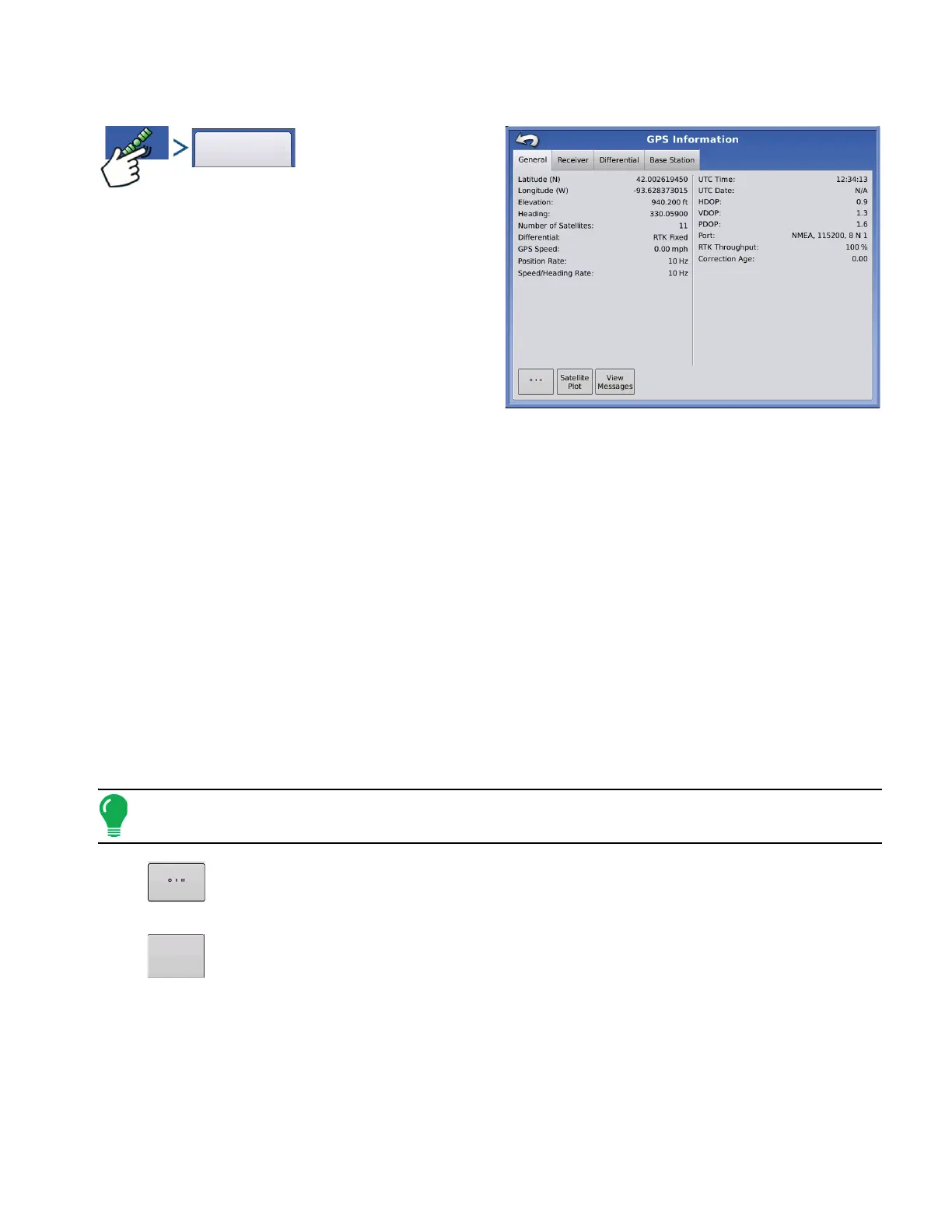

Press: GPS (satellite) button > General tab
• Latitude, Longitude, Elevation
Displays current position (in longitude and latitude)
and elevation.
• Heading
Displays degree heading of travel.
• Number of Satellites
• Differential
- No Diff: Indicates the receiver is not receiving a differential GPS signal.
- Diff On: Indicates the receiver is receiving a differential GPS signal.
- GLIDE (GPS 6000/GPS 6500 Only)
- WAAS/EGNOS
- TerraStar-D (GPS 6500 Only)
- RTK Fixed: The receiver is receiving a valid RTK differential source.
- RTK Float: The receiver is receiving information from the Base Station, but the signal is not strong
enough for an RTK fix.
• GPS Speed
• Position Rate
The frequency that the receiver is sending the display your position in longitude and latitude (GGA). For
example, at 5 Hz the display would be receiving a position message 5 times every second.
• Speed/Heading Rate:
The frequency that the receiver is sending the display your ground speed and heading (VTG)
Note: Position Rate and Speed/Heading Rate should both be set at a minimum of 5 Hz for guidance or
steering.
• Change Longitude/Latitude Format
Pressing this button changes the Longitude/Latitude format. These can either be shown in
Degrees, Minutes and Seconds; or Decimal Degrees.
•
View Messages button
- see
“GPS Messages” on page 74
.
• UTC Time
UTC is an acronym for Coordinated Universal Time, a high-precision atomic time standard that defines local
time throughout the world. Different versions of universal time use atomic clocks to correct for irregularities
in the Earth's rotation and orbit. UTC is used in navigation, astronomy, aviation, Internet broadcasts, and
amateur radio. If you are receiving information from the satellite, then the UTC Time should automatically
update.
