90 Firmware Version 7.2
Press: Map button > Guidance tab (in Mapping Toolbox) > New Pattern button > Identical Curve Pattern
Selection
System defaults pattern type to last used. Press the pattern icon to select a different pattern.
- Implement Width (from Implement Setup)
- Guidance Width input box
- Enable Tramlines checkbox
Press . You will automatically return to the Map screen.
return to the Map screen.

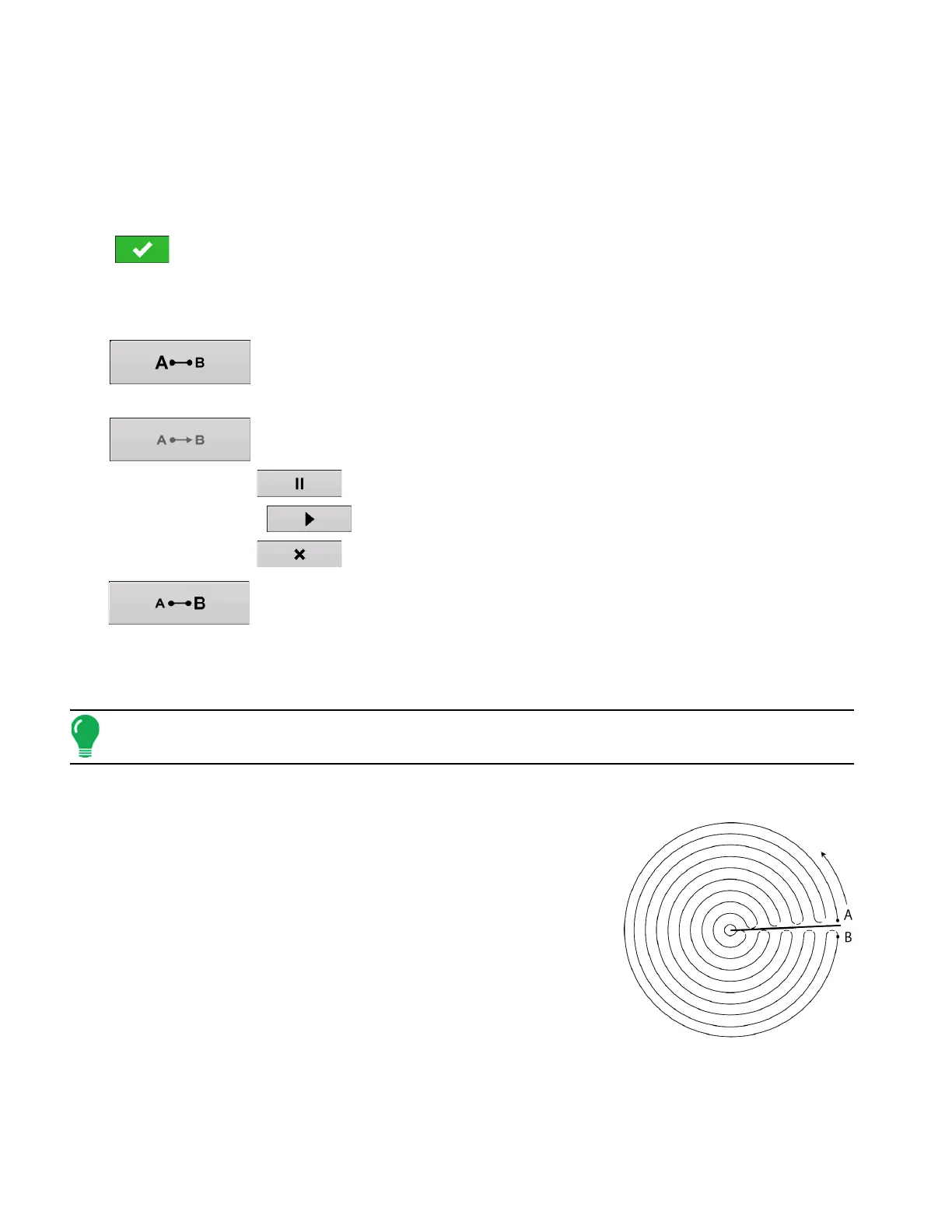

Create AB line using 2 points
• Press to mark point A. A green ball appears on the map screen where point was
placed.
• Button is grayed out until you drive a minimum of 100 feet.
- Pause - Press to pause path during path creation
- Resume - Press to resume path during path creation
- Cancel - Press to cancel path during path creation
• Press to mark point B. The AB line appears on the map screen and point B is marked
with a red ball.
Patterns are automatically saved when the vehicle turns for the first time. For more information see
“AutoSave” on page 95.
Note: Guidance extends beyond the end of curved swaths. This makes it possible to get LED guidance back
onto the swath if the vehicle drives past the end of a swath. The extended swath lines do not appear on screen.
PIVOT
Use the Center-pivot pattern for a field that is irrigated using a center-
pivot. With this pattern, you can drive concentric circles around the
center-pivot. The display will calculate the center point based on where
you have driven. Otherwise, you can enter in the latitude and longitude
of the center point, if known.
