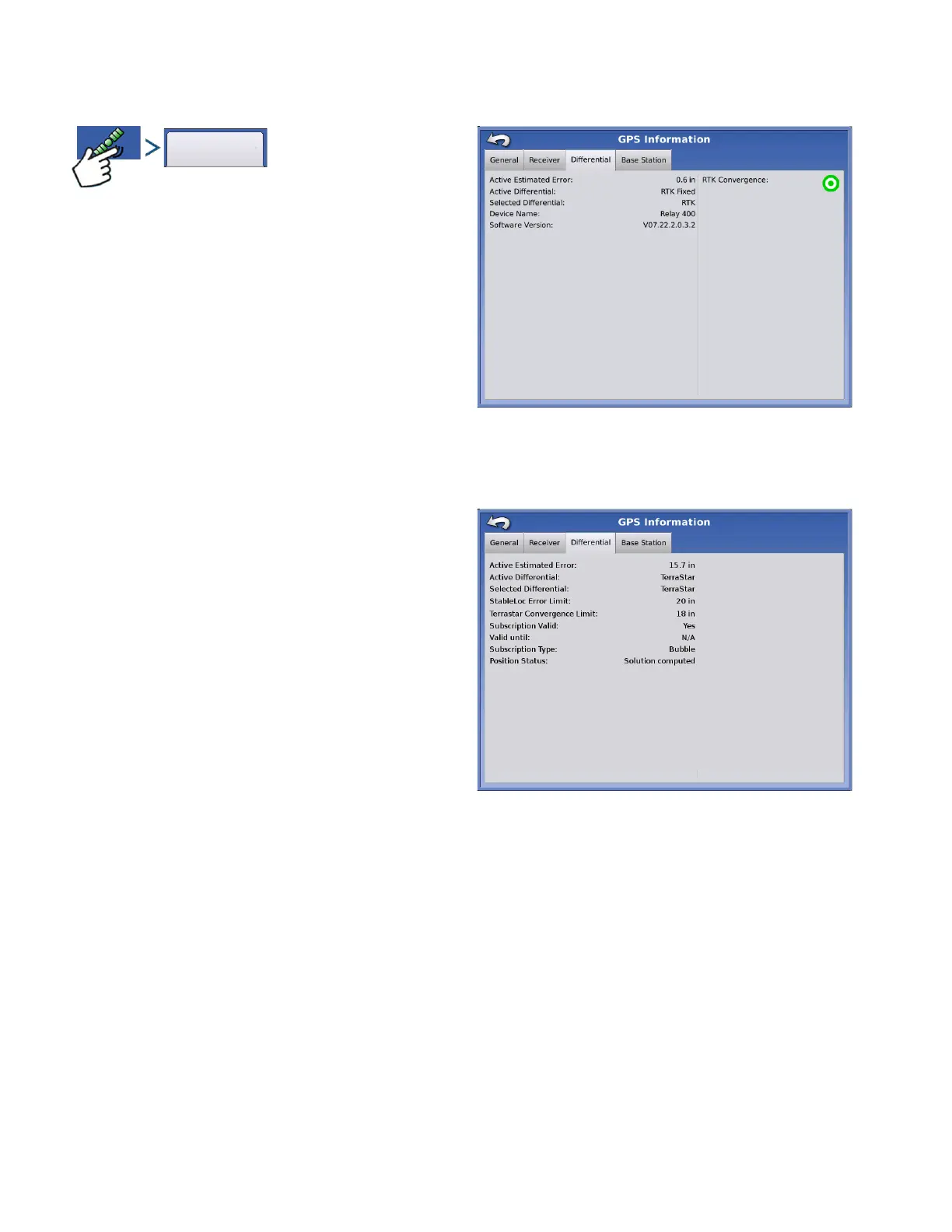

GPS INFORMATION - DIFFERENTIAL TAB
Press: GPS (satellite) button > Differential tab
• Latitude, Longitude, Elevation
Displays current position (in longitude and latitude)
and elevation.
Differential Tab:
• Active Estimated Error
Estimated error of the active differential source.
• Active Differential
Indicates the active differential source and will vary
depending on the current state of StableLoc.
• Selected Differential
Indicates the selected differential source (the source selected in the GPS setup).
• StableLoc Error Limit
Indicates the error limit selected in the GPS setup.
• Device Name
Indicates the connected Relay Module.
• Software Version
Software version of the radio/modem within the
Relay Module.
• Manufacturer
Manufacturer of the Relay Module.
• Serial Number
Serial number of the Relay Module.
• Signal Strength
• Mobile Directory Number
• Mobile Subscriber ID
• NTRIP Connect/Disconnect
• RTK Convergence
• TerraStar Convergence Limit
Maximum allowable error for TerraStar accuracy. When estimated error is larger than convergence limit,
system will not allow Autoswath and steering.
• Subscription Valid
Notes if receiver as a currently active TerraStar Subscription
• Valid Unit
End date for current subscription
