GPS
• Subscription Type
Shows active subscription type. “Term” subscriptions are a subscription type with an end date.
• Position Status
Shows current state of TerraStar signal.
Three states to indicate the current convergence level.
- Red Arrows, pointing out
The device is not currently converging on RTK. This may indicate a RTK link problem.
- Green Arrows, pointing in
The device is currently converging.
- Green Bull’s-eye
The device is converged on RTK.

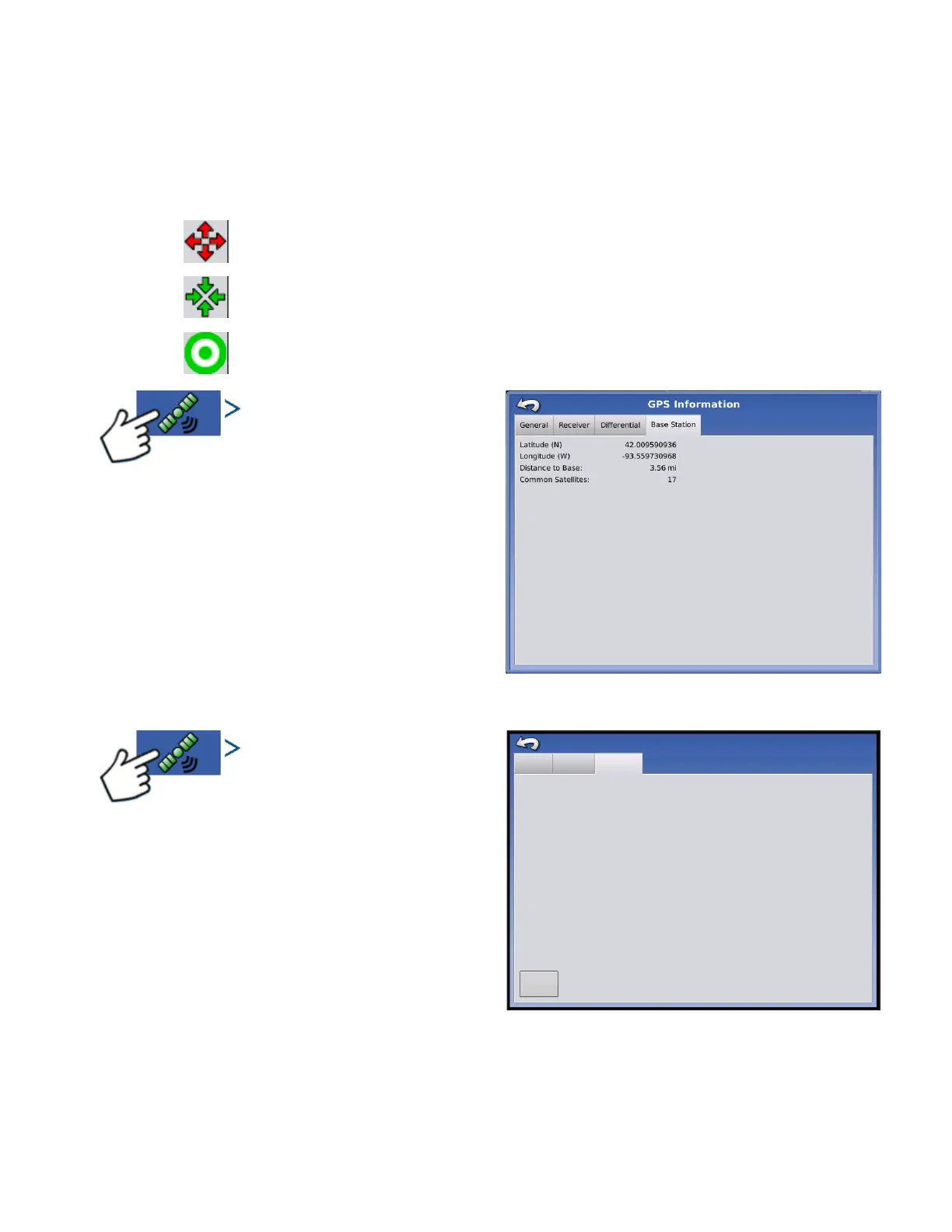

Press: GPS (satellite) button > Base Station tab
• Latitude
• Longitude
• Distance to Base
• Common Satellites
GPS INFORMATION - OMNISTAR TAB
Press: GPS (satellite) button > Relay tab
• HP/XP Expiration Date
• HP/XP Time Remaining
• VBS Expiration Date
• VBS Time Remaining
• AutoSeed Fast Restart
• AutoSeed Status
• Estimated Position Error
RTK/NTRIP Information (ParaDyme/GeoSteer Only)
The following information appears on the second GPS Information screen for RTK or NTRIP.
Reset
AutoSeed
General
Receiver
OmniStar
HP/XP Expiration Date:
HP/XP Time Remaining:
VBS Time Remaining:
AutoSeed Fast Restart:
AutoSeed Status:
Estimated Position Error:
03/19/2010
0 Days
03/19/2010
0 Days
OFF
N/A
N/A
VBS Time Remaining:
GPS Information
