Appendix A Changing the Pin Format122
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
5. Close the main door and tap OK.
The pin array moves over to the pin protection block and lowers onto it.The next
instructions appear (Figure A.8).
6. Open the main door and install the pin insert:
a. Place the plunge handle into position by following the directions in Figure A.9.

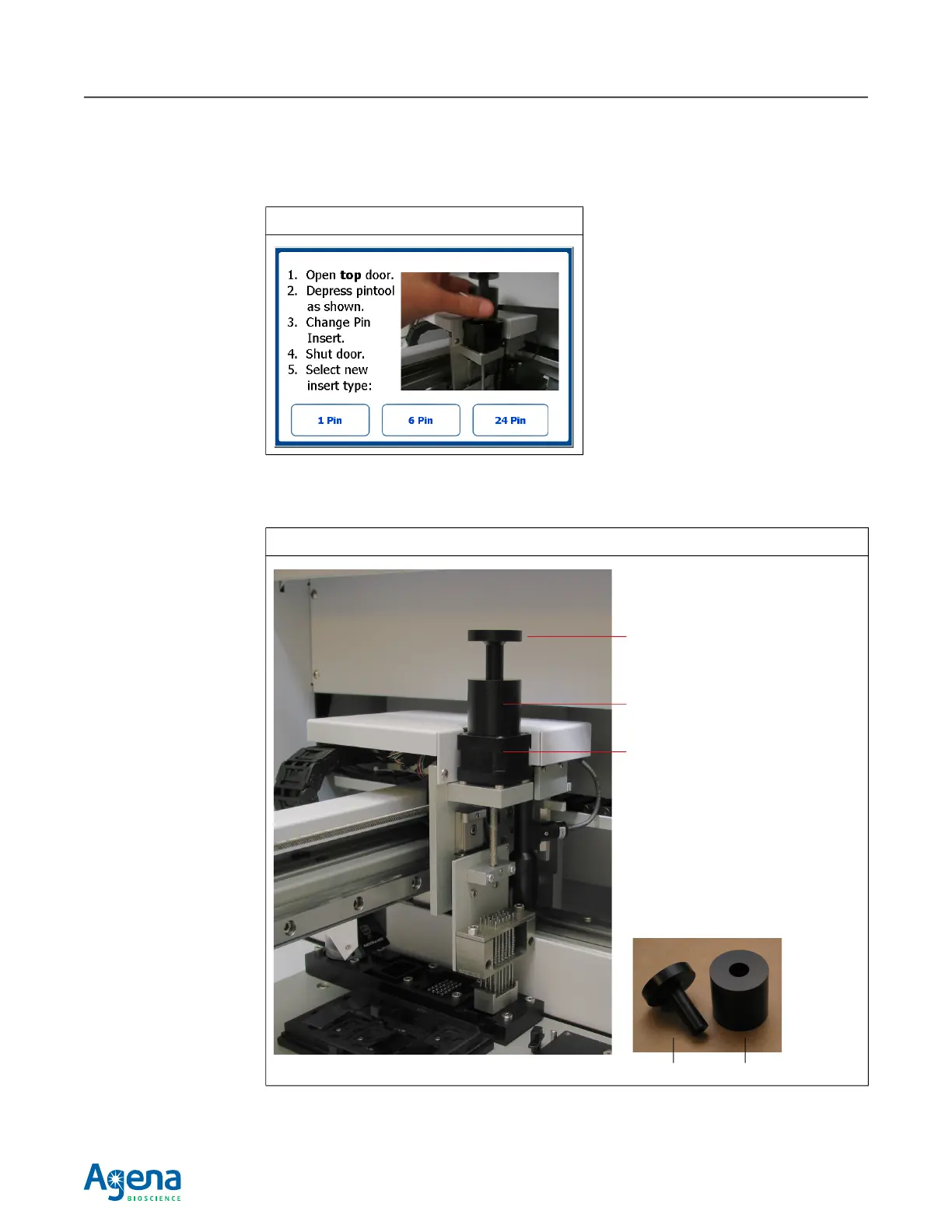

Figure A.8 Instructions for Next Steps
Figure A.9 Placing the Plunge Handle into Position
Z motor
Cylinder
Handle
1. Orient the cylinder so that the
smaller hole is on the bottom.
2. Place the cylinder onto the Z
motor. The threaded rod at the
top of the Z motor should fit into
the cylinder hole.
3. Place the handle into the top
hole of the cylinder.
Handle Guide cylinder
