Appendix A Changing the Pin Format 123
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
b. Plunge the pins by pushing down on the plunge handle until the pin array body
contacts the risers on the pin protection block (Figure A.10).
c. Keep the pin array body pressed down against the pin protection block risers
while you slide the pin insert (6-pin or 1-pin) into the pin array until it stops (Figure
A.11 and Figure A.12).

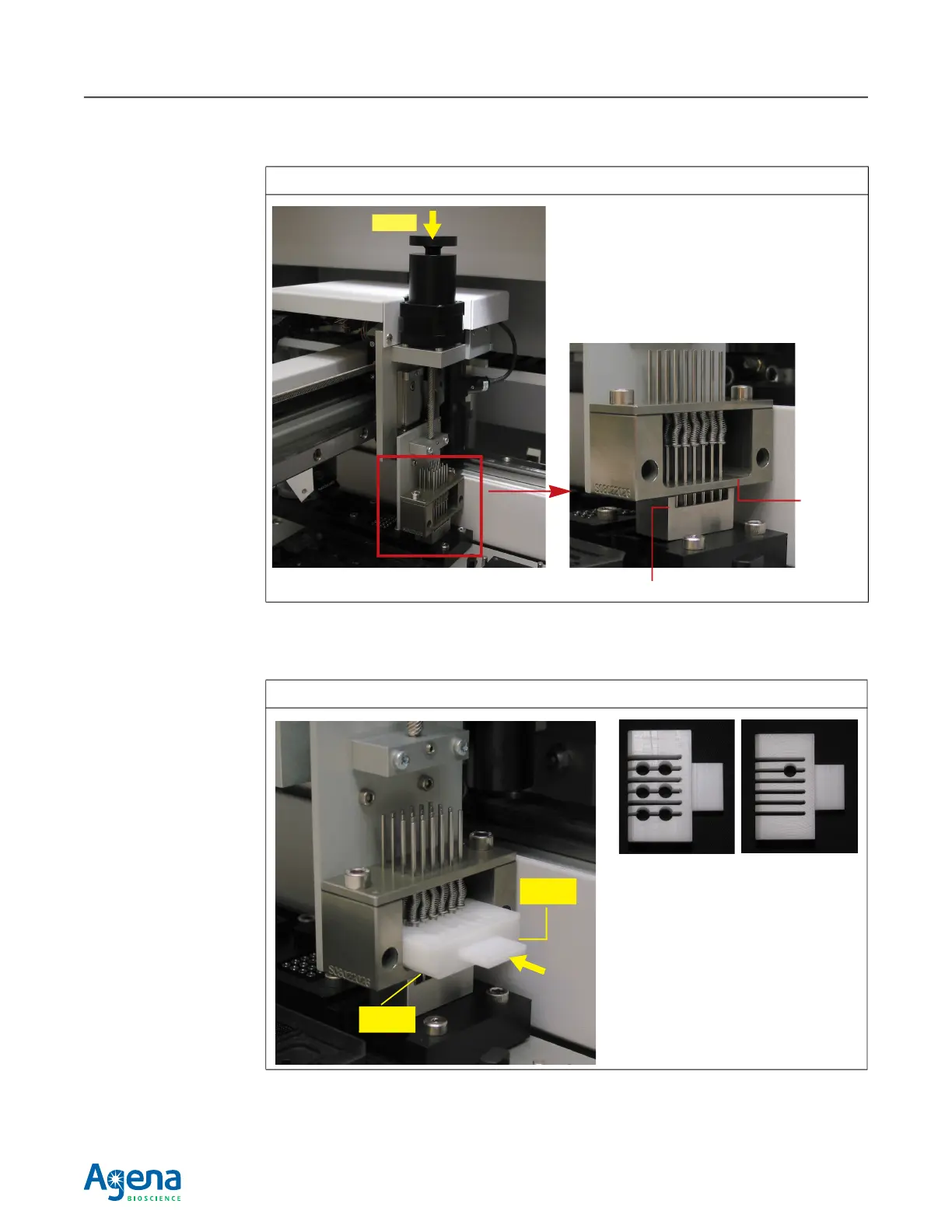

Figure A.10 Plunge the Pin Array
Figure A.11 Slide the Pin Insert into the Pin Array
Push
Pin array
body
Riser
S
l
i
d
e
Chamfer
Chamfer
The pin inserts have chamfered
(beveled) corners on one side.
This side should be on the
bottom. This is the only way an
insert will fit into the pin array.
6-pin insert
(6 holes)
1-pin insert (1
hole)
