Appendix A Changing the Pin Format126
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
7. Open the main door.
8. Remove the protection block:
a. Lift the pin protection block off the dry station and set it aside (Figure A.16).
b. Leave the main door open.
9. Check to make sure that the pins are correctly extended (Figure A.17).
In rare cases, a pin that should remain extended for use might be retracted. If this
occurs, lightly touch the base (top end) of the pin and it should snap into proper
extended position.
WARNING
!
WARNING! DO NOT touch the pin tips. This could damage or contaminate them.

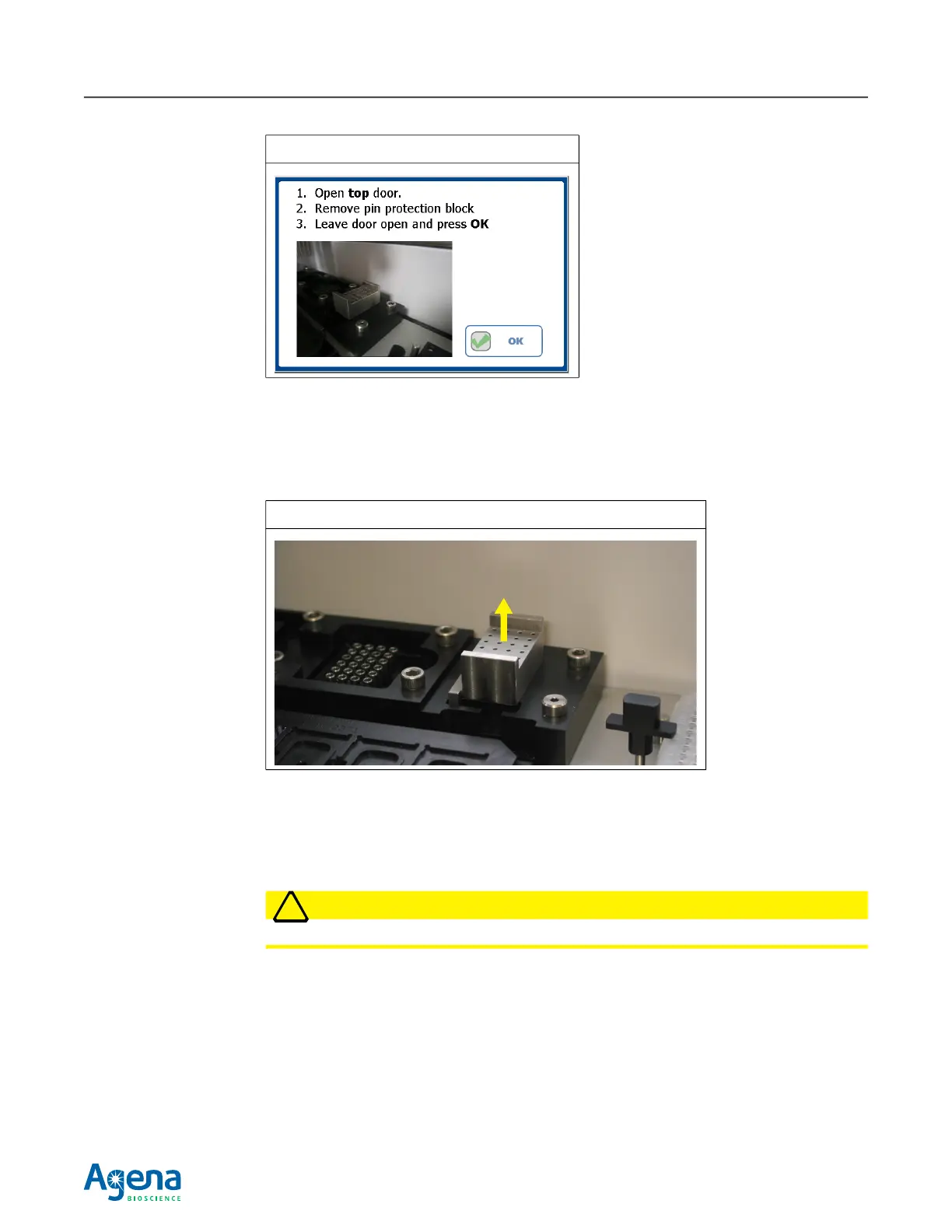

Figure A.15 Instructions for Next Steps
Figure A.16 Pin Protection Block on the Dry Station
Lift
To Next Page
