7713395 R2 103

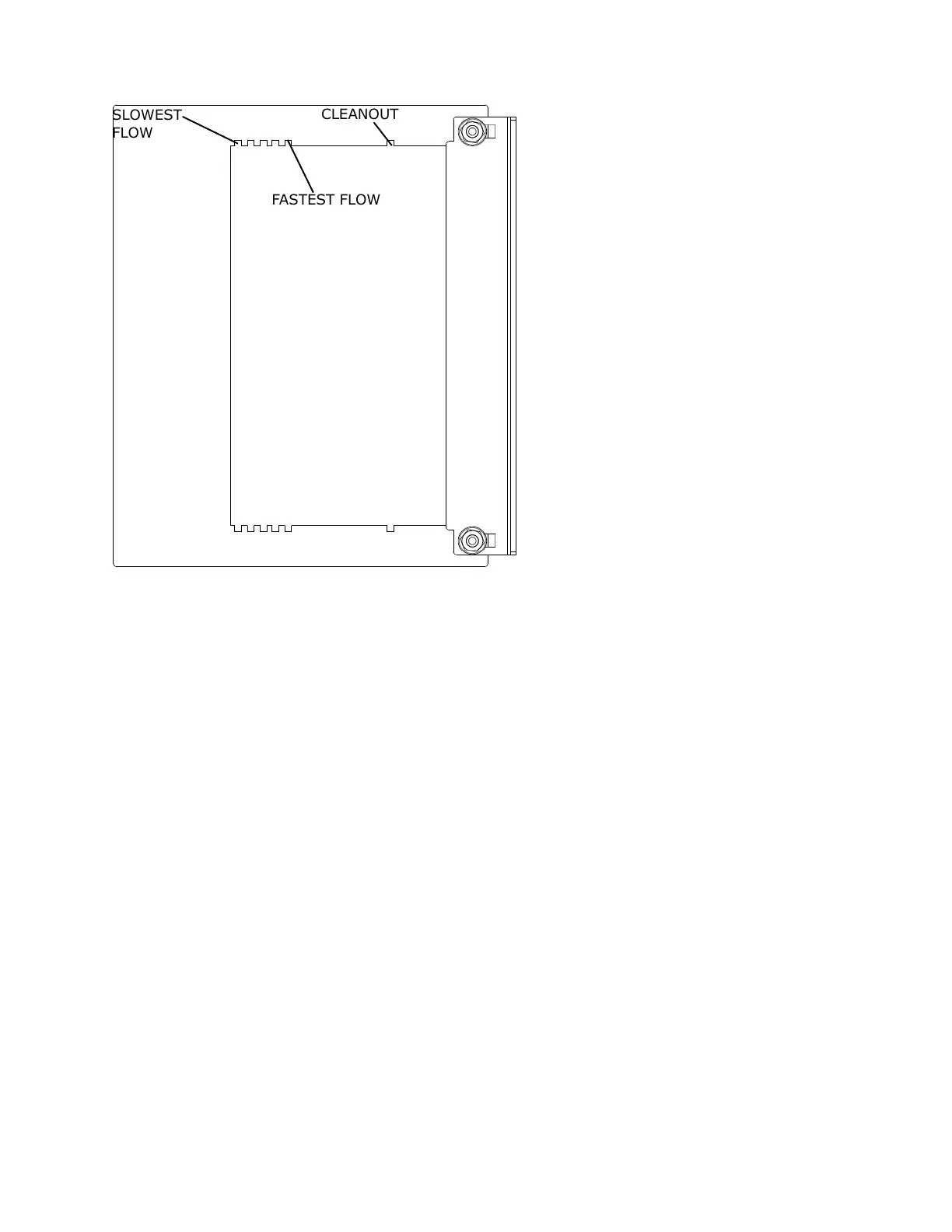

SLOWEST
FLOW
FASTEST FLOW
CLEANOUT
Viewing doors are available for both auger and drag unloads. For auger systems, the viewing door is located on
the discharge chute itself. Note that there are two identical doors on the discharge chute. The viewing door is
on the opposite side of the chute as the plug switch. If the other door is opened, the switch will indicate a
plugged discharge, and the dryer will shut down. For drag unloads, the viewing door is located on top of the
cross drag and is not tied into the plugged discharge switch.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 4. OPERATION
