AGI D1660 - Main Control Box Terminal Strip

138 7713395 R2
8.7. Main Control Box Terminal Strip
Important
After installation is complete check the motor wires for the correct motor rotation and auger rotation
direction.

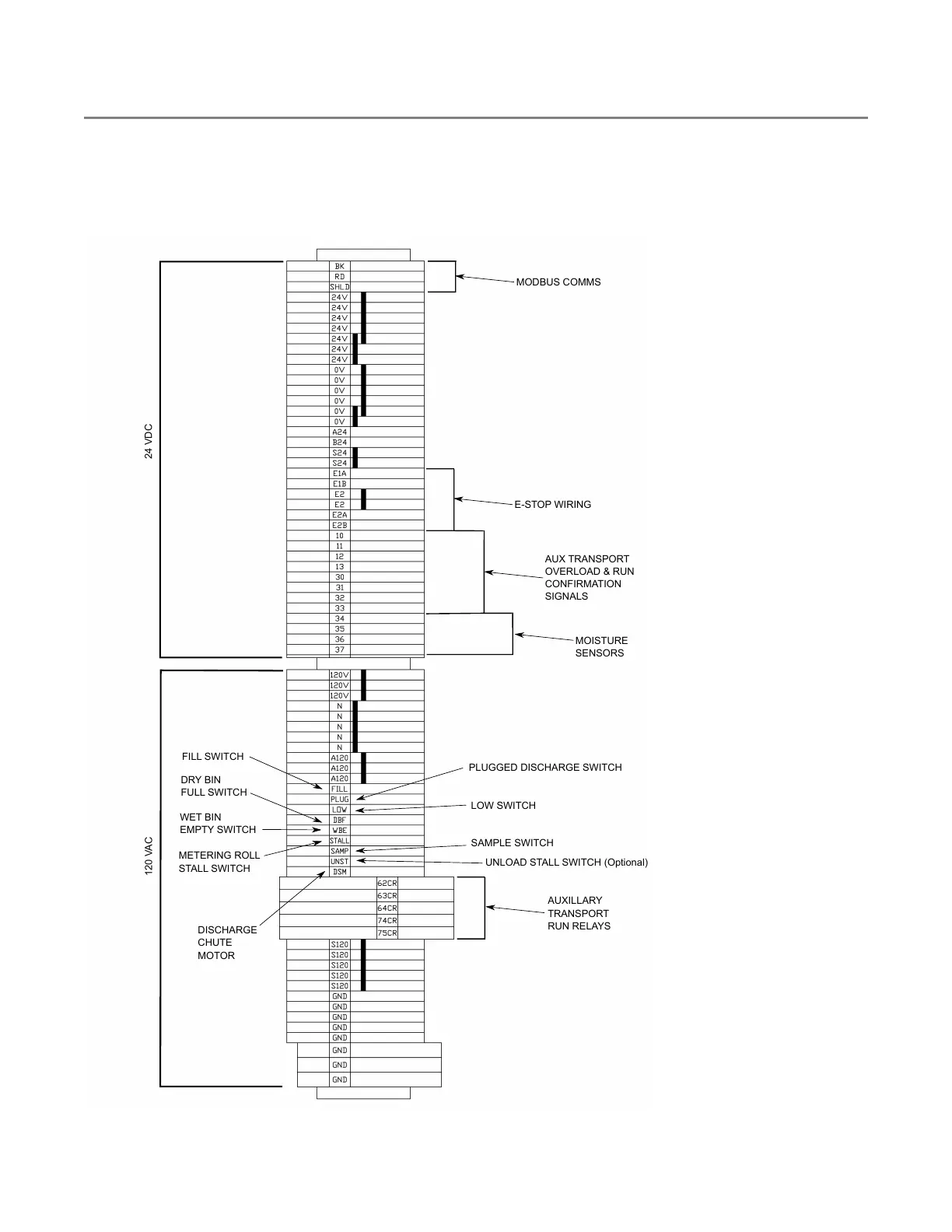

Figure 155. Main Control Box Terminal Strip
24 VDC
120 VAC
MODBUS COMMS
E-STOP WIRING
AUX TRANSPORT
OVERLOAD & RUN
CONFIRMATION
SIGNALS
MOISTURE
SENSORS
FILL SWITCH
DRY BIN
FULL SWITCH
WET BIN
EMPTY SWITCH
METERING ROLL
STALL SWITCH
PLUGGED DISCHARGE SWITCH
LOW SWITCH
SAMPLE SWITCH
UNLOAD STALL SWITCH (Optional)
AUXILLARY
TRANSPORT
RUN RELAYS
DISCHARGE
CHUTE
MOTOR
8. APPENDIX CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
