8.11. DryerMaster Moisture Sensor Circuit Board
Figure 161. DryerMaster enclosure
CAUTION
NO
WELDING
NEAR
SENSOR
The DryerMaster moisture sensor circuit board is factory set and should not need adjustment.

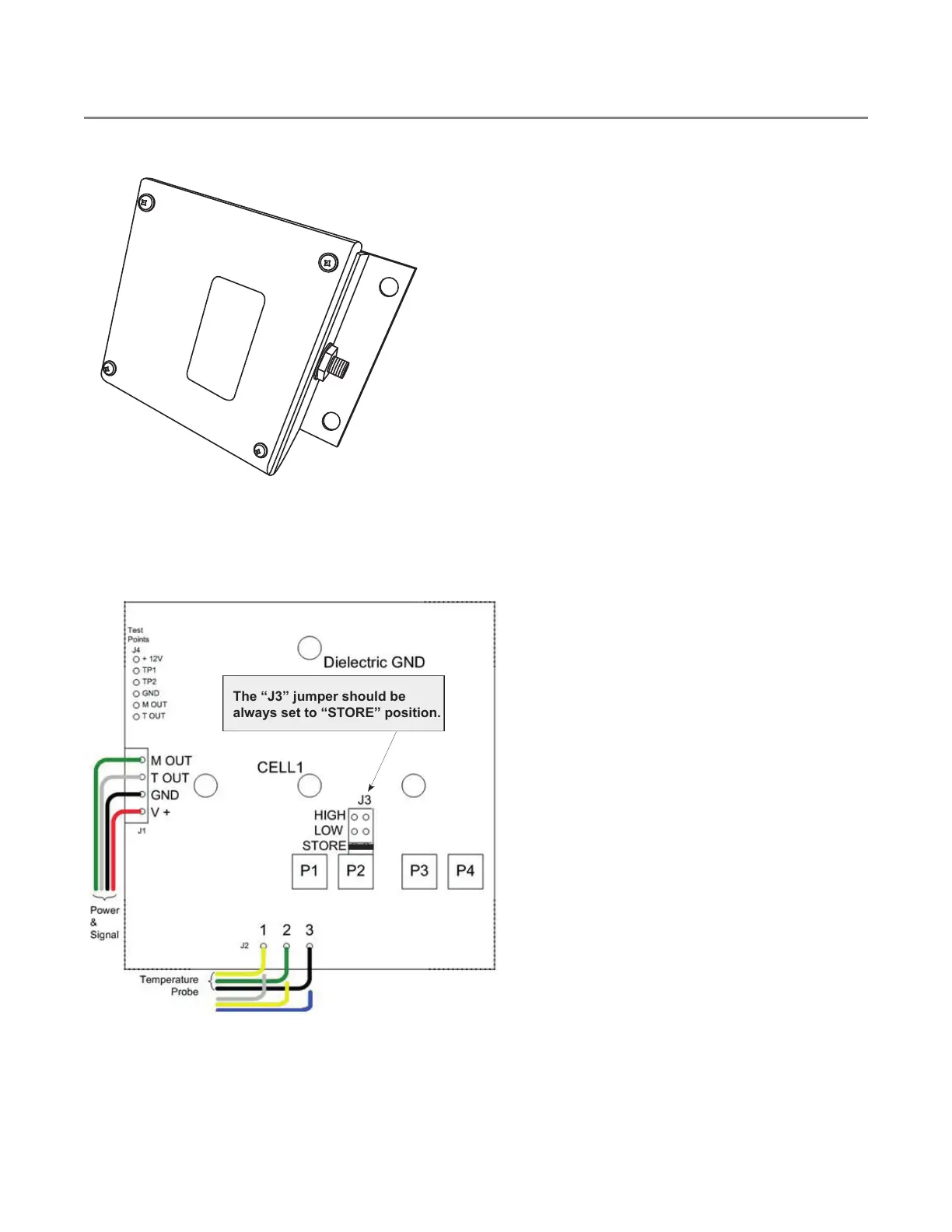

Figure 162. DryerMaster circuit board and connections
The “J3” jumper should be
always set to “STORE” position.
