7713395 R2 55
Interior

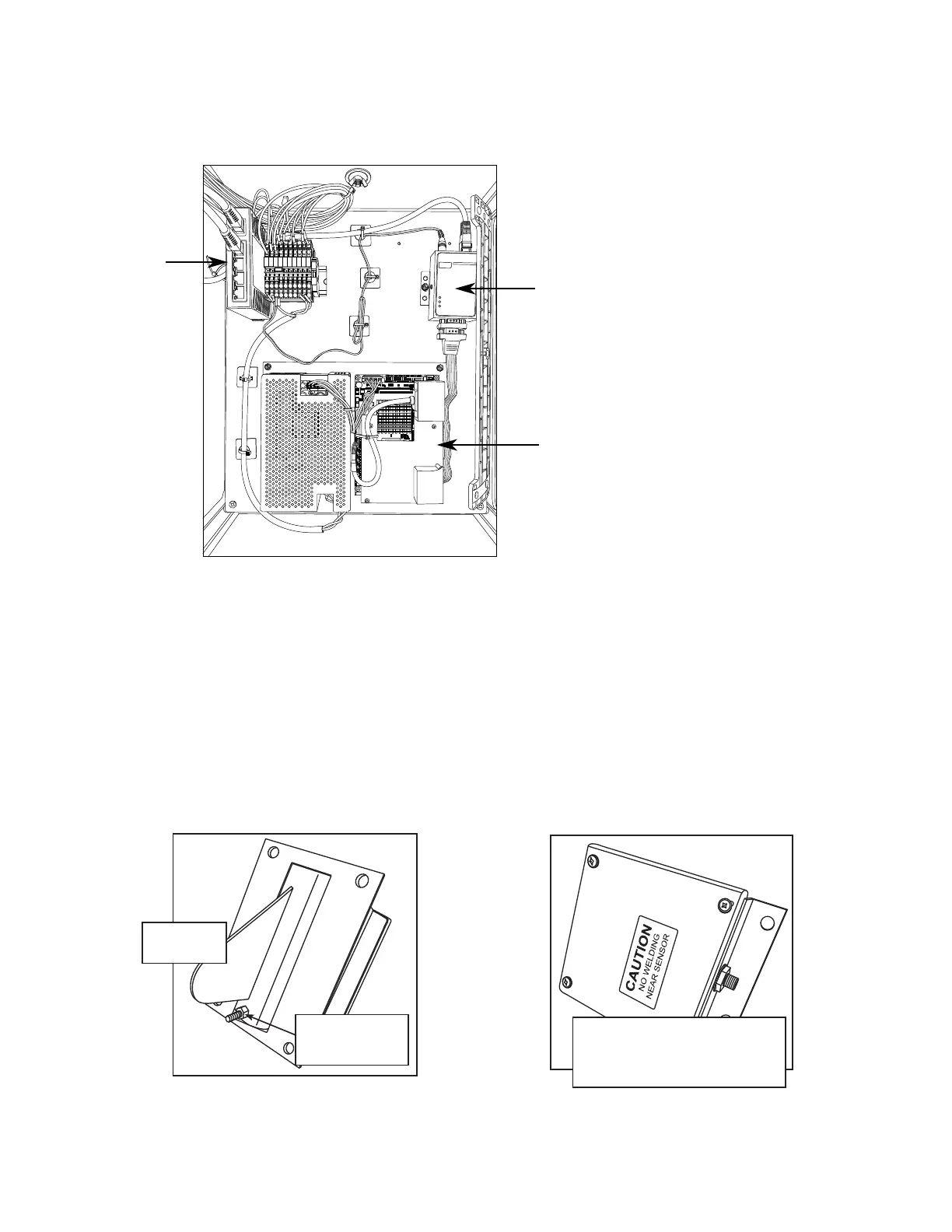

Figure 61. Inside View
DRYER MASTER
CONTROLLER
MGATE MOXA
SERIAL TO
ETHERNET
CONVERTOR
ETHERNET
SWITCH
5ES
5
4
3
2
1
100
LNK
120V
EIA
E2A
24V
GND
E2
OV
OV
H
N
12-48 VDC
RESET
10/100M
Ethernet
Ethernet
Ready
P1
Part 1 Rs-232422485
MINI ADAPTER
MOXA
5-Port Industrie
3.9.3 Moisture/Temperature Sensor Overview
• The combination moisture/temperature sensing unit (059250W) has a moisture sensing “fin” and a
temperature sensing probe directly below it. The sensor provides 0 to 10 VDC signals for both temperature
and moisture, which the embedded DryerMaster converts to grain moisture and temperature readings.
• One sensor is located at the top of the dryer for reading INLET grain moisture and temperature.
• One sensor is located at the dryer grain discharge chute for reading OUTLET grain moisture and
temperature.
Figure 62. Moisture Sensor
MOISTURE
FIN
TEMPERATURE
PROBE
Figure 63. DryerMaster Module
CONNECTION IS WITH A GRAY
5-PIN CABLE FROM THE MAIN
CONTROL CABINET.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
