AGI D1660 - Rear of Dryer

7713395 R2 23
3.2.2 Rear of Dryer

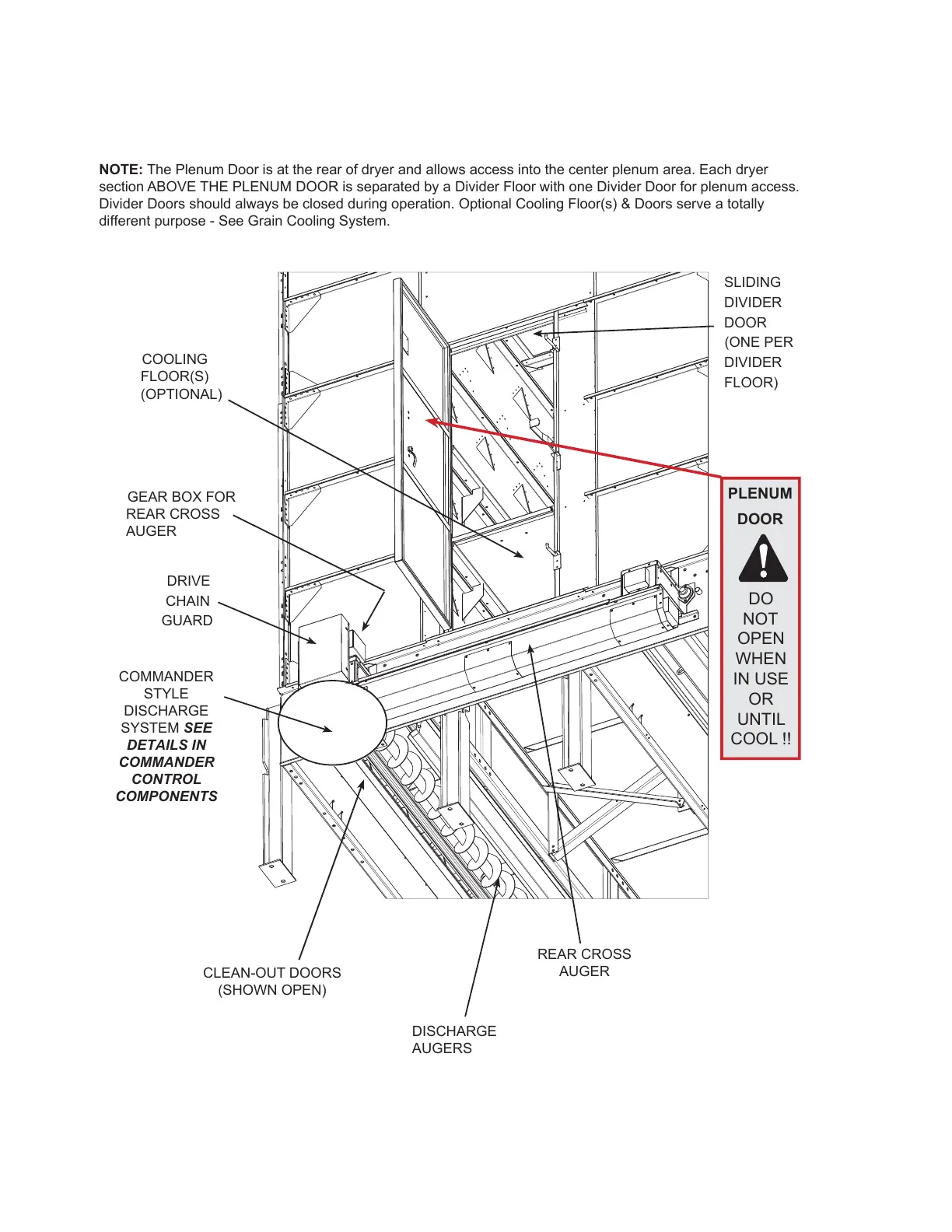

Figure 15. Rear of Dryer (from Below)
GEAR BOX FOR
REAR CROSS
AUGER
COMMANDER
STYLE
DISCHARGE
SYSTEM SEE
DETAILS IN
COMMANDER
CONTROL
COMPONENTS
REAR CROSS
AUGER
CLEAN-OUT DOORS
(SHOWN OPEN)
NOTE: The Plenum Door is at the rear of dryer and allows access into the center plenum area. Each dryer
section ABOVE THE PLENUM DOOR is separated by a Divider Floor with one Divider Door for plenum access.
Divider Doors should always be closed during operation. Optional Cooling Floor(s) & Doors serve a totally
different purpose - See Grain Cooling System.
DISCHARGE
AUGERS
COOLING
FLOOR(S)
(OPTIONAL)
SLIDING
DIVIDER
DOOR
(ONE PER
DIVIDER
FLOOR)
DRIVE
CHAIN
GUARD
DO
NOT
OPEN
WHEN
IN USE
OR
UNTIL
COOL !!
PLENUM
DOOR
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
