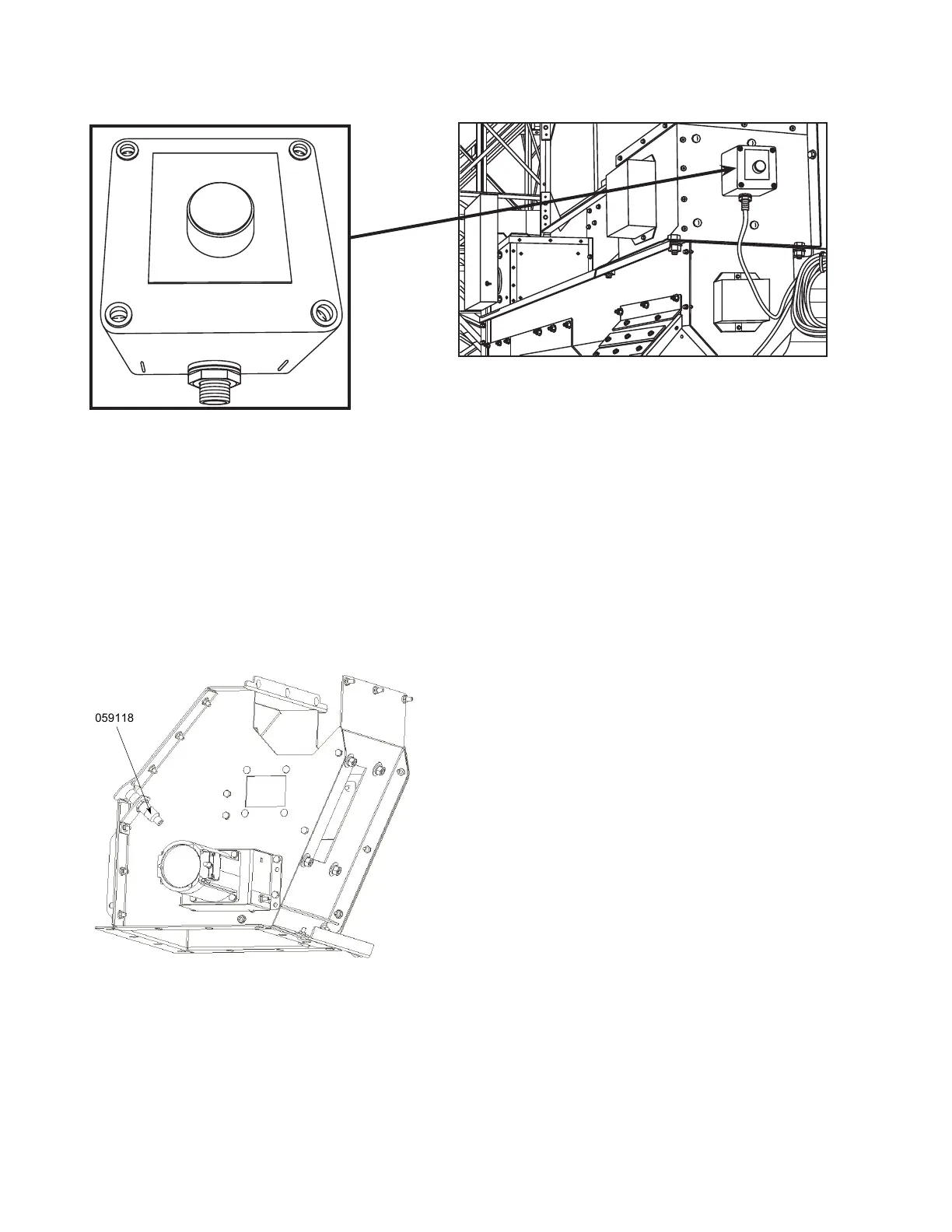

Figure 67. Outlet sensor and sample button locations
#059243 SAMPLE BUTTON
NOTE: AUGER STYLE DISCHARGE SHOWN
SAMPLE
SAMPLE
3.9.4 Discharge Plugged Sensor
• Dryers with auger unloads utilize a proximity switch (059118) to detect a plugged discharge. If the grain
encounters a plug and backs up into the discharge chute, the hinged door will lift and when the movement
is detected by the proximity switch, the dryer will shut down.
• Dryers with drag unloads utilize a diaphragm switch (059245) to detect plugs. If grain backs up into the
discharge chute, the direct contact with the diaphragm switch will cause the dryer to shut down.
Figure 68. Plug Switch Auger
059118
