4.9. Data and Graphs Screens
4.9.1 Data Screen

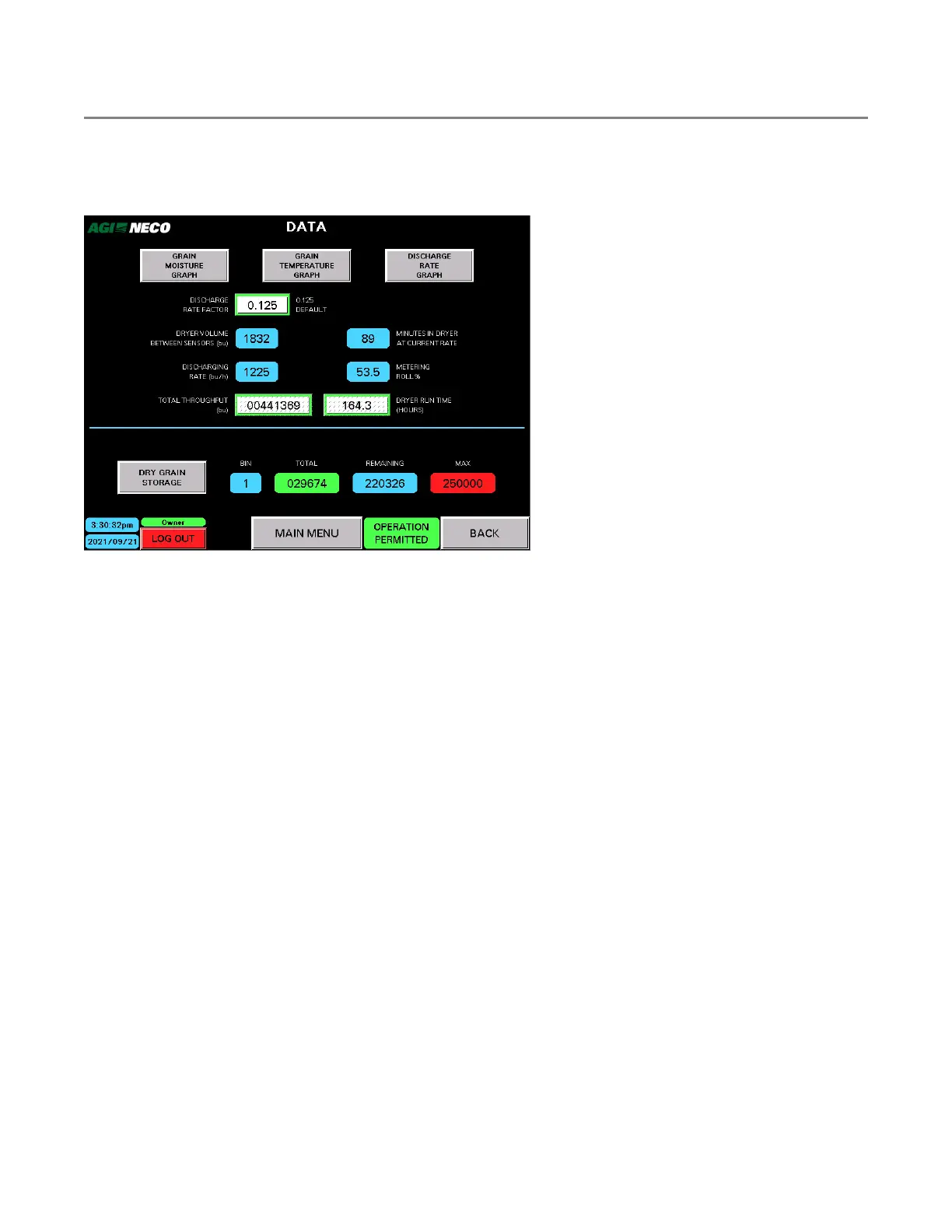

Figure 128. Data screen
The DATA screen displays the following information:
Dryer Volume Between Sensors
• Bushels or cubic meters
Minutes in Dryer at Current Rate
• Minutes required for grain to move from the inlet sensor to the outlet sensor at the current discharging
rate.
Discharge Rate Factor
• The value used to calculate the throughput bushels or cubic meters value.
• Initial adjustment may be necessary to obtain correct throughput value. Also, the discharge rate factor will
likely need to be adjusted for different grains.
Discharging Rate (bu/h or m
3
/h)
• Current discharging rate of the dryer
Metering Roll Percent
• Meter speed percent, maximum
Total Throughput (bu or m
3
)
• Volume of grain run through the dryer. Note this value increases with or without grain when the metering
rolls are running.
Dryer Run Time
• Running hours of the dryer
