3.2. Parts of the Dryer
Important
Understanding the terms used to identify the various components of a dryer system will make the
instructions in this manual clearer and easier to follow.
3.2.1 Front of Dryer

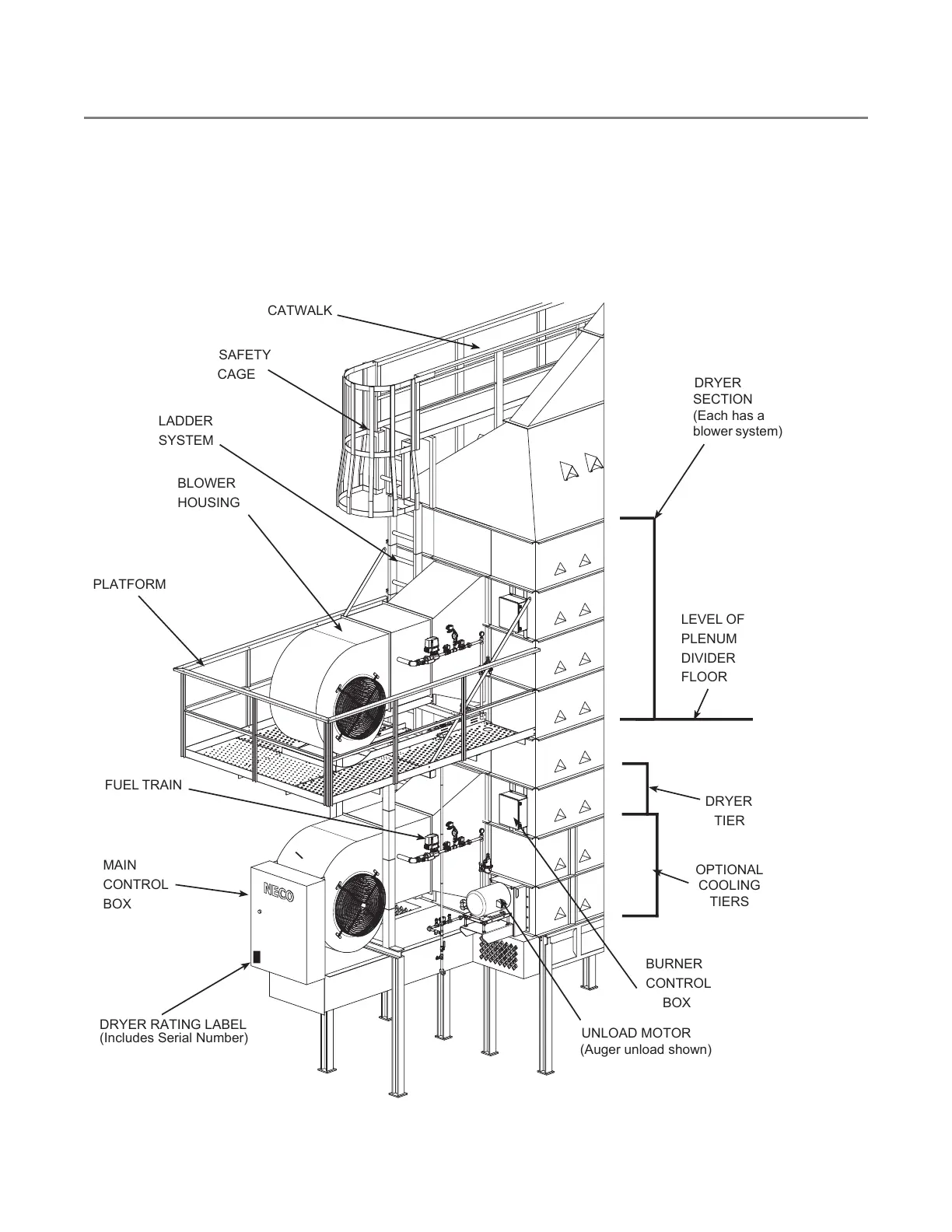

Figure 13. Front of Dryer (from Fuel Train Side)
MAIN
CONTROL
BOX
CATWALK
BLOWER
HOUSING
FUEL TRAIN
PLATFORM
BURNER
CONTROL
DRYER
SECTION
(
Each has a
blower system)
BOX
UNLOAD MOTOR
(Auger unload shown)
SAFETY
CAGE
DRYER
TIER
LADDER
SYSTEM
LEVEL OF
PLENUM
DIVIDER
FLOOR
OPTIONAL
COOLING
TIERS
DRYER RATING LABEL
(Includes Serial Number)
