Table 9 Speed setting (DC motor %) (continued)
MODEL - RPM
MOISTURE CONTENT (%)
3 5 7 9 11 13 15
D32260 - 62 RPM 54% 32% 23% 18% 15% 13% 11%
D32340 - 62 RPM 72% 43% 31% 24% 20% 17% 15%
D32440 - 92 RPM 61% 36% 26% 20% 17% 14% 12%
D32500 - 92 RPM 73% 44% 31% 24% 20% 17% 15%
8.2. Optional External Transport Configurations
Example 1: Wet 1 Auger and Dry 1 Air System
The following diagram shows an example of a one-wet and one-dry air system to be controlled and operated by
the Commander system.
Note
Shown for example only. Individual configuration vary.

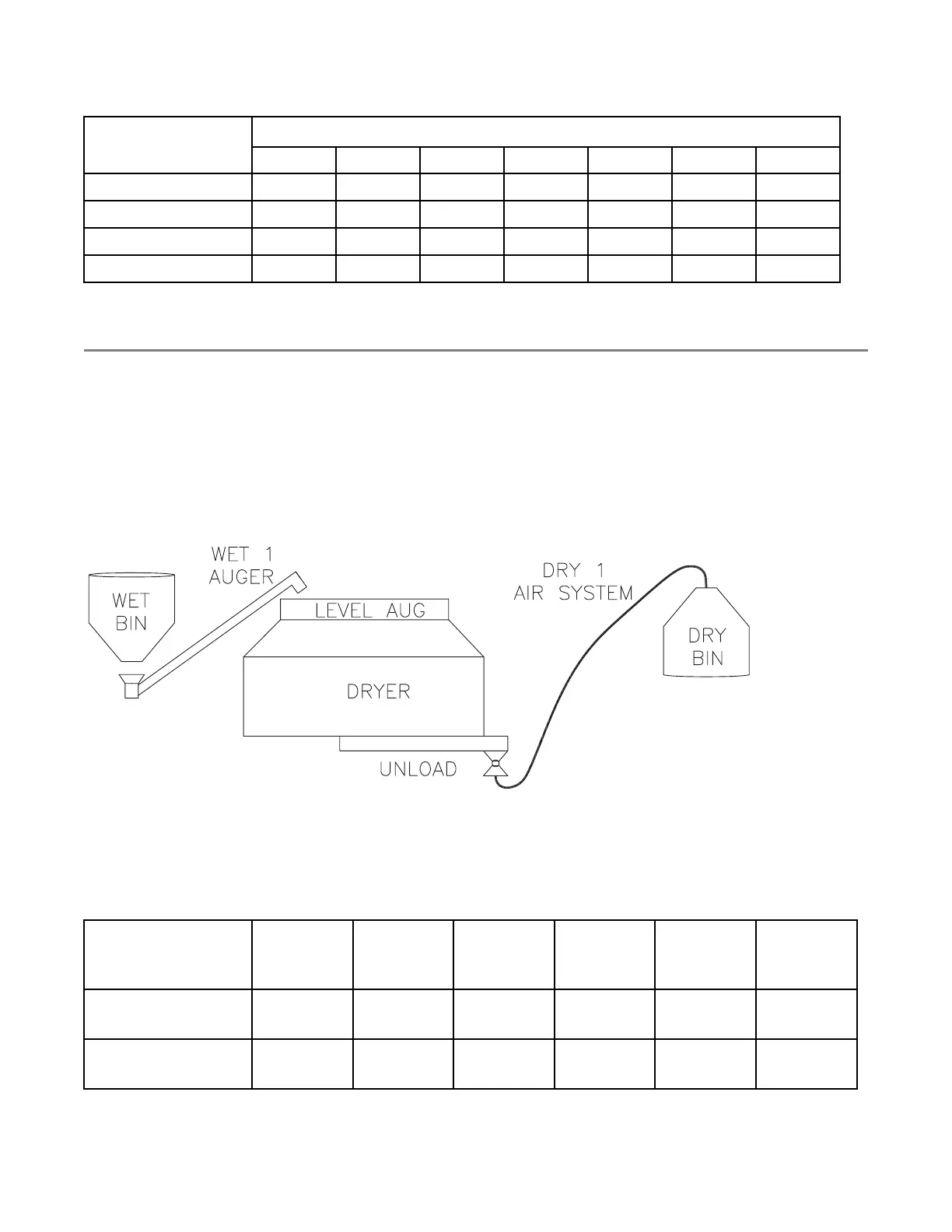

Figure 147. Wet 1 auger and dry 1 air system
Note
The table information below is an example of the Fill/Empty Setup data inputs that would be required
for the Wet/Dry type of layout shown above.
Table 10. Fill/Empty setup data
Motor
Present
Run
Continuous
Stop After
Drying
Stops
Start Delay
Seconds
Stop Delay
Seconds
Relay #
Wet 2 Transport
(Farthest From Dryer)
No
Wet 1 Transport
(Closest To Dryer)
Yes No 1 1 63CR
8. APPENDIX CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
