7713395 R2 129
Table 10 Fill/Empty setup data (continued)
Motor
Present
Run
Continuous
Stop After
Drying
Stops
Start Delay
Seconds
Stop Delay
Seconds
Relay #
Level Auger
Yes No 1 1
- -
Unload Auger
Yes 5 5
- -
Dry 1 Transport
(Closest To Dryer)
Yes 1 1 62CR
Dry 2 Transport
(Farthest From Dryer)
No

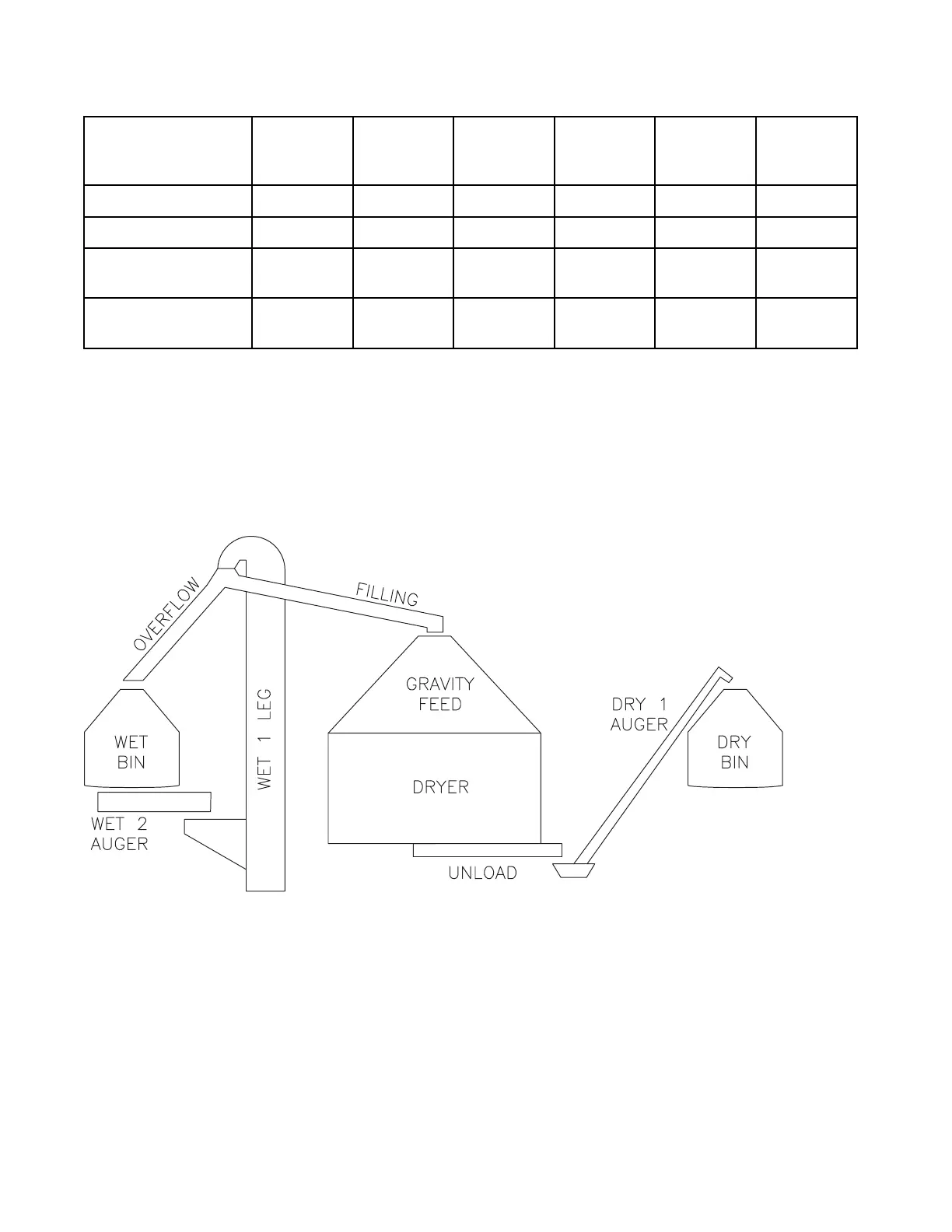

Example 2: Wet 1 and Wet 2 Augers and Dry 1 Auger
The following diagram shows an example of a two-wet and one-dry air system to be controlled and operated by
the Commander system.
Note
Shown for example only. Individual configuration vary.
Figure 148. Wet 1 and Wet 2 augers and Dry 1 auger
Note
The table information below is an example of the Fill/Empty Setup data inputs that would be required
for the Wet/Dry type of layout shown above.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 8. APPENDIX
