130 7713395 R2
Table 11. Fill/Empty setup data
Motor
Present
Run
Continuous
Stop After
Drying
Stops
Start Delay
Seconds
Stop Delay
Seconds
Relay #
Wet 2 Transport
(Farthest From Dryer)
Yes 1 75CR
Wet 1 Transport
(Closest To Dryer)
Yes Yes No 63CR
Level Auger
No
- -
Unload Auger
Yes 1 5
- -
Dry 1 Transport
(Closest To Dryer)
Yes No 1 15 62CR
Dry 2 Transport
(Farthest From Dryer)
No
Example 3: Wet 1 and Wet 2 Augers and Dry 1 and Dry 2 Augers
The following diagram shows an example of a two-wet and two-dry air systems to be controlled and operated
by the Commander system.
Note
Shown for example only. Individual configuration vary.

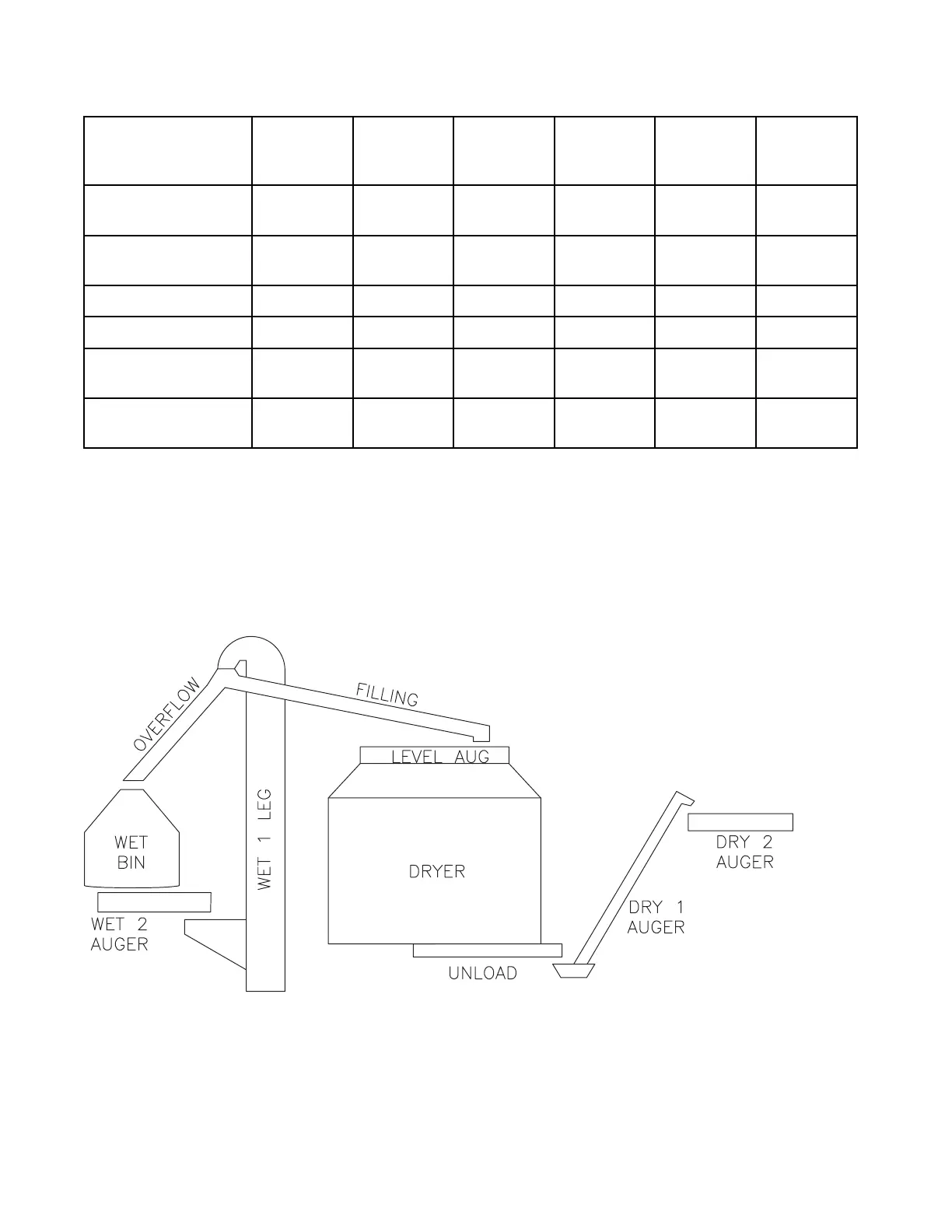

Figure 149. Wet 1 and Wet 2 Augers and Dry 1 and Dry 2 Augers
Note
The table information below is an example of the Fill/Empty Setup data inputs that would be required
for the Wet/Dry type of layout shown above.
8. APPENDIX CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
