3.9.2 HMI Enclosure
Location
NECO recommends that the HMI enclosure be located indoors, with line-of-sight of the dryer. Maximum
distance should be within 300 feet (91.4 m) — the maximum length of the Ethernet cabling.
If it is necessary to place the unit outside, subject to temperature and weather extremes, it must be installed
inside another enclosure.
Note
Do not locate the HMI screen in direct sunlight.

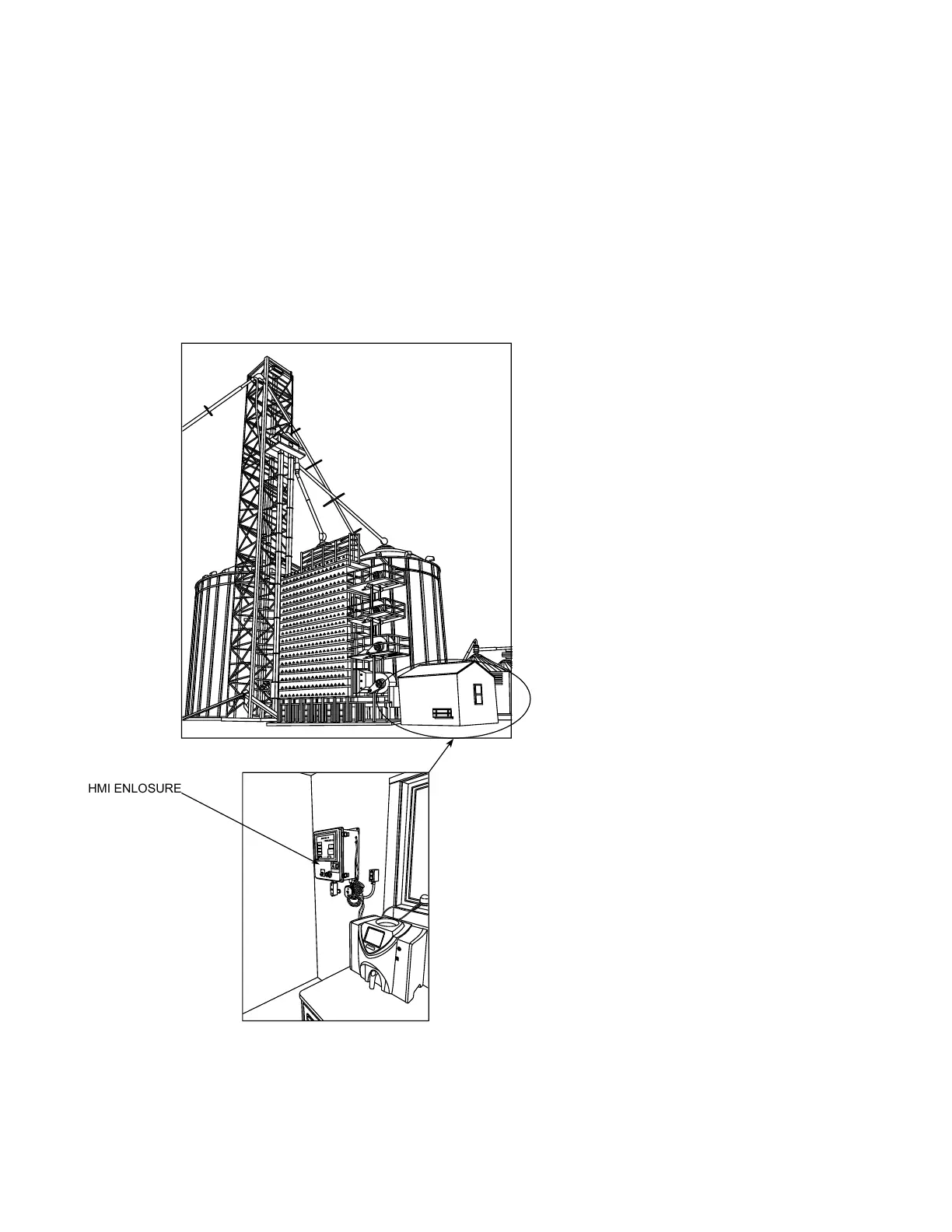

Figure 58. Example HMI Location
HMI ENLOSURE
2500- AGRI
GAC
START
STOP
DRYERMASTER
OFF
ON
FILL /EMPTY
DRYER
START DRYER
MAIN MENU
OPERATION
PERMITTED
SETUP
ALARMS
DATA
TROUBLE
SHOOTING
Please peel of the protective film
11:40:26am
NecoTech
LOGOUT
2021/01/27
WARNING
HIGH VOLTAGE
To prevent serious injury or death ,turn off
and lock out power before servicing.
035691
Magelis
Schneider
Electric
with Dryer Master® technology
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
