54 7713395 R2

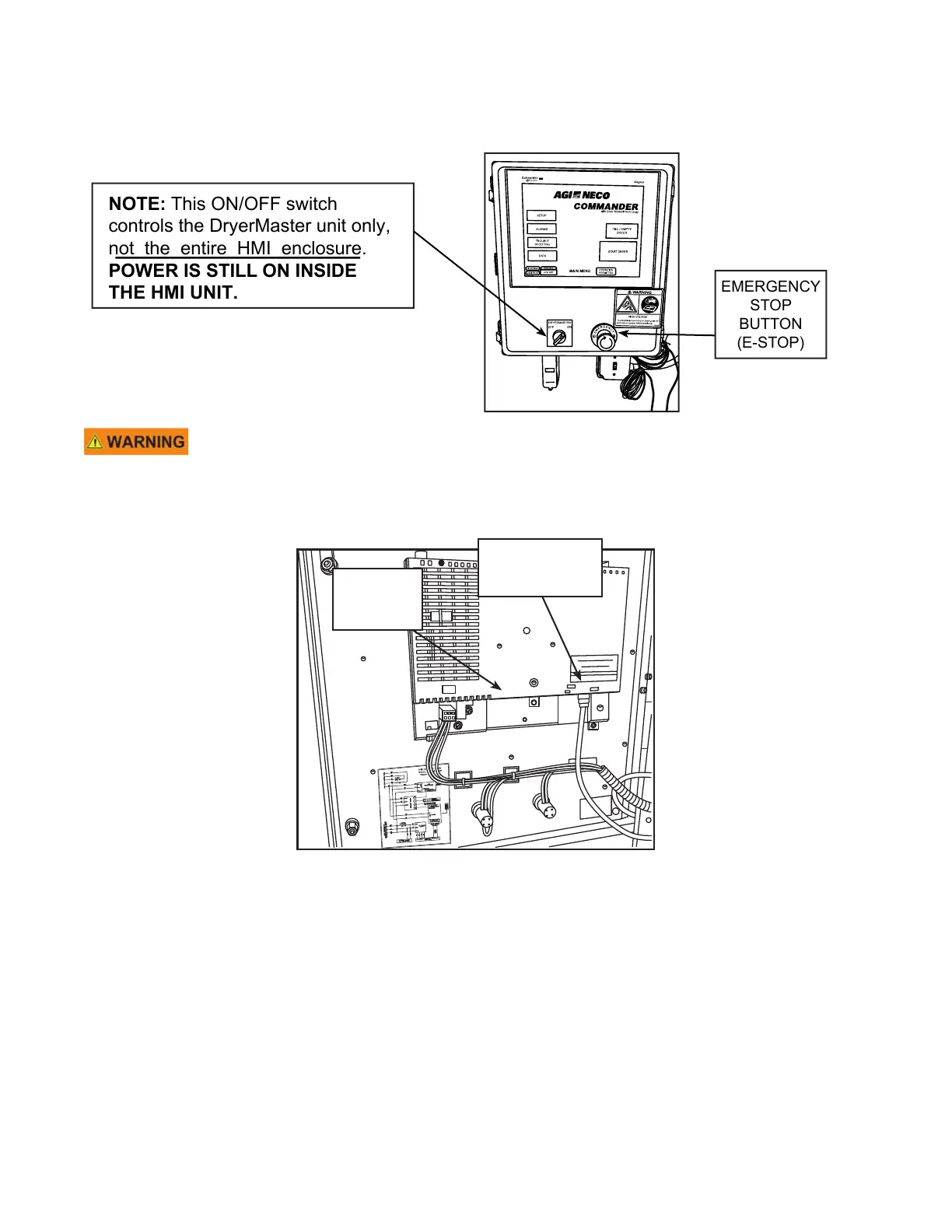

HMI Screen
Figure 59. HMI Screen
NOTE: This ON/OFF switch
controls the DryerMaster unit only,
not the entire HMI enclosure.
POWER IS STILL ON INSIDE
THE HMI UNIT.
EMERGENCY
STOP
BUTTON
(E-STOP)
Schneider
Electric
Pushing the E-STOP button will turn OFF all outputs from the PLC. It does NOT shut off power
into the HMI or main control panel. The Power ON lamp will remain lit on the Main Control
front panel.
Figure 60. Rear View of HMI Screen
BACKSIDE OF “HMIGTO6310”
059242 DECAL REV. A
ETHERNET
PORT
USB
PORT
3. FEATURES CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
