Inlet Moisture/Temperature Sensor
Note
Roof with Gravity Fill AND Level Auger Fill systems locate the inlet sensor on the catwalk side of the roof
with a hatch-style door at the end of the catwalk for access.

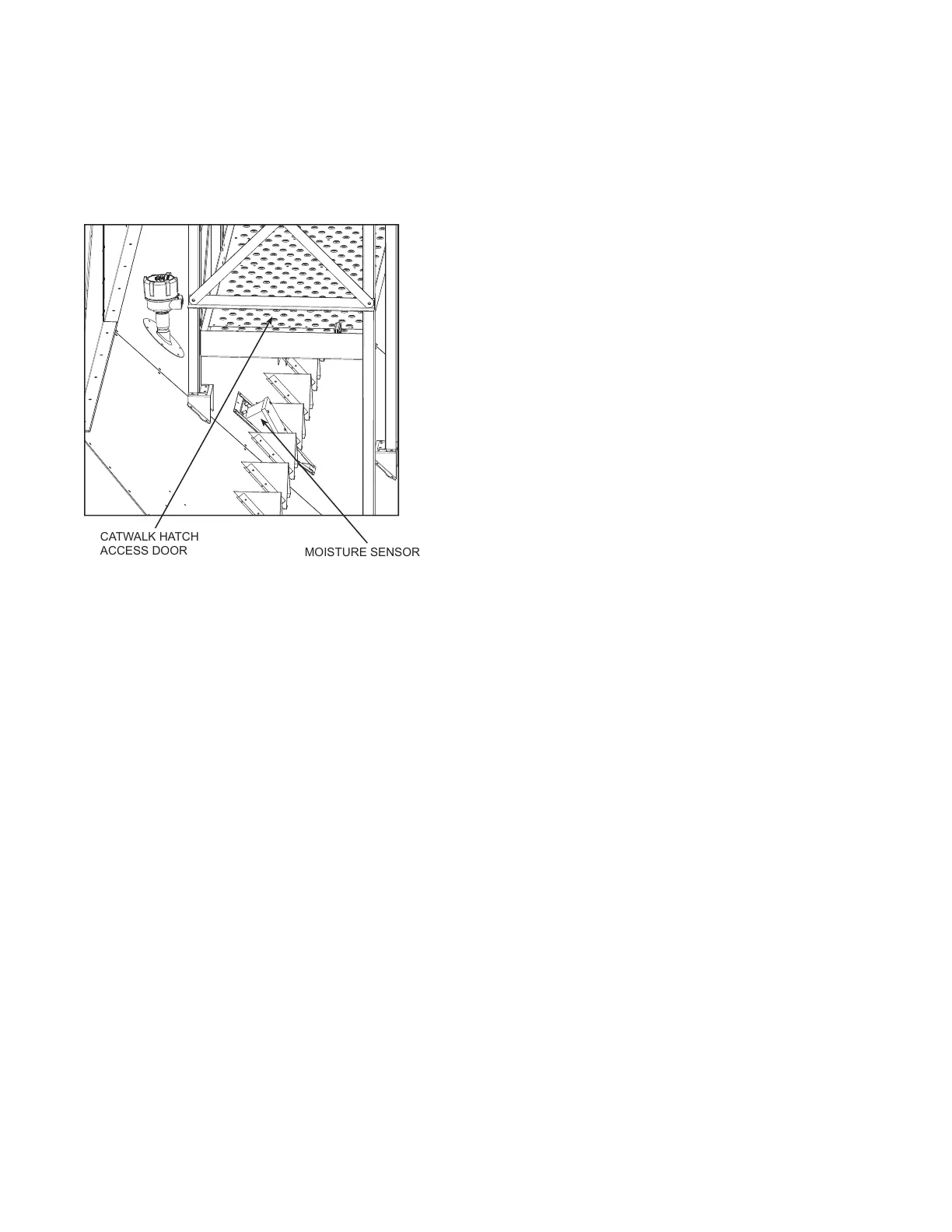

Figure 64. Inlet sensor location
CATWALK HATCH
ACCESS DOOR
MOISTURE SENSOR
Outlet Moisture/Temperature Sensor
• The grain is directed past the moisture fin and temperature probe.
• Manual grain samples must be taken for the outlet grain moisture calibration, and also for measuring the
grain temperature.
For auger unloads, pull back the spring-loaded locking pin and tilt the sample chute back into the grain flow
to collect a sample. For drag unloads, pull out the spring loaded slide gate and grain will flow out of the
sample chute.
