HMI Enclosure Wiring

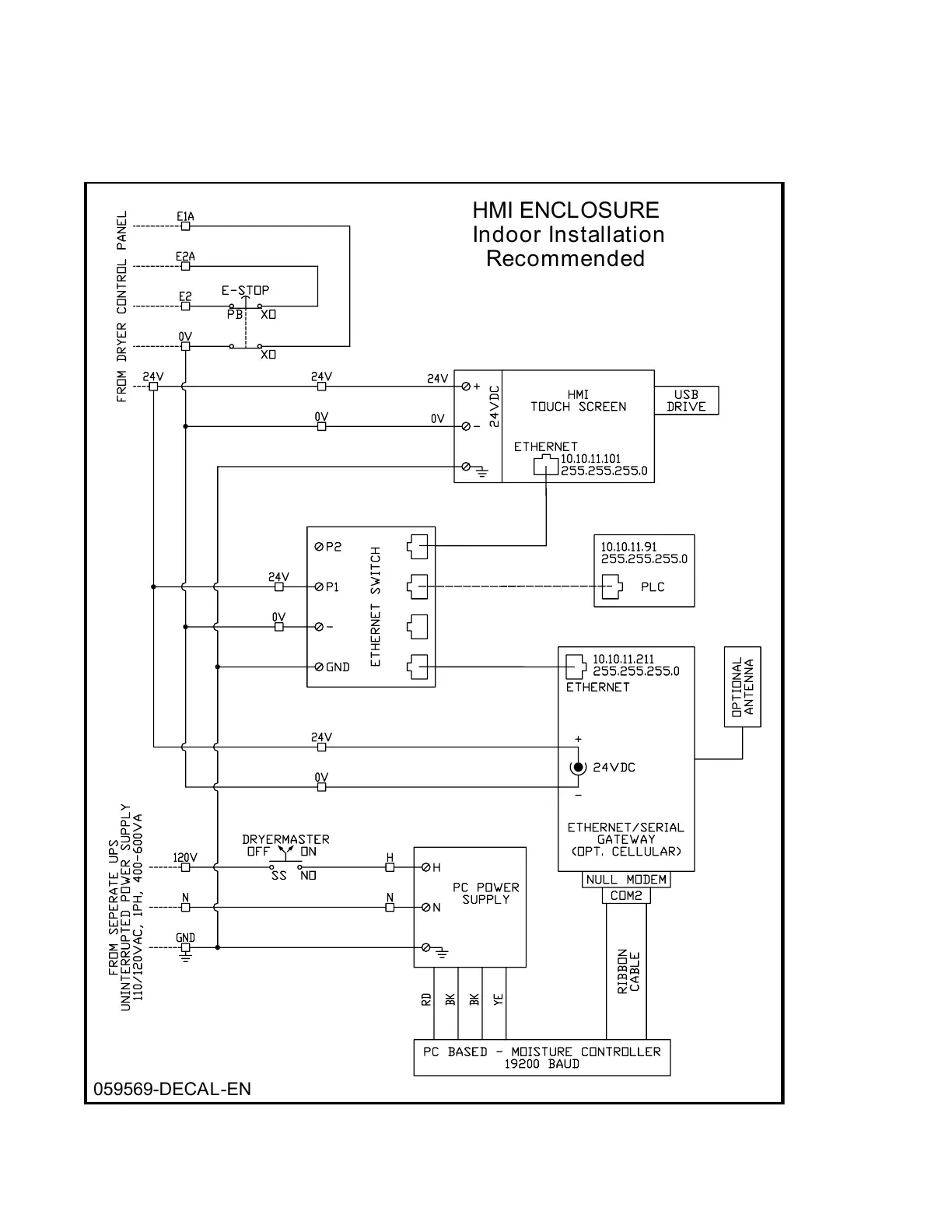

The following diagram shows electrical and Ethernet wiring entering the HMI enclosure (dashed lines).
Figure 160. HMI Wiring Diagram
059569-DECAL-EN
HMI ENCLOSURE
Indoor Installation
Recommended
