7713395 R2 111

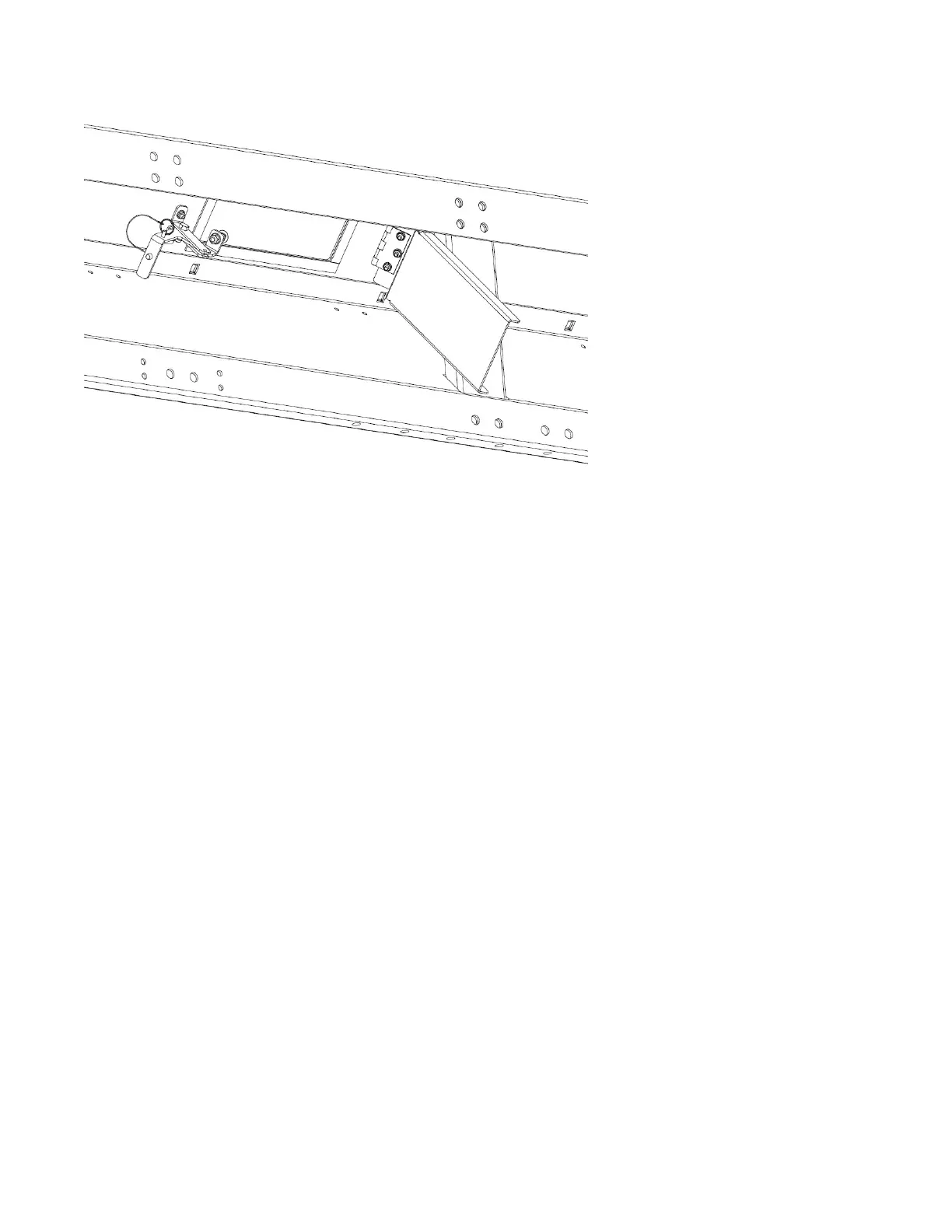

Figure 134. Emergency Door — Open
• For auger unloads, the cleanout doors can be opened to allow grain to flow by the metering rolls and
augers. (See Section 3.8 – Discharge Equipment on page 42.)
• For drag unloads, both the metering roll doors on the sides of the drag conveyors and the cleanout
doors on the drag conveyors themselves can be opened to let grain flow out. (See Section 3.8 –
Discharge Equipment on page 42.)
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 4. OPERATION
