LP Fuel — Regulator Section

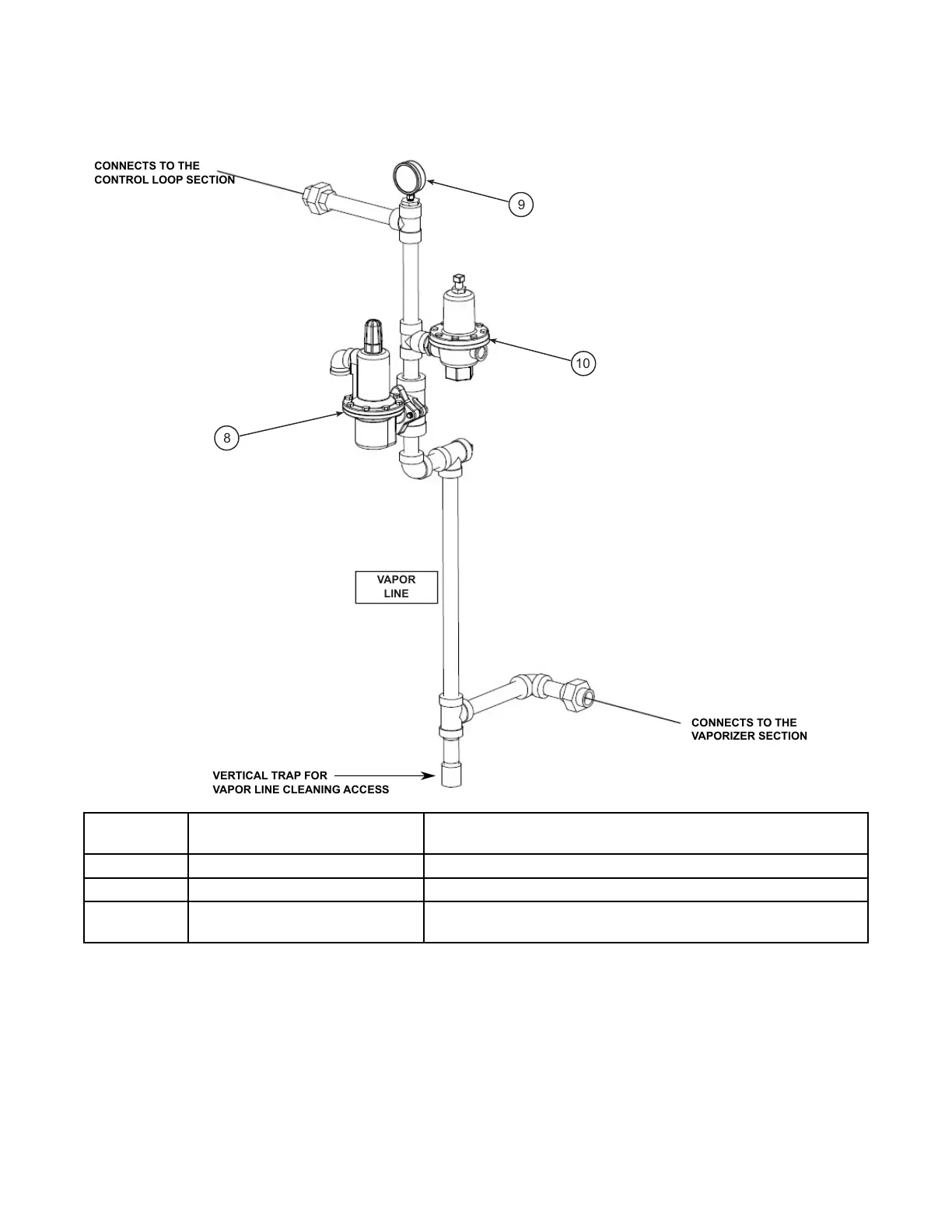

Figure 21. LP fuel — regulator section
CONNECTS TO THE
VAPORIZER SECTION
VERTICAL TRAP FOR
VAPOR LINE CLEANING ACCESS
CONNECTS TO THE
CONTROL LOOP SECTION
9
8
10
Item # in
Diagram
Component Description
8
Pressure regulator Reduces fuel pressure to the downstream sections of the fuel system.
9
Pressure gauge Indicates fuel pressure at the regulator output.
10
Overpressure relief valve (CSA Only)
Vents excessive vapor pressure that may build up downstream of the
regulator.
