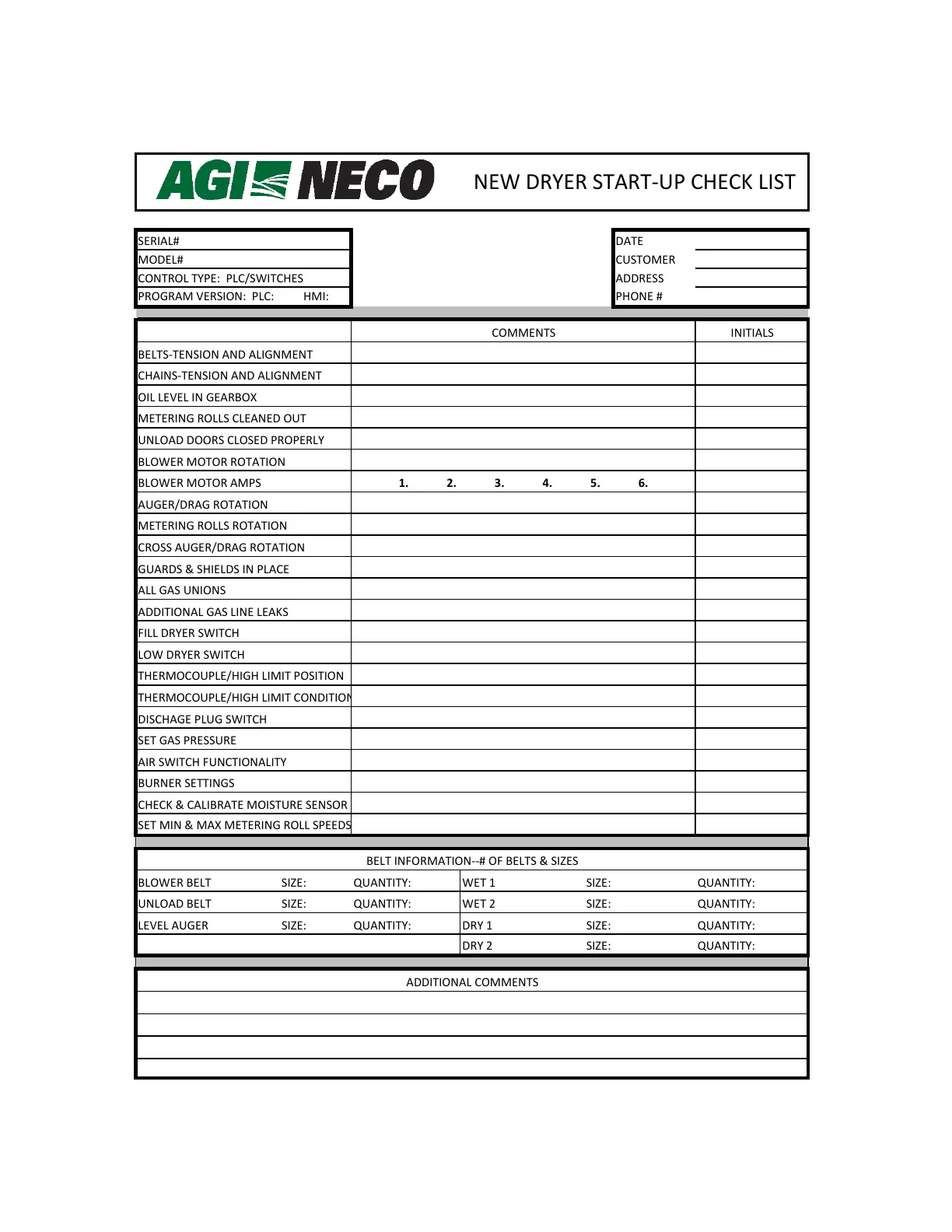

Figure 70. New dryer start-up checklist
SERIAL# DATE
MODEL# CUSTOMER
CONTROL TYPE: PLC/SWITCHES ADDRESS
PROGRAM VERSION: PLC: HMI: PHONE #
INITIALS
BELTS-TENSION AND ALIGNMENT
CHAINS-TENSION AND ALIGNMENT
OIL LEVEL IN GEARBOX
METERING ROLLS CLEANED OUT
UNLOAD DOORS CLOSED PROPERLY
BLOWER MOTOR ROTATION
BLOWER MOTOR AMPS
AUGER/DRAG ROTATION
METERING ROLLS ROTATION
CROSS AUGER/DRAG ROTATION
GUARDS & SHIELDS IN PLACE
ALL GAS UNIONS
ADDITIONAL GAS LINE LEAKS
FILL DRYER SWITCH
LOW DRYER SWITCH
THERMOCOUPLE/HIGH LIMIT POSITION
THERMOCOUPLE/HIGH LIMIT CONDITION
DISCHAGE PLUG SWITCH
SET GAS PRESSURE
AIR SWITCH FUNCTIONALITY
BURNER SETTINGS
CHECK & CALIBRATE MOISTURE SENSOR
SET MIN & MAX METERING ROLL SPEEDS
BLOWER BELT SIZE: QUANTITY: WET 1 SIZE: QUANTITY:
UNLOAD BELT SIZE: QUANTITY: WET 2 SIZE: QUANTITY:
LEVEL AUGER SIZE: QUANTITY: DRY 1 SIZE: QUANTITY:
DRY 2 SIZE: QUANTITY:
BELT INFORMATION--# OF BELTS & SIZES
NEW DRYER START-UP CHECK LIST
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 4. OPERATION
