Agilent 1200 Series Autosampler Reference Manual 121

Repairing the Autosampler 4

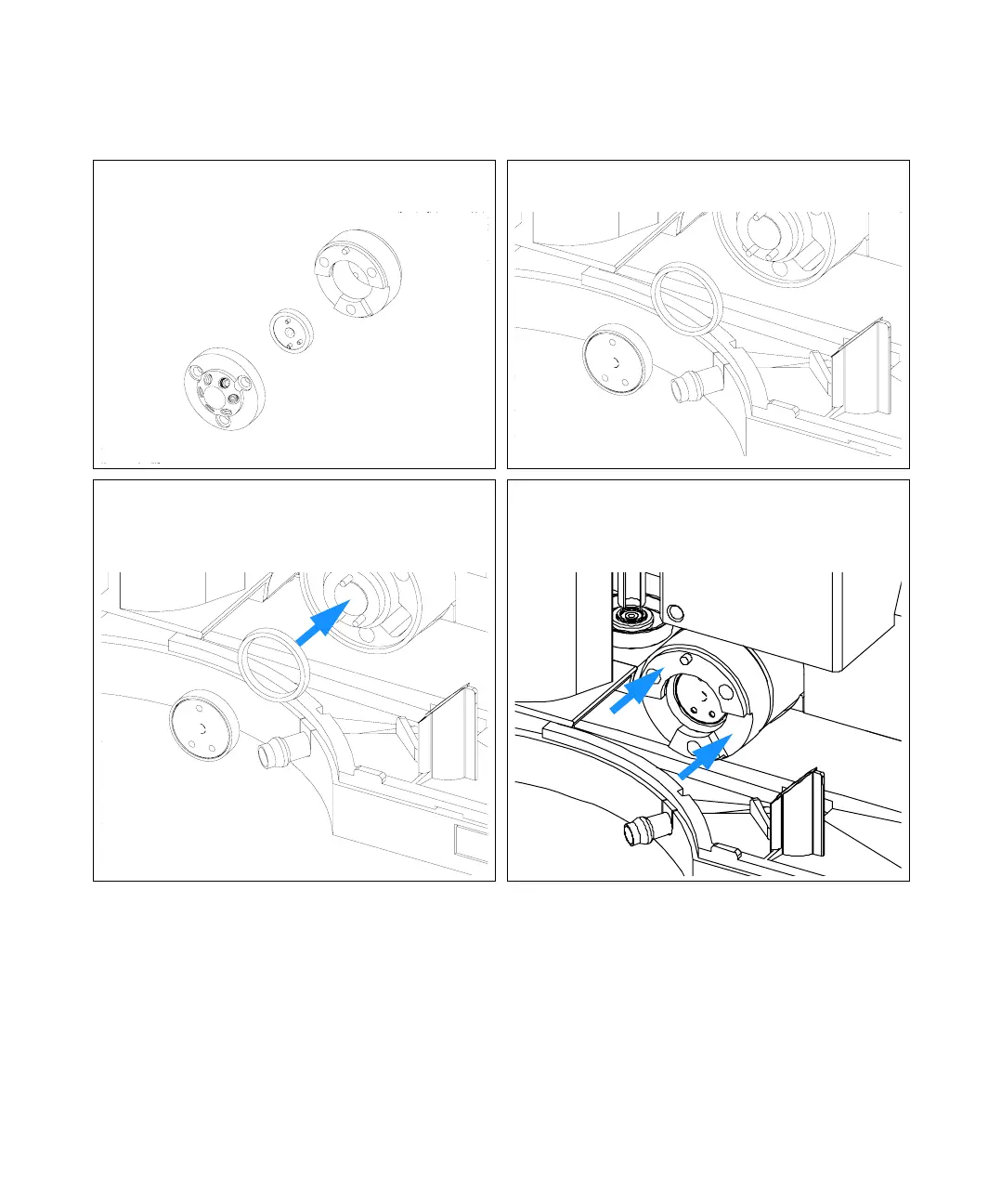

3 Remove the stator head, stator face and stator ring. 4 Remove the rotor seal and isolation seal.

5 Install the new rotor seal and isolation seal. Ensure the

metal spring inside the isolation seal faces towards the

valve body.

6 Install the stator ring with the short of the two pins facing

towards you at the 12 O’Clock position. Ensure the ring

sits flat on the valve body.
