122 Agilent 1200 Series Autosampler Reference Manual
4 Repairing the Autosampler

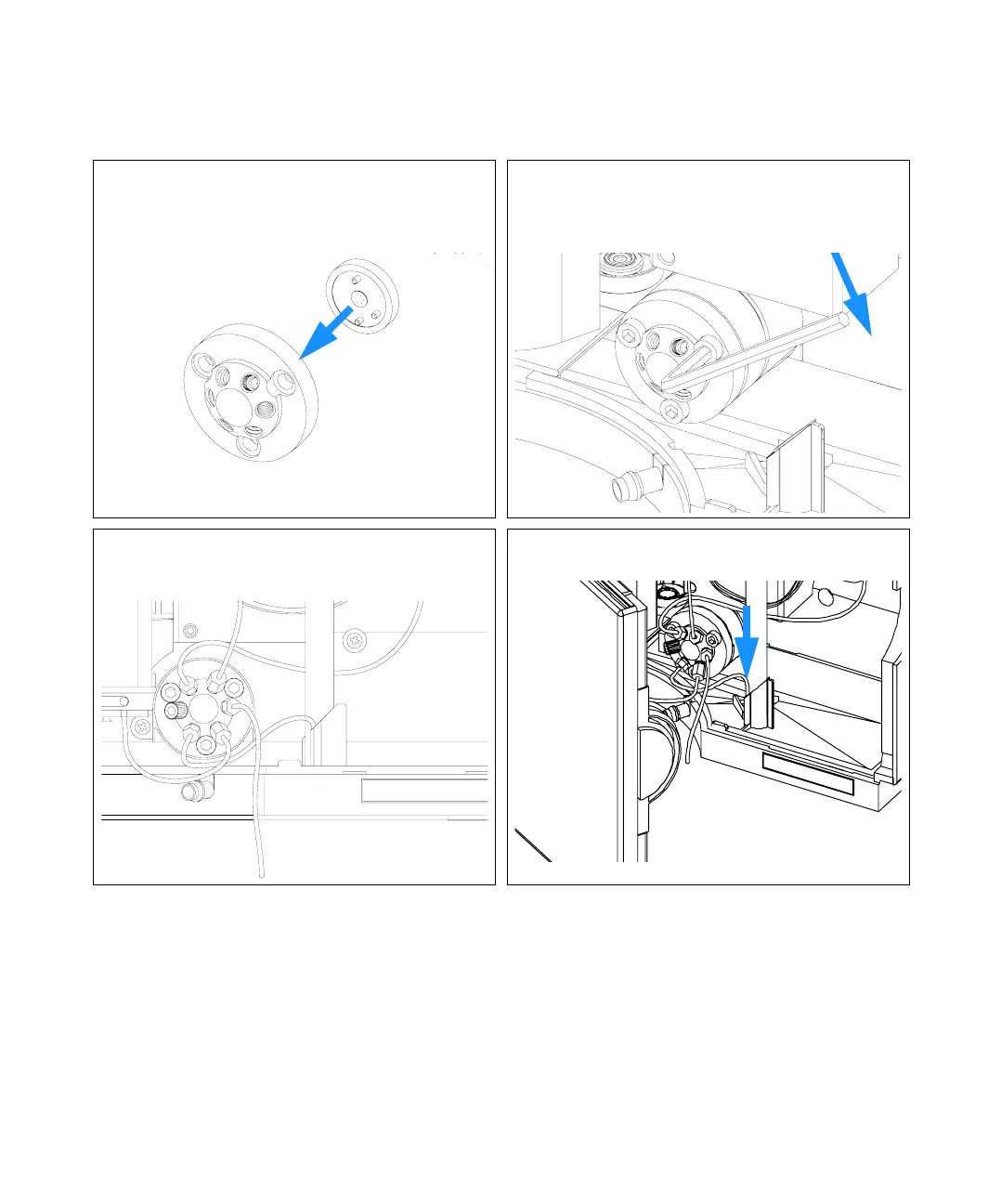

7 Place the stator face in place on the stator head. 8 Install stator head and stator face. Tighten the bolts
alternately two turns at a time until the stator head is
secure.
9 Reconnect the pump capillaries to the valve ports (see
“Hydraulic Connections”on page 35).
10 Slide the waste tube into the waste holder in the leak tray.
