20 Agilent 7890 Series Troubleshooting
2 ALS and Detector Symptoms
• Check that the tray vial racks are clean and snapped into the
tray base.
• Calibrate the system.

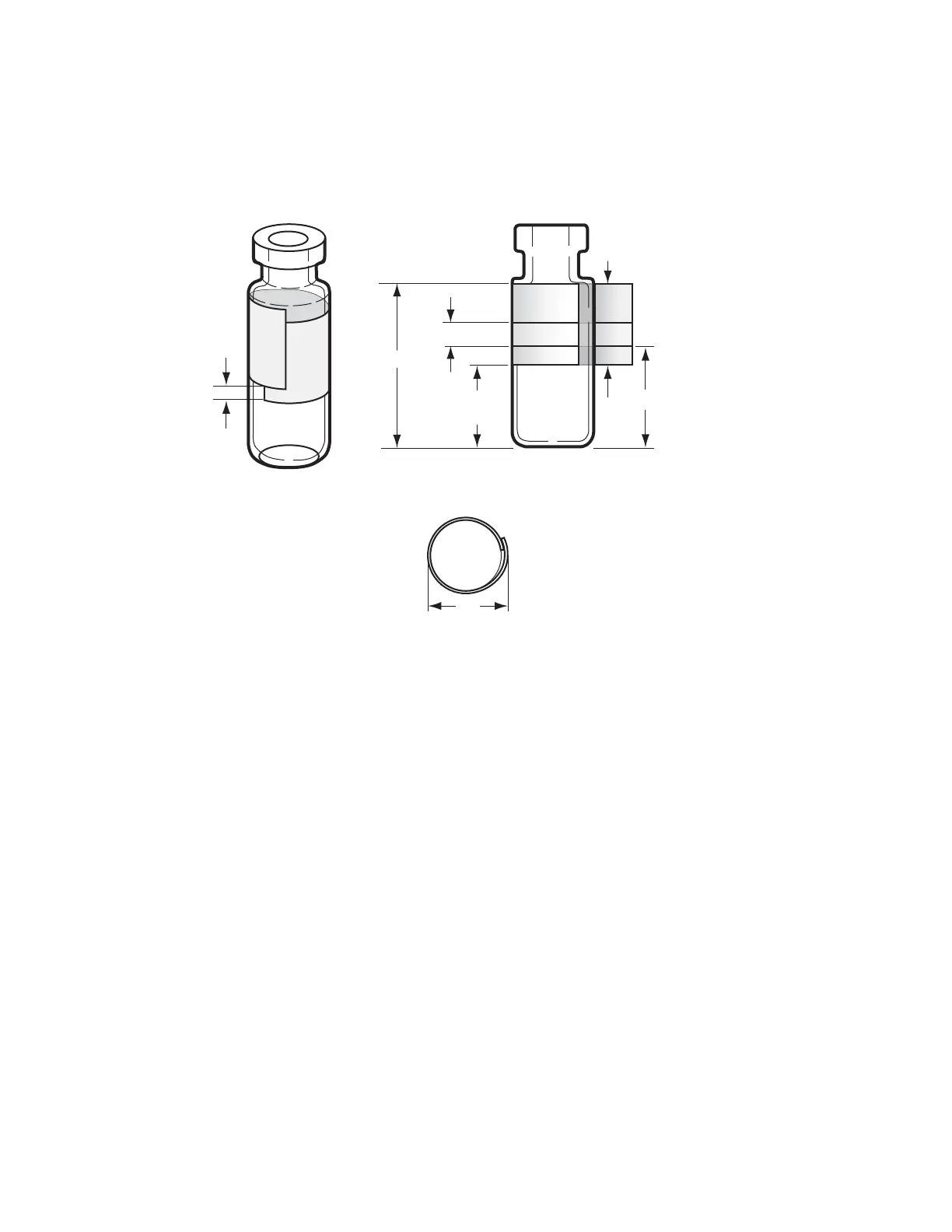

All dimensions in millimeters
Overlap mismatch
1.0 max.
Label skew
26.6 max.
3.6 min.
13.4 minimum
No label or tape
16.4 ± 0.5
13.2 maximum
Text areas are optional
Text
Bar code
Text
12.56
Maximum width
measured at overlap
