Agilent Technologies 7890 Series - To Configure the NPD

Detectors 5
Advanced Operation Manual 195
For the adjustable NPD, select one of the following from
Table 52.
To configure the NPD
In addition to the Ignore Ready and Makeup gas type, the NPD
requires the following configuration settings. Scroll to each
and enable/disable using [On/Yes] or [Off/No].

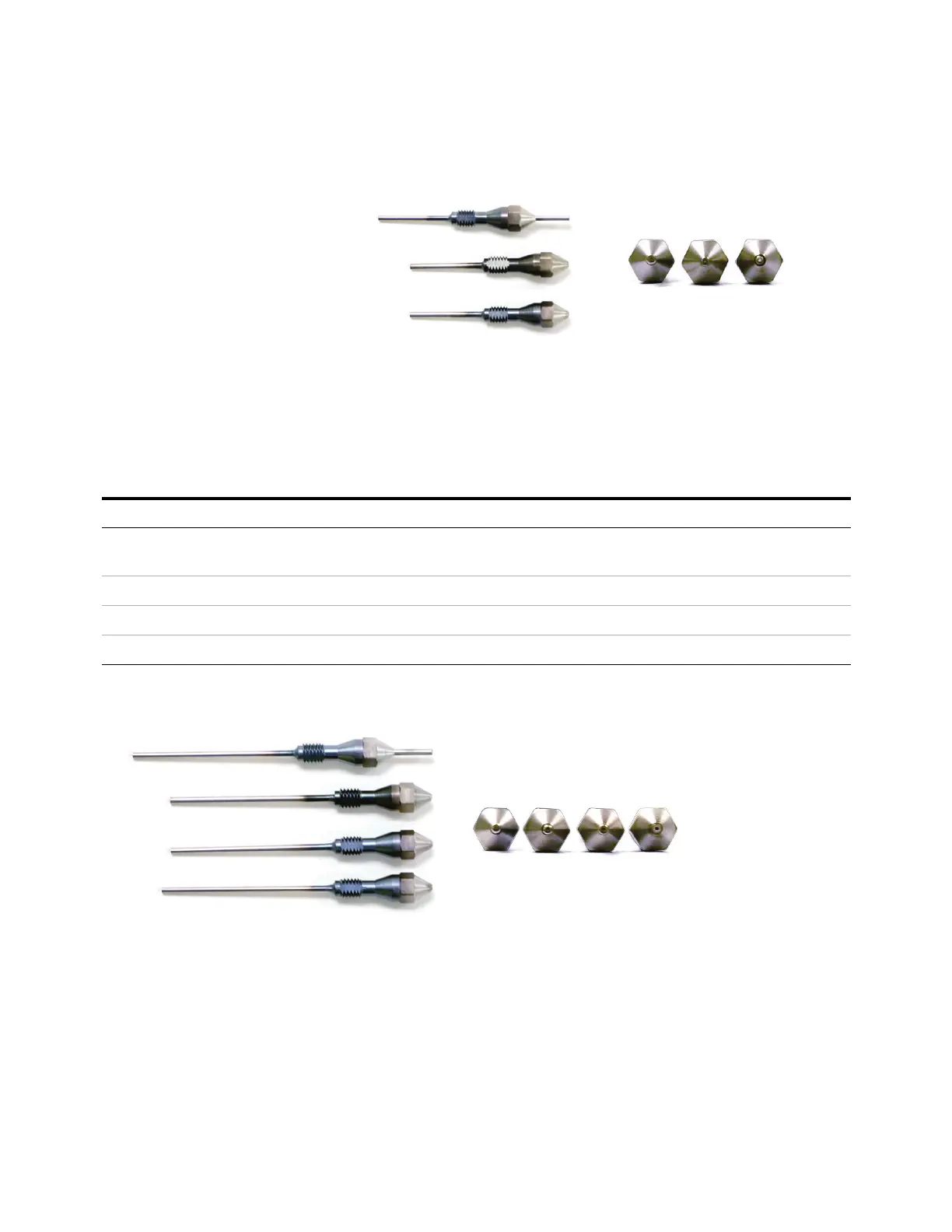

Figure 1 Capillary optimized NPD jets
1
2
3
12
3
43 mm
51.5 mm
43 mm
Tabl e 52 Jets for adaptable fittings
Figure 4 ID Jet type Part number Jet tip id Length
1 Capillary with extended jet
(recommended)
G1534-80590 0.29 mm (0.11 inch) 70.5 mm
2 Capillary 19244-80560 0.29 mm (0.011 inch) 61.5 mm
3 Capillary, high-temperature 19244-80620 0.47 mm (0.018 inch) 61.5 mm
4 Packed 18710-20119 0.46 mm (0.018 inch) 63.6 mm
Figure 2 Adaptable NPD jets
1
2
3
4
1
2
3
4
70.5 mm
61.5 mm
61.5 mm
63.6 mm
