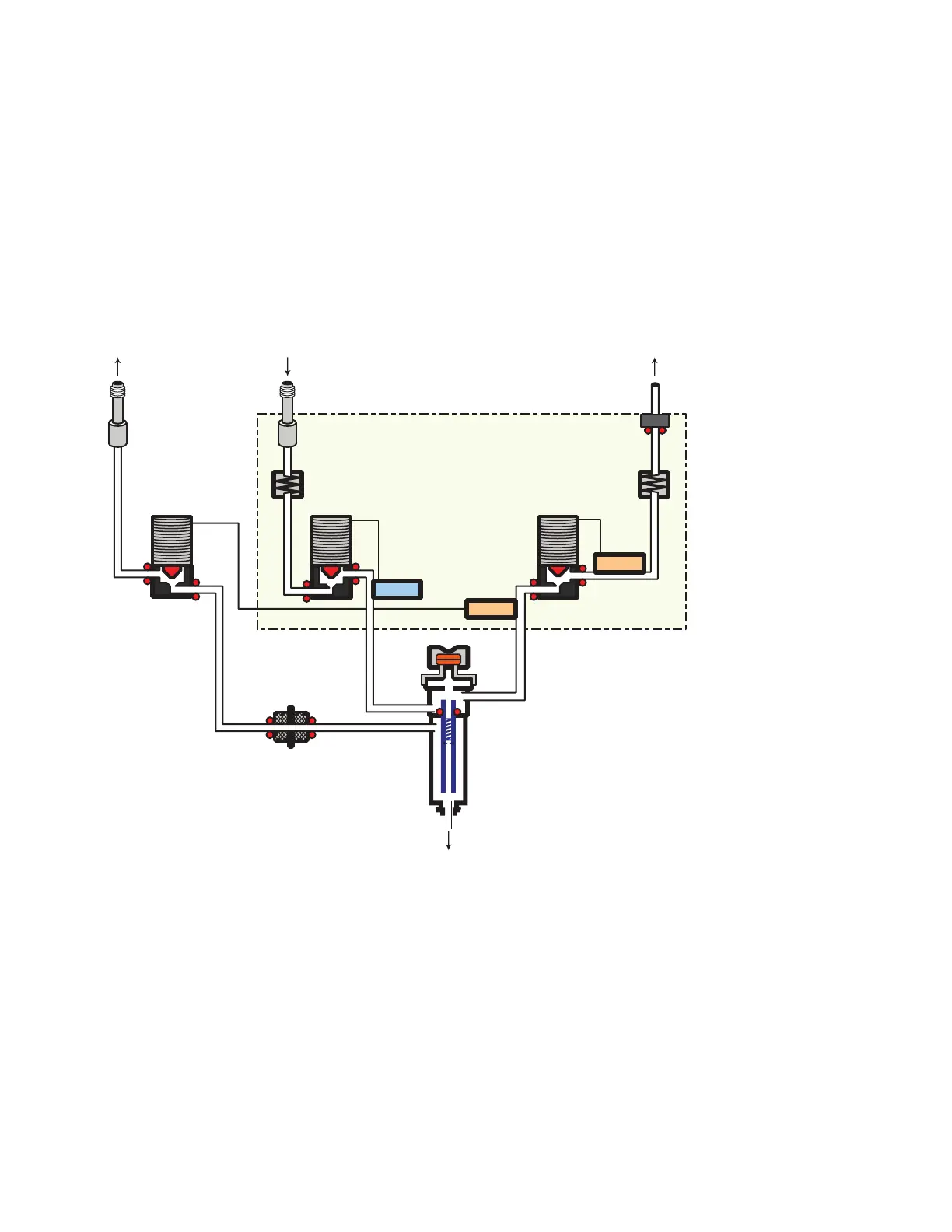

Stage 1. Sample and vent
During sampling and venting, the split valve is open. The
inlet is at Initial temperature, which is at or below the solvent
boiling point.
Solvent vapors are swept out the vent, while sample deposits
on the liner walls or packing.
Split
Carrier supply
80 PSI
Septum Purge
Valve
Frit
EPC Module
PS
Inlet Weldment
Column
Split Vent Trap
FS = Flow Sensor
PS = Pressure Sensor
Valve Valve
Frit
PS
FS
