2-6
Making Mixer Measurements
Measurement Considerations
broadband measurements. Therefore, when configuring broad-band (swept) measurements, you may need
to trade some measurement bandwidth for the ability to more selectively filter signals entering the analyzer
receiver.

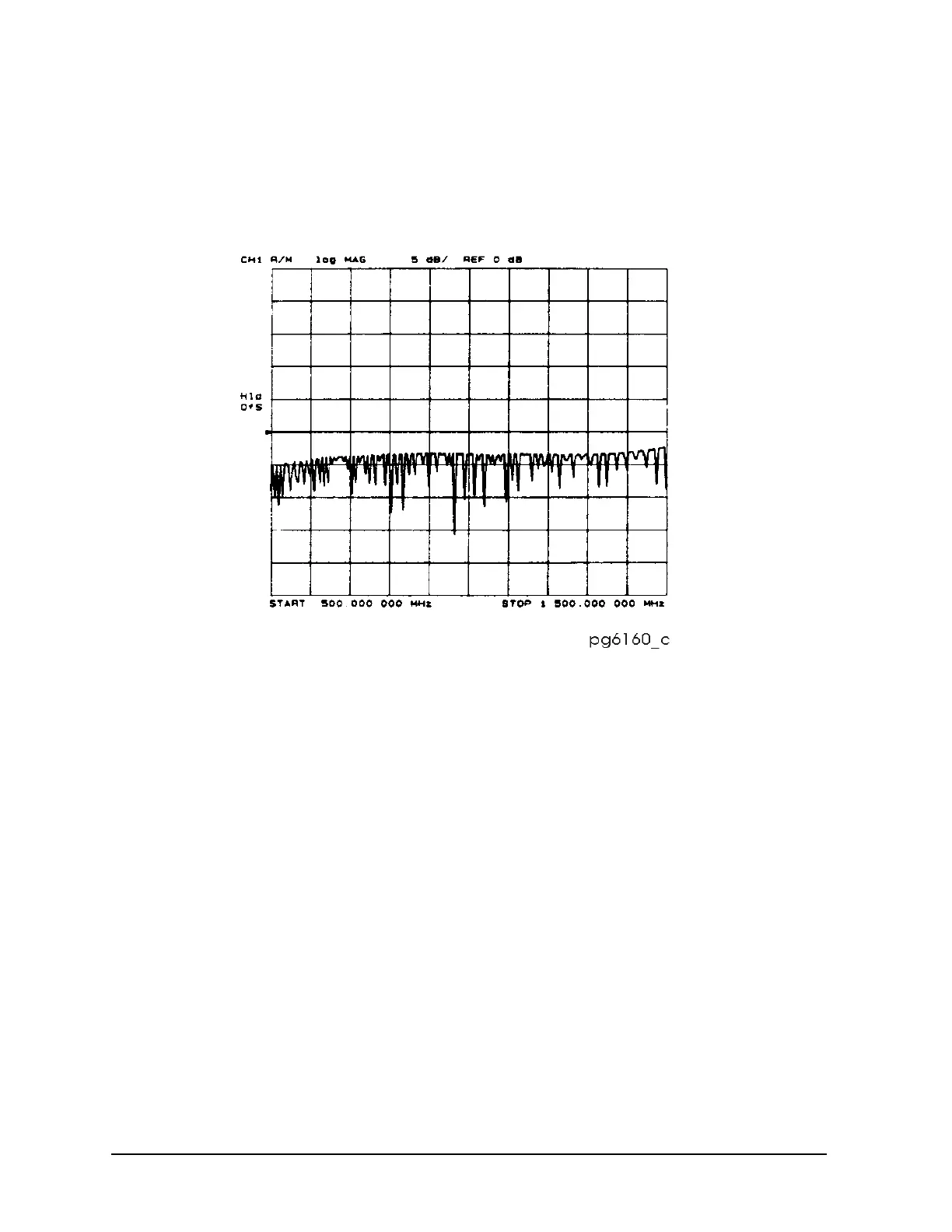

Figure 2-4 Example of Conversion Loss versus Output Frequency without Correct IF Signal Path
Filtering
