7- 29
Operating Concepts
Analyzer Display Formats
Polar Format
The softkey displays a polar format as shown in Figure 7-10. Each point on the polar format
corresponds to a particular value of both magnitude and phase. Quantities are read vectorally: the
magnitude at any point is determined by its displacement from the center (which has zero value), and the
phase by the angle counterclockwise from the positive x-axis. Magnitude is scaled in a linear fashion, with
the value of the outer circle usually set to a ratio value of 1. Since there is no frequency axis, frequency
information is read from the markers.
The default marker readout for the polar format is in linear magnitude and phase. A log magnitude marker
and a real/imaginary marker are available in the polar marker menu.

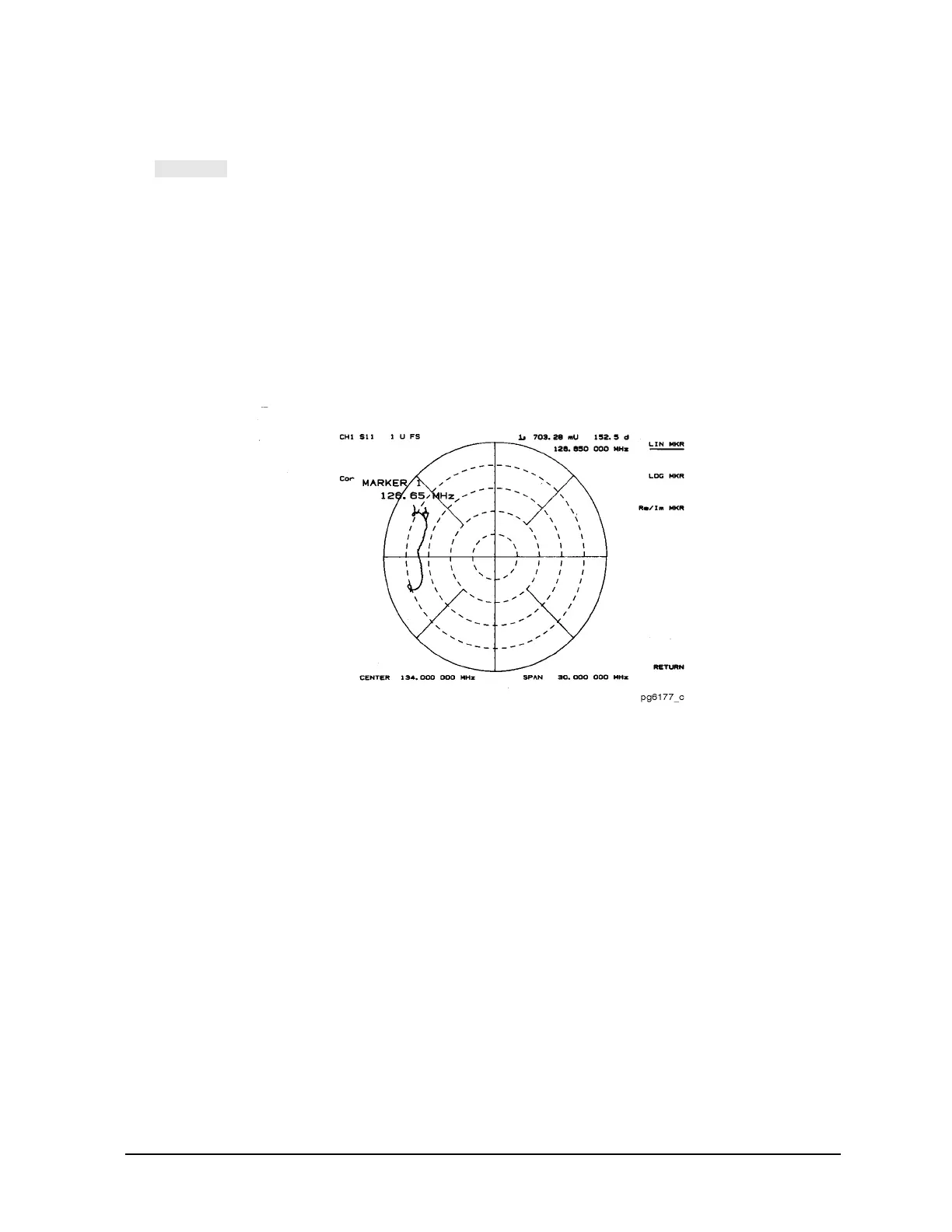

Figure 7-10 Polar Format
