Agilent Technologies 8753ET User Manual

7- 30
Operating Concepts
Analyzer Display Formats
Linear Magnitude Format
The softkey displays the linear magnitude format as shown in Figure 7-11. This is a Cartesian
format used for unitless measurements such as reflection coefficient magnitude  or transmission
coefficient magnitude  and for linear measurement units. It is used for display of conversion parameters
and time domain transform data.

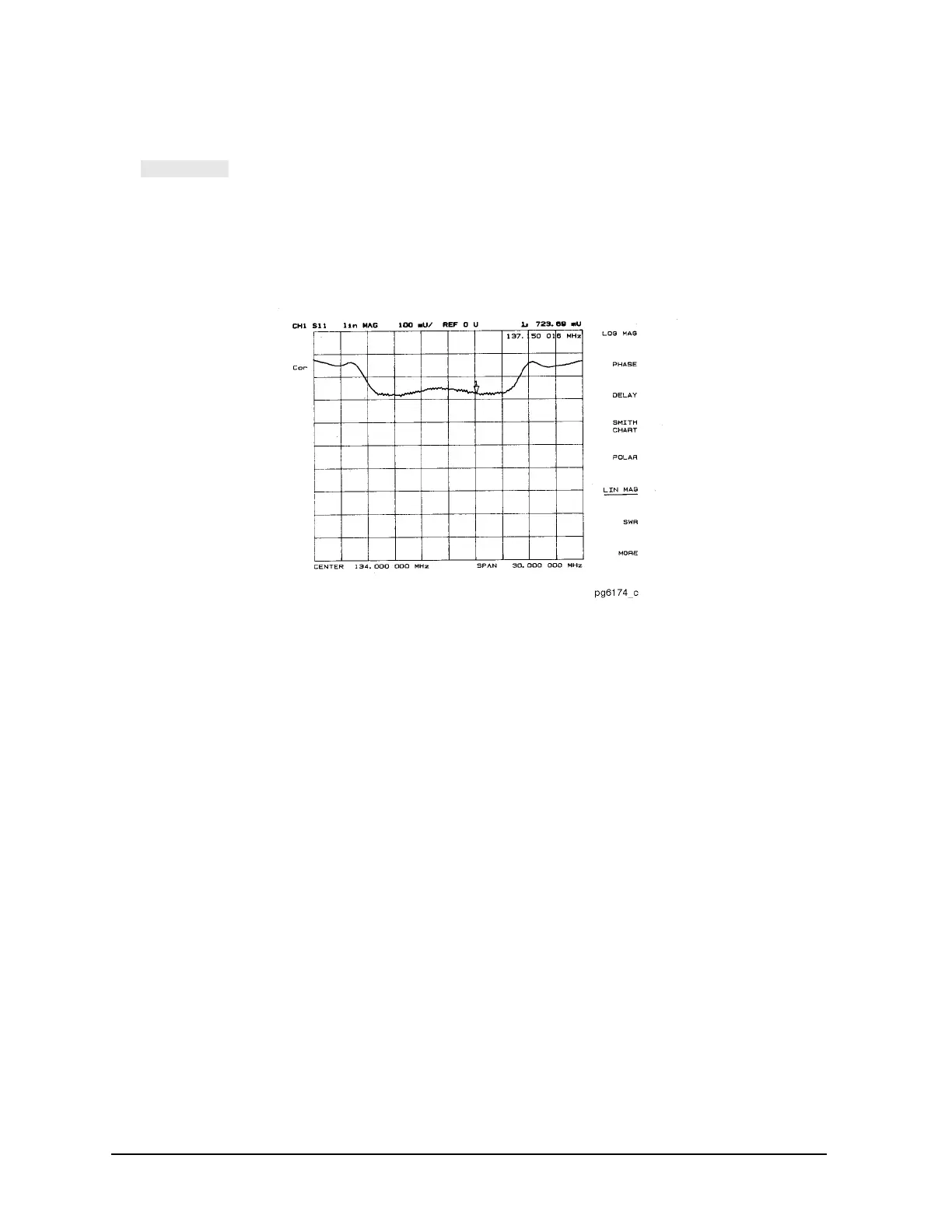

Figure 7-11 Linear Magnitude Format
LIN MAG
