4- 15
Printing, Plotting, and Saving Measurement Results
Defining a Plot Function
(see Figure 4-6), followed by .
— Select to modify the line type for the memory trace. Then enter the new
line type (see Figure 4-6), followed by .

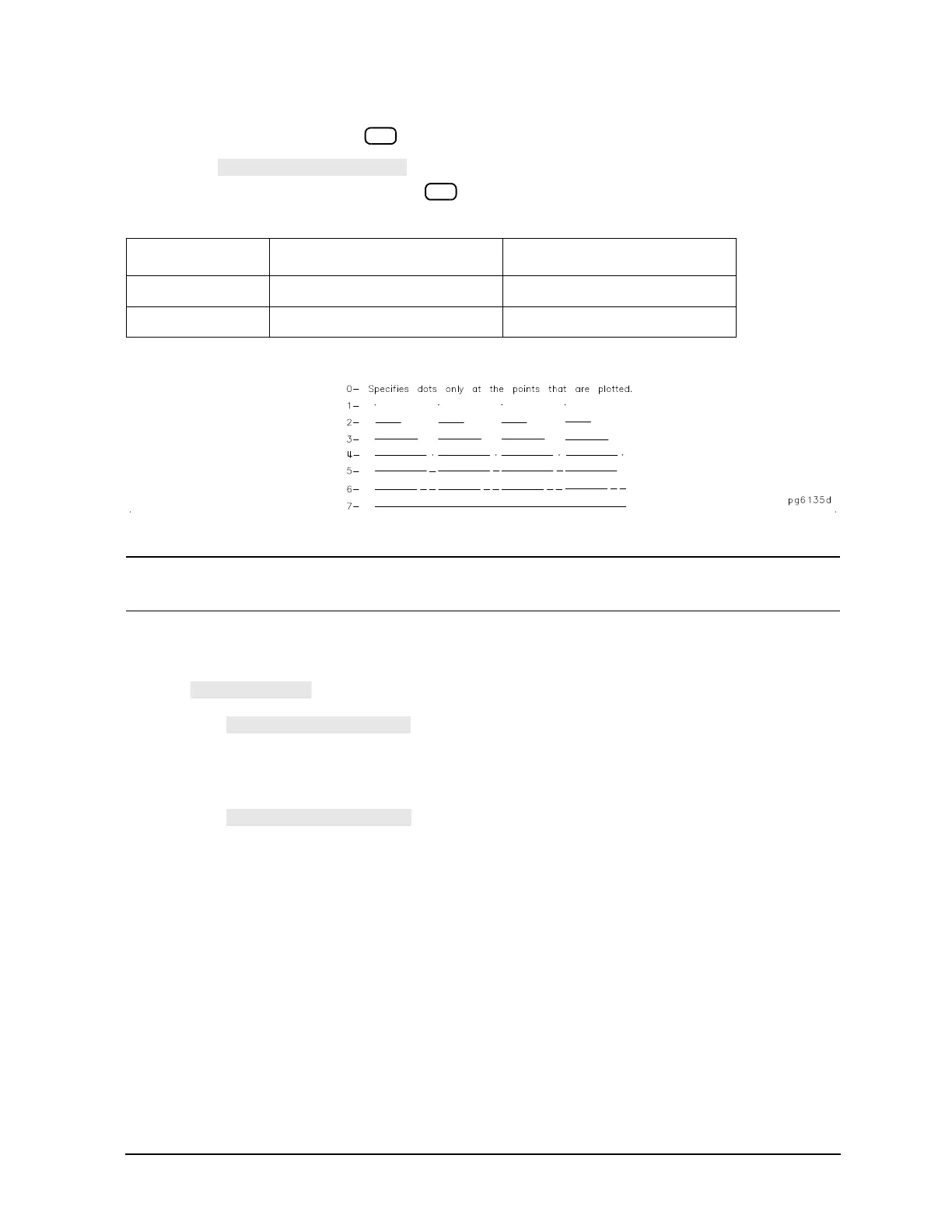

Figure 4-6 Line Types Available
NOTE You must define the line types for each measurement channel (channel 1/3 and channel
2/4).
Choosing Scale
• Press until the selection appears that you want.
❏ Choose if you want the normal scale selection for plotting. This includes
space for all display annotations such as marker values and stimulus values. The entire analyzer
display fits within the defined boundaries of P1 and P2 on the plotter, while maintaining the exact
same aspect ratio as the display.
❏ Choose if you want the outer limits of the graticule to correspond to the
defined P1 and P2 scaling point on the plotter. (Intended for plotting on preprinted rectangular or
polar forms.)
Tab le 4-4 Default Line Types for Plot Elements
Plot Elements Channel 1 Line Type Numbers Channel 2 Line Type Numbers
Data Trace 7 7
Memory Trace 7 7
