Making Measurements
Measuring Magnitude and Insertion Phase Response
Measuring Magnitude and Insertion Phase Response
This measurement example shows you how to measure the maximum amplitude of a surface acoustic wave
(SAW) filter and then how to view the measurement data in the phase format, which provides information
about the phase response.
Measuring the Magnitude Response
1. Connect your test device as shown in Figure 1-2.

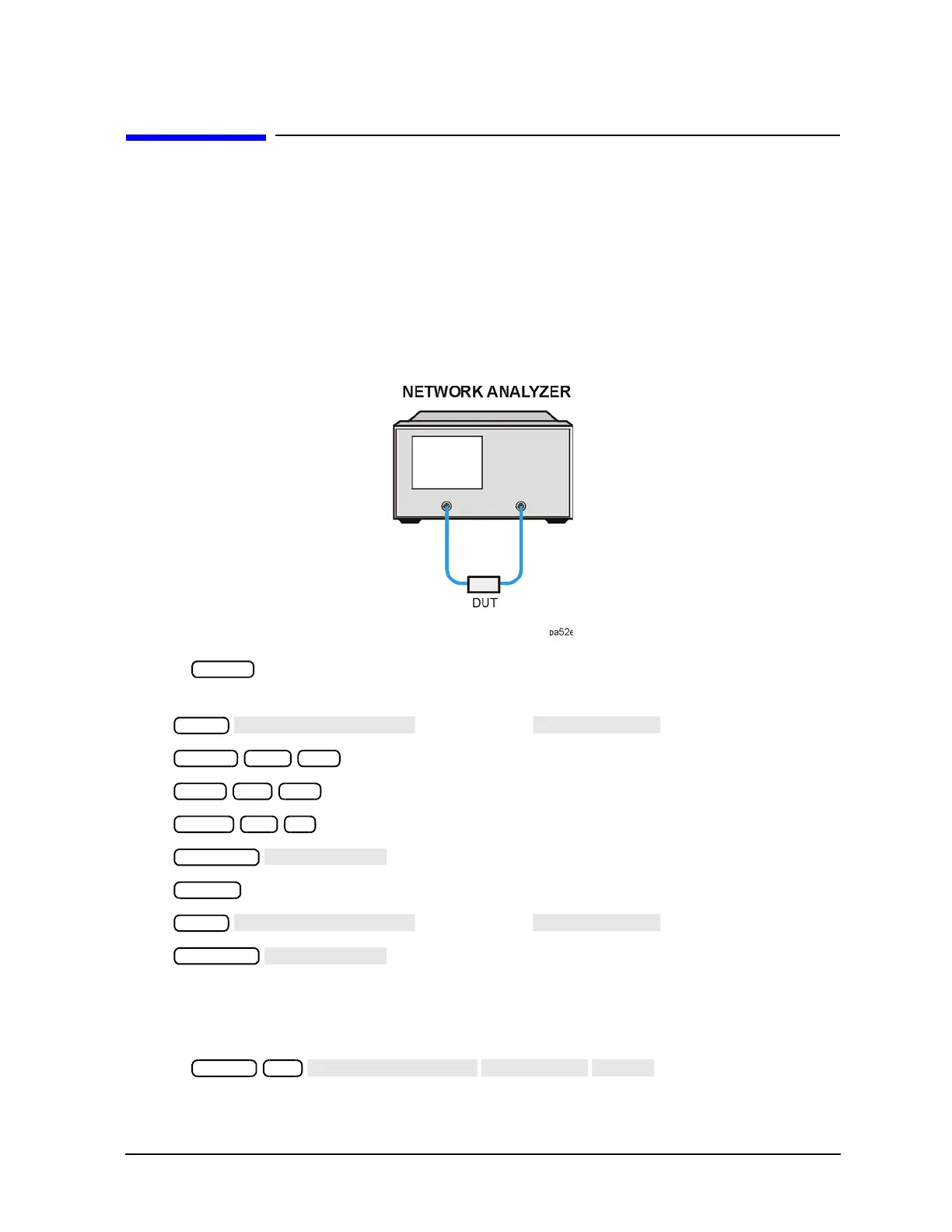

Figure 1-2 Device Connections for Measuring a Magnitude Response
2. Press and choose the measurement settings. For this example the measurement parameters
are set as follows:
or on ET models:
or on ET models:
You may also want to select settings for the number of data points, averaging, and IF bandwidth.
3. Remove the device and connect the power cables together (thru) and perform a response calibration
using the following key presses.
Press .
If the channels are coupled (the default condition), this calibration is valid for both channels.
