1- 25
Making Measurements
Using Markers
NOTE Using will also affect marker search and positioning functions
when the value entered in a search or positioning function does not exist as a measurement
point. The marker will be positioned to the closest adjacent point that satisfies the search or
positioning value.
To Activate Display Markers
• To switch on marker 1 and make it the active marker, press:
The active marker is identified on the analyzer display with the following symbol:
The active marker stimulus value is displayed in the active entry area. You can modify the stimulus value
of the active marker, using the front panel knob or numerical keypad. All of the marker response and
stimulus values are displayed in the upper right corner of the display.

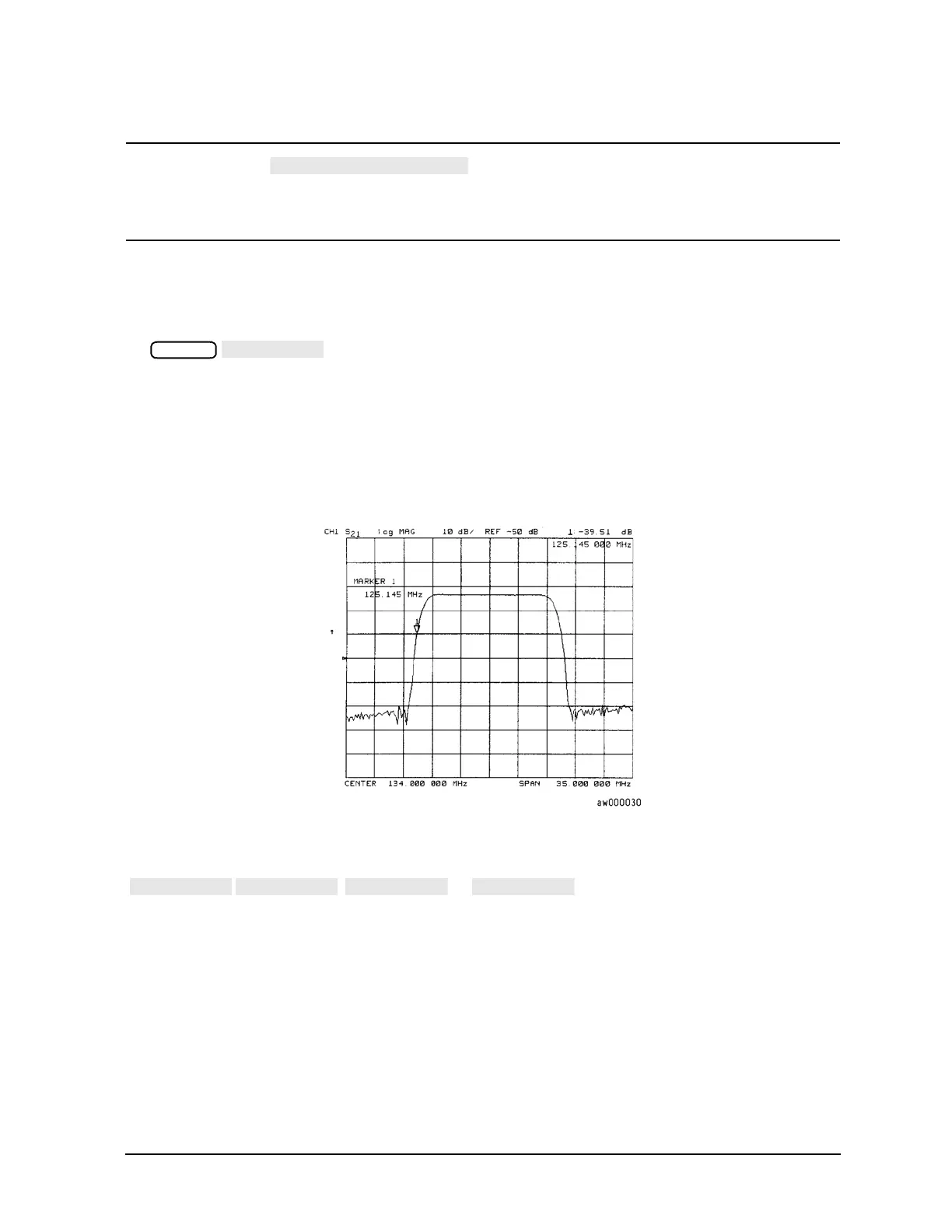

Figure 1-12 Active Marker Control Example
To switch on the corresponding marker and make it the active marker, press:
, , or
All of the markers, other than the active marker, become inactive and are represented on the analyzer
display as . The active and inactive markers are shown in
Figure 1-13.
