Agilent Technologies 8753ET User Manual

2-48
Making Mixer Measurements
Isolation Example Measurements

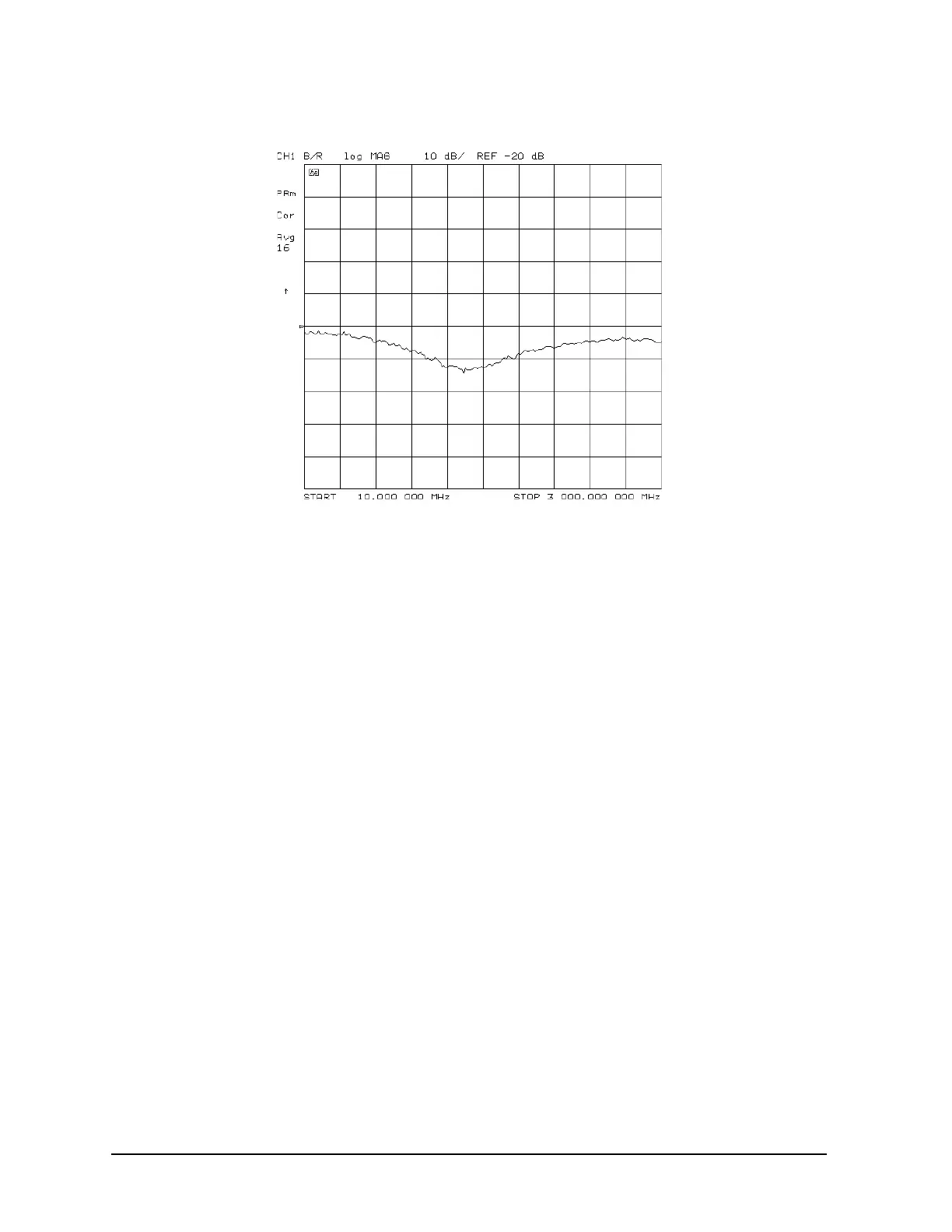

Figure 2-38 Example Mixer RF Feedthrough Measurement
You can measure the IF to RF isolation in a similar manner, but with the following modifications:
• Use the analyzer source as the IF signal drive.
• View the leakage signal at the RF port.
