Making Measurements
Measuring Amplifiers
Making High Power Measurements with Option 014
(ES Analyzers Only)
Analyzers equipped with Option 014 can be configured to measure high power devices. This ability is useful
if the required input power for a device under test is greater than the analyzer can provide or if the maximum
output power from an amplifier under test exceeds safe input limits for a standard analyzer. This section
describes three configurations for performing high power measurements.

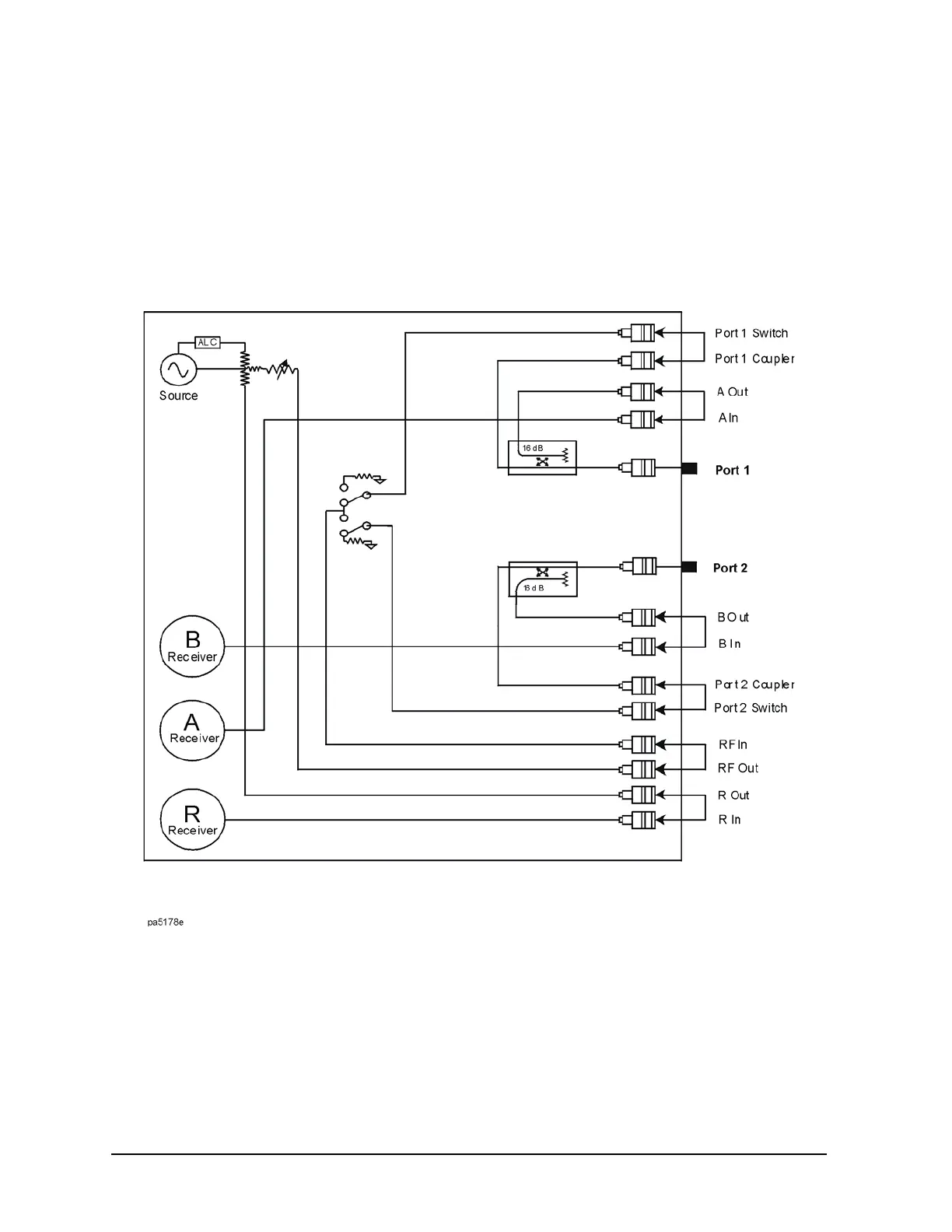

Figure 1-52 Internal Signal Paths of the Option 014 Analyzer
