Replaceable Parts List
Front View Over 8.5 GHz Options (Analog)

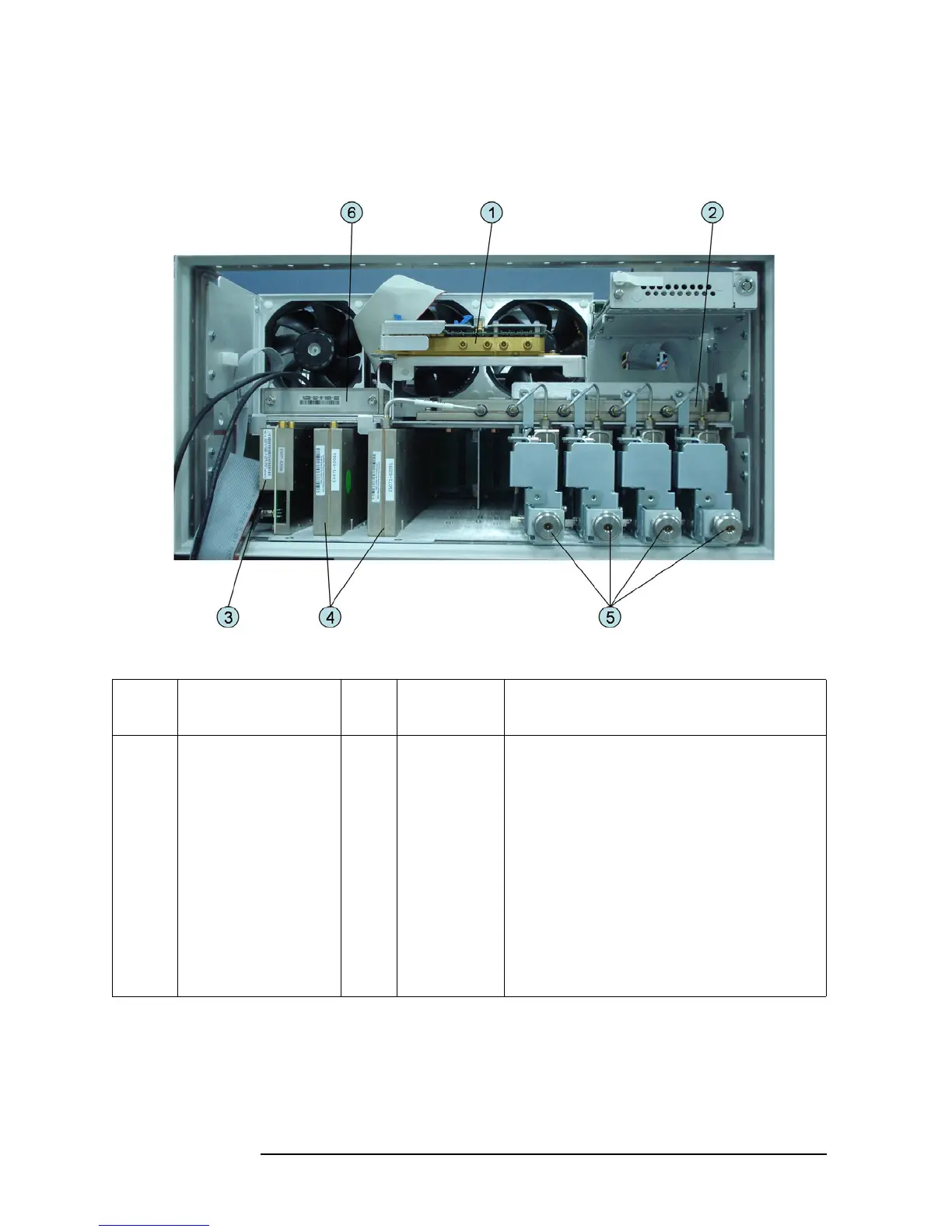

Figure 5-9 Front View Over 8.5 GHz Options (Analog)
Table 5-9 Front View Over 8.5 GHz Options (Analog)
Ref.
Desig.
Agilent Part Number Qty. Abbreviation Description
1 5087-7747 1 IMX IMIX
2 E5071-61184 (A4) 1 DIS DISTRIBUTOR MODULE
3 E5071-62086 (A6)
E5071-69086
1
1
DBL TESTED LEVEL DOUBLER MODULE
TESTED LEVEL DOUBLER MODULE
(Exchange)
4 E5071-62091 (A1)
E5071-69091
2
2
SYN SYNTHESIZER BOARD
SYNTHESIZER BOARD (Exchange)
5 See Table 5-29 1 RCV RECEIVER MODULE ASSEMBLY
6 33321-60082 1 ATT ATTENUATOR 60 dB 20 GHz, PB FREE
