Replacement Procedure
RF Switch and Distributor Module Replacement for 2-Port model (A84)

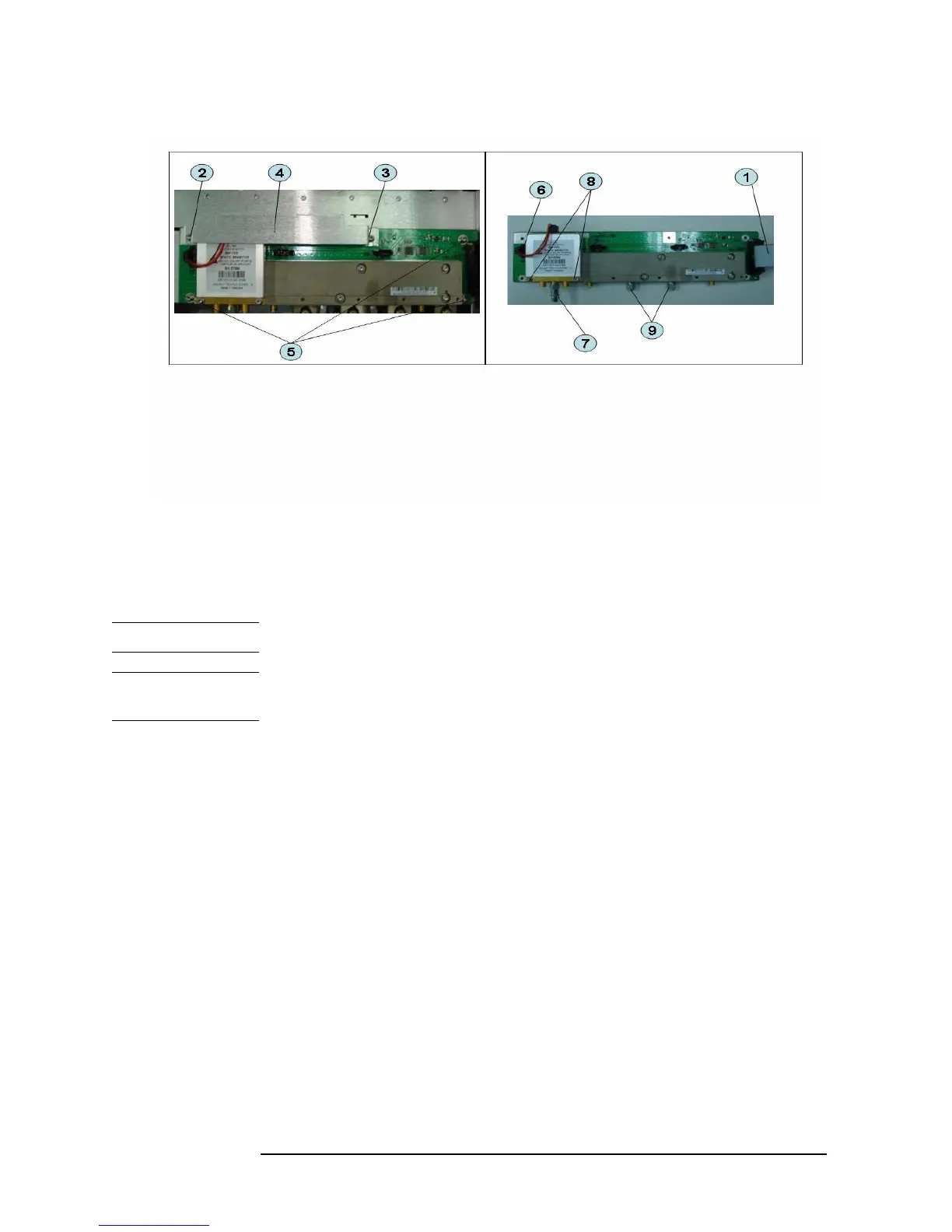

Figure 6-26 RF Switch and Distributor Module Replacement for 2-port model
Replacement Procedure
Step 1. Replace the switch and distributor module by inverse procedure of removal.
NOTE Be careful screw (item 2) and screw (item 3) are different.
NOTE Fasten the semi rigid cables, attenuator and terminations using a torque wrench or torque
driver set for replacement.
