Troubleshooting
How to exit from the E5071C Measurement View
4. Troubleshooting
How to exit from the E5071C Measurement View
You need to exit from the E5071C Measurement View to perform some troubleshooting.
The following is the procedure to exit from the E5071C Measurement View.
Step 1. Connect the mouse and external keyboard to the connectors on the E5071C rear panel.
Step 2. Turn the instrument on.
Step 3. Press key.
Step 4. Click Service Menu - Service Function. Password dialog box opens as shown in Figure
4-1.

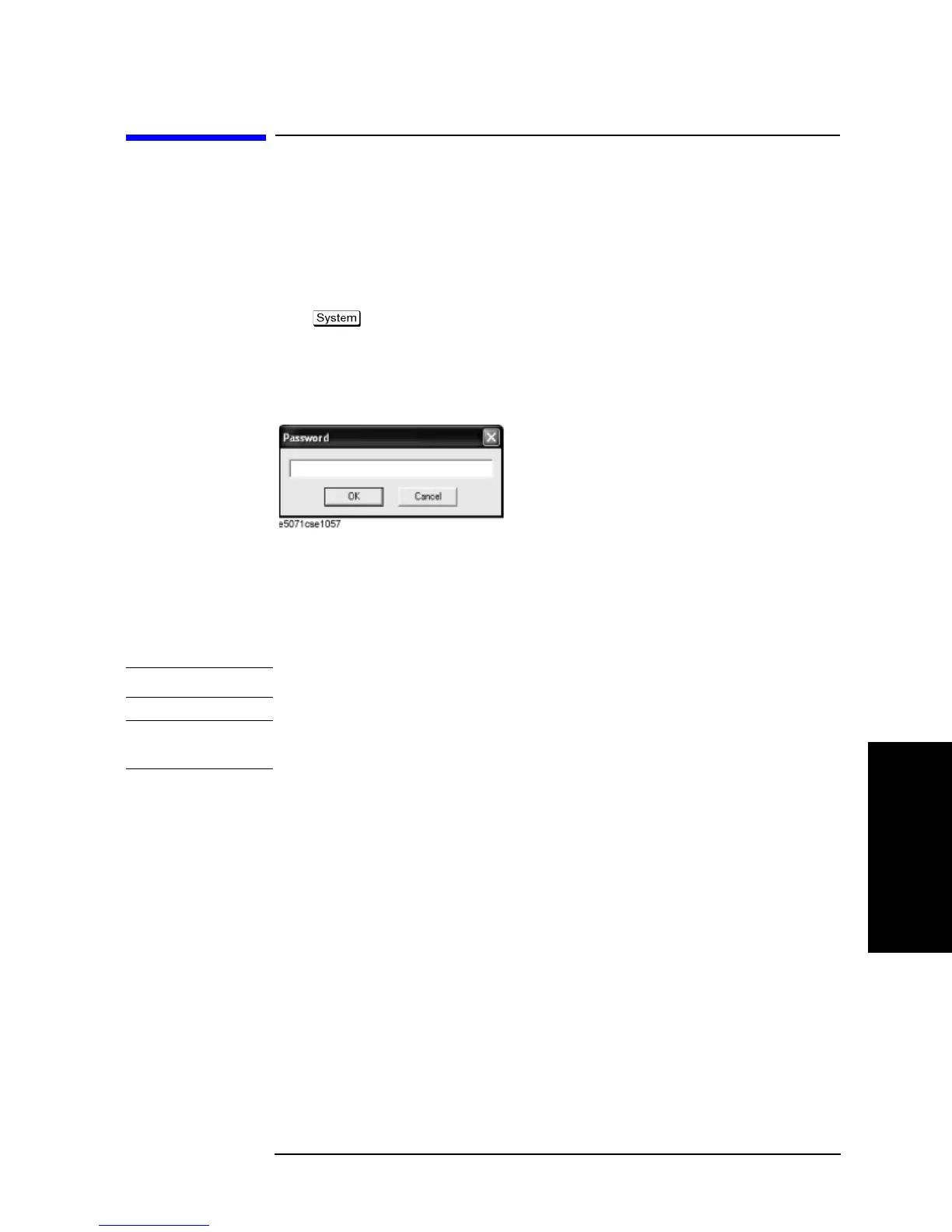

Figure 4-1 Password dialog box
Step 5. Enter the password kid in the Password box and then click "OK" button.
Step 6. Click Exit in Service Functions Menu. Then the E5071C exit the Measurement View,
then.windows desktop screen appears with 3 icons (Network Analyzer, Recycle Bin, and
Internet Explorer.)
NOTE If you wish to return to the Measurement View, double-click "Network Analyzer" icon.
NOTE If you need to shut down the E5071C and again turn on, perform in accordance with the
following procedure.
a. To get "Start" menu bar displayed, move the pointer to the bottom of the screen with
mouse.
b. Click "Start" and "Turn off Computer" in the pull down menu. "Turn off Computer"
dialog box opens.
c. Click "Turn off" button in the dialog box.
