Agilent Technologies E5071C ENA - T2 Switch (up to 8.5 Ghz Options) Assembly

Chapter 5 143
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
T2 Switch (Up to 8.5 GHz Options) Assembly

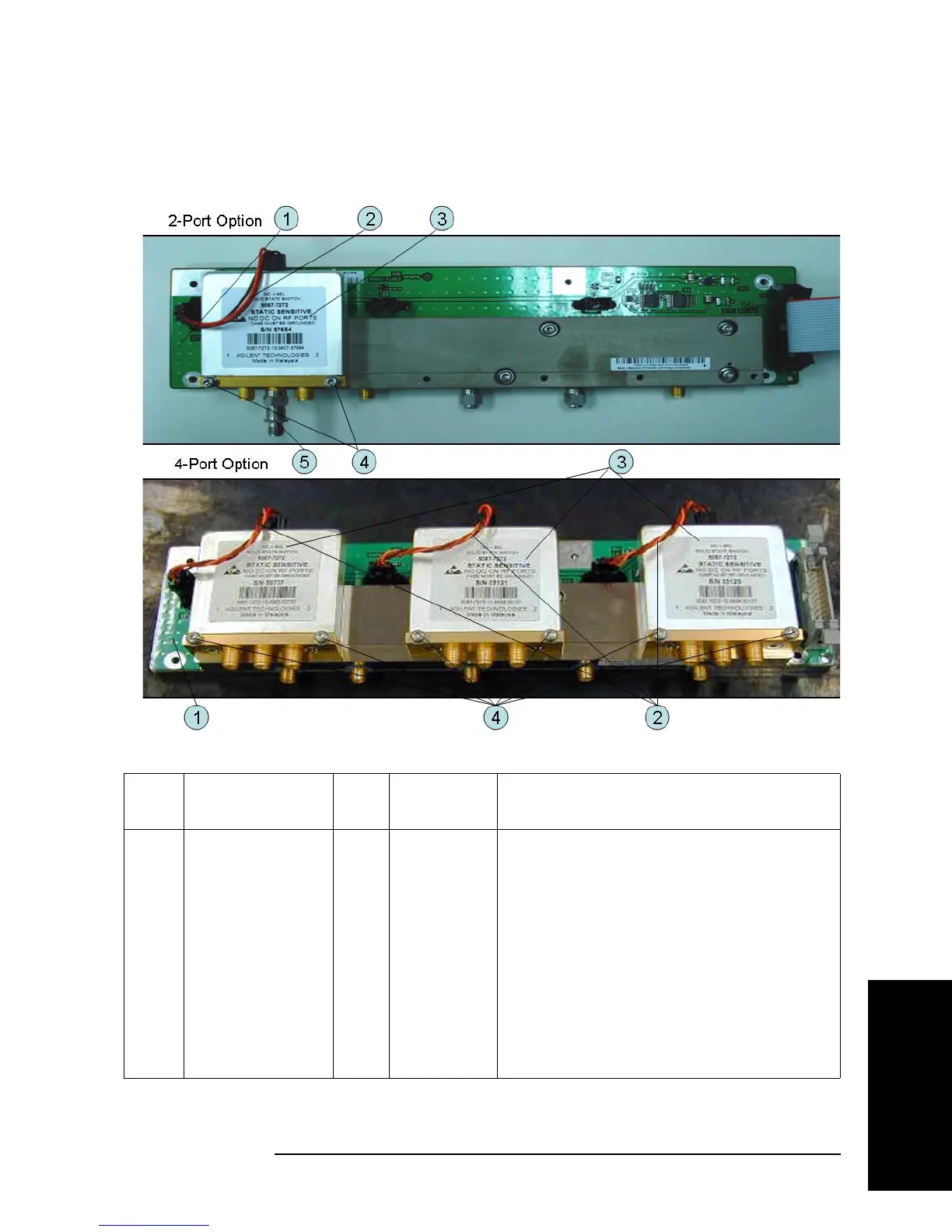

Figure 5-26 T2 Switch Opt. (Up to 8.5 GHz Options) Assembly
Table 5-28 T2 Switch (Up to 8.5 GHz Options) Assembly
Ref.
Desig.
Agilent Part
Number
Qty. Abbreviation Description
1 E5071-61184 (A4) 1 DIS DISTRIBUTOR MODULE
2 E5071-61619 1 WIRE ASSY (Opt.2xx)
3 WIRE ASSY (Opt.4xx)
3 5087-7746 1 T2-SW SWITCH RF SPDT (Opt.2xx)
3 SWITCH RF SPDT (Opt.4xx)
4 0515-1410 2 SCREW-MACH M3.0 x L20 PN T10 (Opt.2xx)
6 SCREW-MACH M3.0 x L20 PN T10 (Opt.4xx)
5 0955-0301 1 ATTENUATOR (Opt.2xx)
