Agilent Technologies E5071C ENA - Replacement Procedure

218 Chapter 6
Replacement Procedure
RF Switch and Distributor Module Replacement for 4-Port model (T2-SW and
A4)

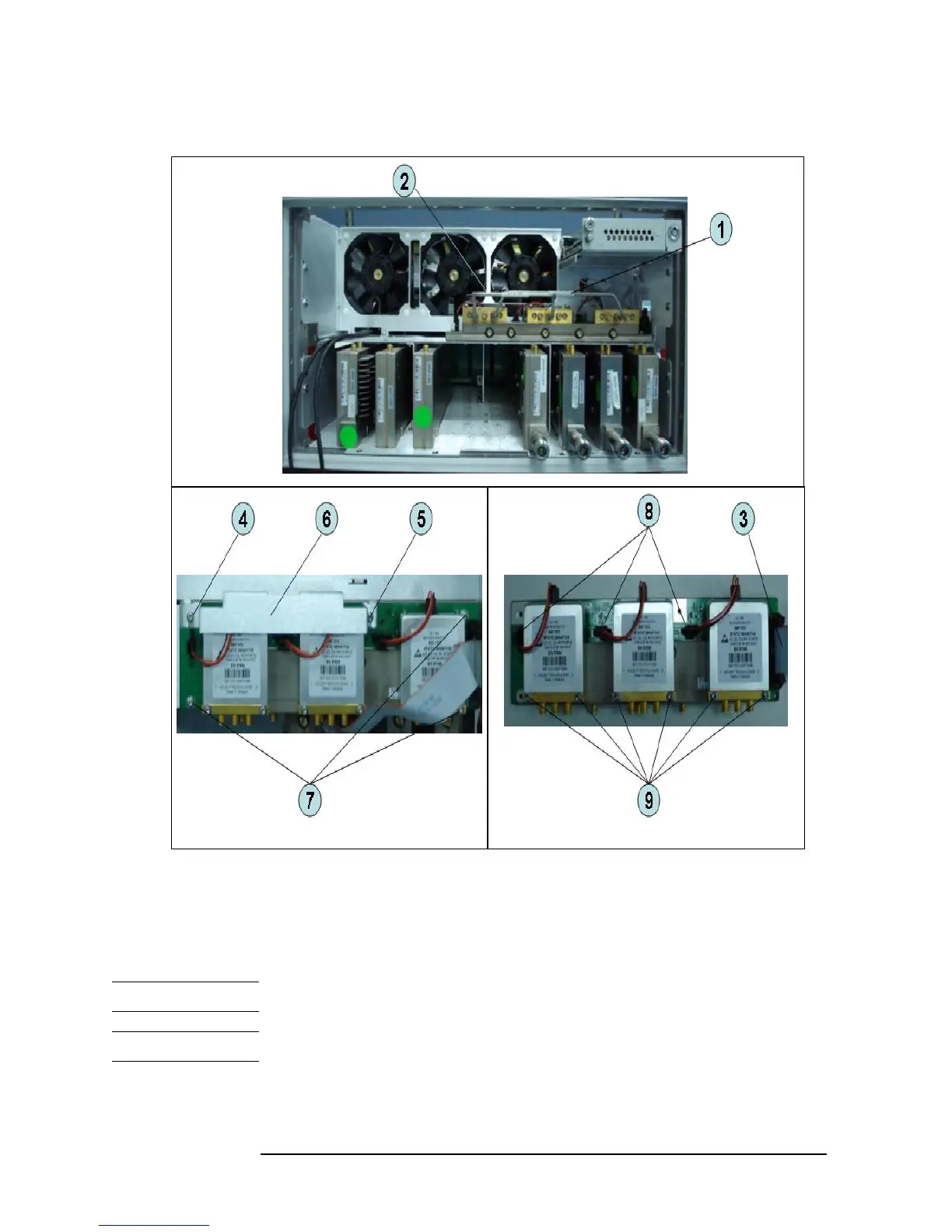

Figure 6-27 RF Switch and Distributor Module Replacement for 4-port model
Replacement Procedure
Step 1. Replace the switch by inverse procedure of removal.
NOTE Be careful screw (item 4) and screw (item 5) are different.
NOTE Fasten the semi rigid cables using a torque wrench or torque driver set for replacement.
